Atdec ADBS-2x2-17MFB Installation Manual page 2

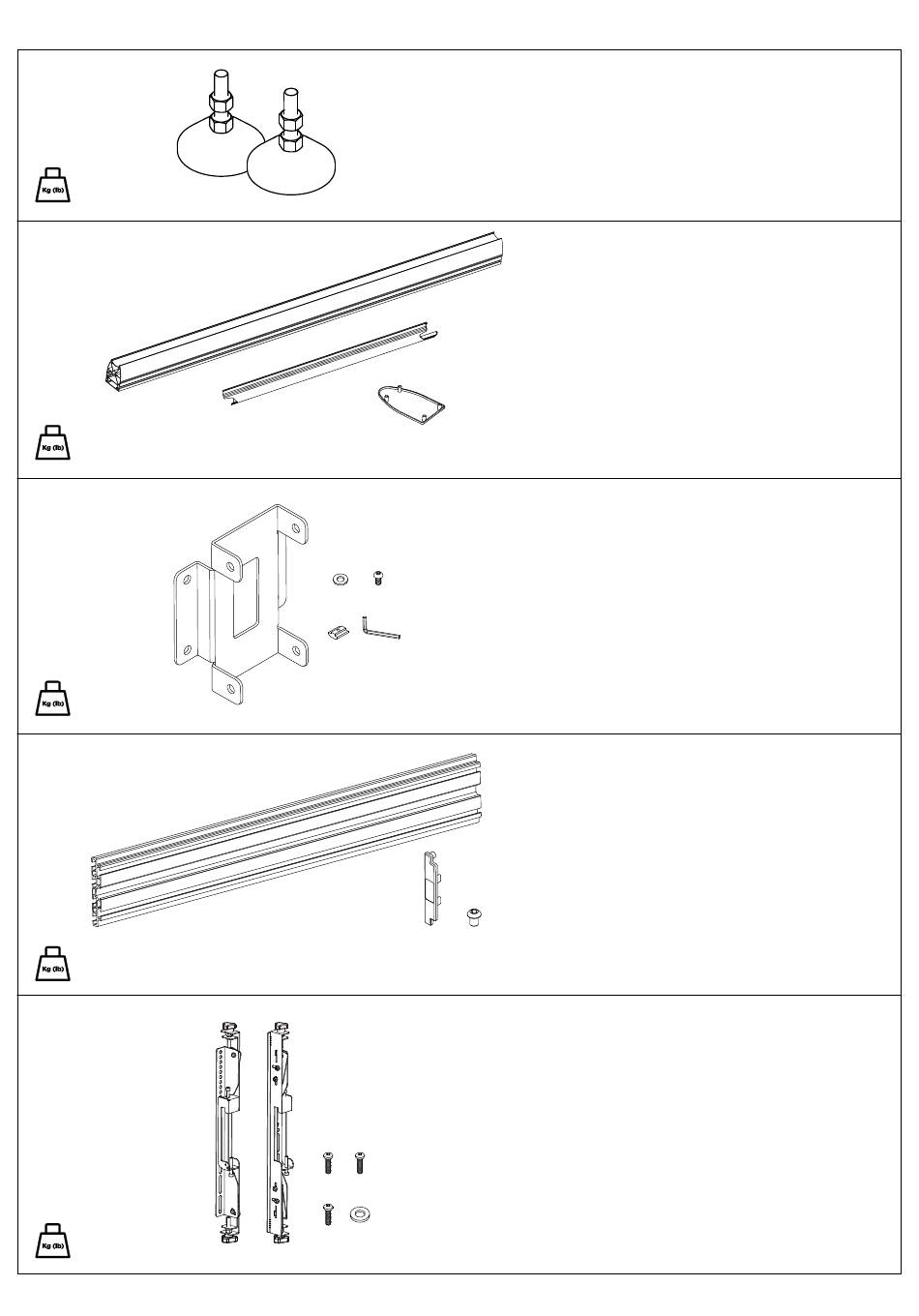

COMPONENT & PARTS CHECKLIST (cont.)
B
440lbs
200kg
C
C1
440lbs
200kg
D
110lbs
50kg
E
220lbs
100kg
F
110lbs
50kg
B1
C2 C3
D2
D4
D1
E1
F1 F2
F3 F4
F5 F6
D3
D5
E2 E3
ADB-FL Foot Leveller
Ref Part name
B1 Foot Leveller
ADB-U180-B 180 Upright Post
Ref Part name
C1 Post, 70.87" (1800mm) Tall
C2 Cable Cover
C3 End Cap
ADB-RUJ Rail Upright Joiner
Ref Part name
D1 Rail Joining Plate
D2 M8 Washer
D3 M8 x 12mm Screw
D4 M8 Sliding Nut
D5 5mm Allen Key
ADB-R175-S 175 Rail
Ref Part name
E1 Rail, 68.90" (1750mm)
E2 M8 Washer
E3 M8 x 12mm Screw
ADB-B400M VESA 400
Micro Adjust Brackets
Ref Part name
F1 Micro Adjust Bracket - Left
F2 Micro Adjust Bracket - Right
F3 M5 x 15mm Screw
F4 M6 x 15mm Screw
F5 M8 x 15mm Screw
F6 M6 Washer
ADBS-2x2-17MFB Page 2 of 4
QTY:2
Qty
2
QTY:2
Qty
1
3
1
QTY:4
Qty
1
8
8
8
1
QTY:2
Qty
1
2
2
QTY:4
Qty
1
1
4
4
4
4
