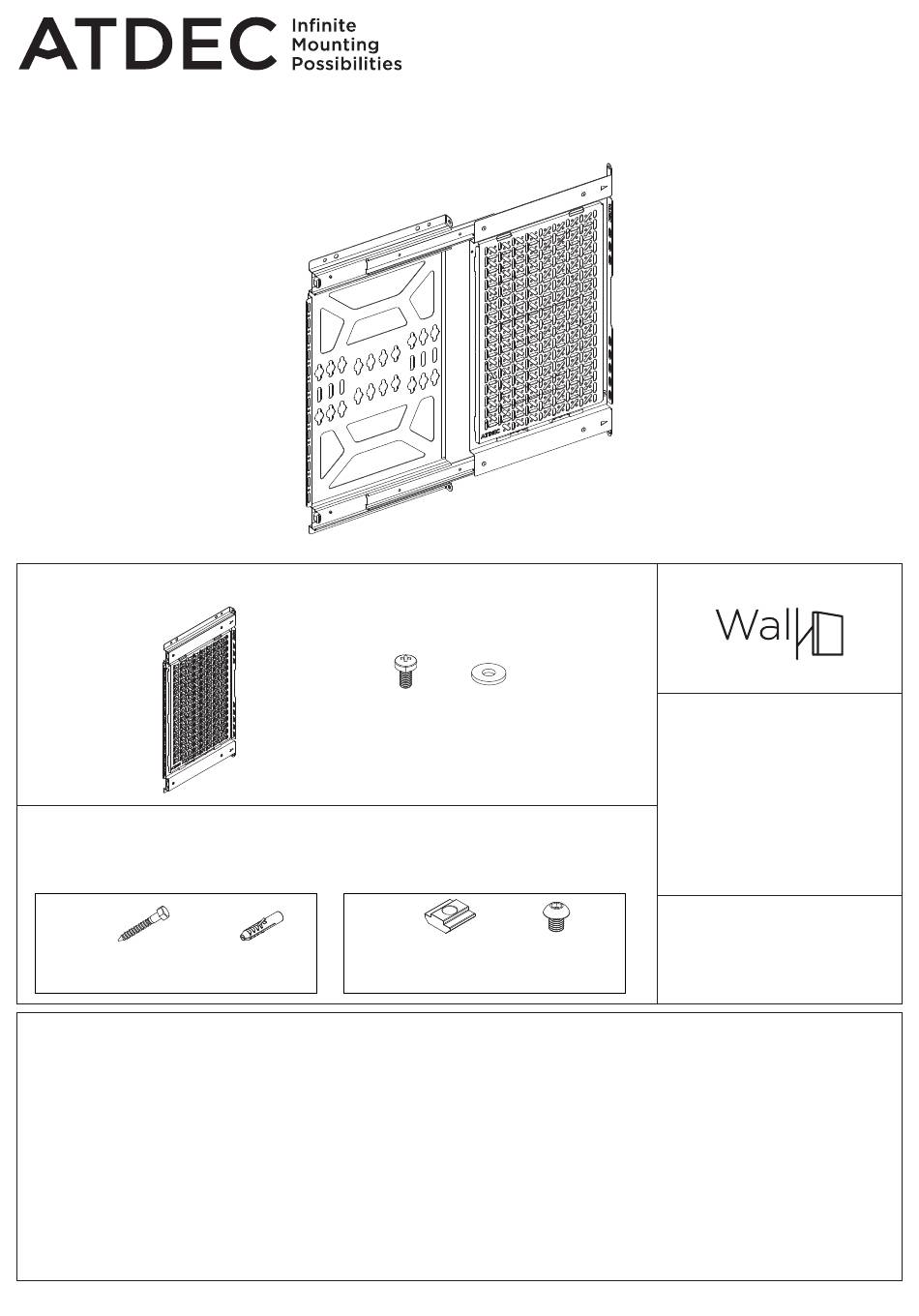

Atdec AD-AC-PS Installation Manual

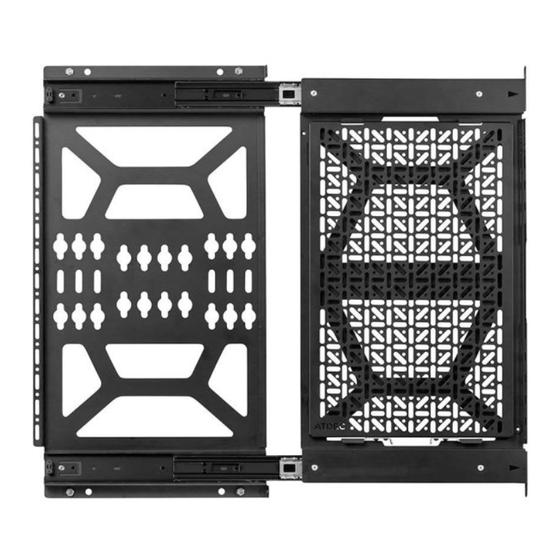

Sliding Media Storage Panel
COMPONENT CHECKLIST
EXAMPLE MOUNTING FASTENER
! Panel mounting fasteners are NOT supplied with the product.
! Professional installer to ensure correct mounting fastener type, location & quality to suit
structure where storage panel is installed.
Wall
6mm Coach Screw/
DynaBolt™/Chemset™
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Please ensure combination of display, display mounting bracket and AD-AC-PS provide sufficient clearance for component
mounting and sliding movement.
! This product is compatible with Atdec ADB series rail.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product should only be installed by professional installers of good mechanical aptitude, who have experience with basic
building construction, and fully understand these instructions and the consequences of incorrect installation.
! Check load capacity of wall prior to installation. Failure to provide adequate structural strength for this product can result
in serious personal injury or damage to equipment. It is professional installer's responsibility to ensure suitable structural
capacity of wall (including appropriate safety factor) to support total weight of all equipment being mounted. Reinforce the
wall structure and consult a structural engineer where required.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes into walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
! Product not suitable for use outdoors.
A
Sliding Media
B
Storage Panel
M4x5mm
(x1)
Security
Screw
(x2)
Atdec
ADB Rail
Nylon
Anchor
C
M5 Flat
Washer
(x20)
M8 M8x10mm
T-nut Button Head Screw
(x4) (x4)
Installation Guide
AD-AC-PS
REQUIRED TOOLS
• Phillips Head Screwdriver
• Power Drill
• Suitable Drill Bit
• Spirit Level
• 5mm Allen Key
WEIGHT RANGE
0 - 8kg
(0 - 17.5lb)
AD-AC-PS Page 1 of 4
