Atdec AD-TVC-70R Installation Manual

AV Cart 70 Rotation

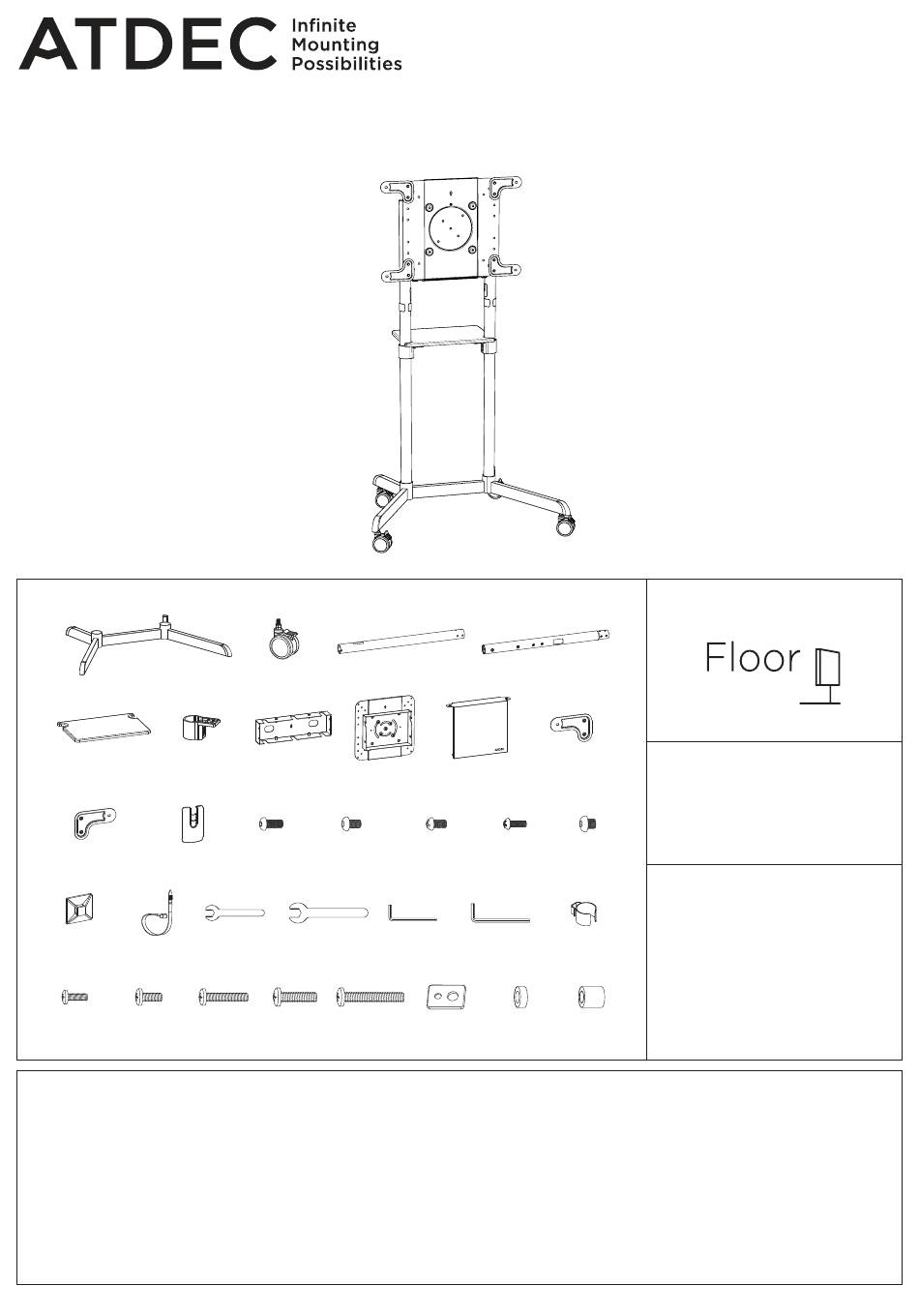

COMPONENT CHECKLIST

A
Base (x1)
E
Equipment Shelf Shelf Mounting
(x1) Bracket (x2)
K L
VESA Extension Cable
Adapter Arm (x2) Cover (x4)
R S
Cable Tie
Cable
Holder (x5) Tie (x5)
M-A M-B
M5x14mm M6x14mm
Screw (x4) Screw (x4)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to assemble this product correctly may cause serious injury/death during or following installation.
! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these
instructions and the consequences of incorrect installation.
! Do not over tighten screws.
! Two person installation is recommended.
! Product not suitable for use outdoors.
! After installation is complete check to verify that AV Cart is secure and safe for use.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA
locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.
Please contact Atdec if you would like further information.
! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control
or toys placed on the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.
B
Castor (x4) Base Column (x2)
F G
Front Mounting Plate
Cover (x1)
M N
M8x20mm M6x8mm
Screw (x8) Screw (x8)
T U
M6 Wrench M10 Wrench
(x1) (x1)
M-C M-D M-E
M6x30mm M8x30mm M8x50mm
Screw (x4) Screw (x4) Screw (x4)
C D
Upper Column (x2)
H I
Rear Cover VESA Extension
(x1) (x1) Adapter Arm (x2)
O P
M6x12mm M6x18mm
Screw (x16) Screw (x1)
V W
4mm 5mm
Allen Key (x1) Allen Key (x1)
M-F M-G
Washer Small
(x4) Spacer (x8)
Installation Guide
AD-TVC-70R
J

REQUIRED TOOLS

• Phillips Head Screwdriver
Q
M8x8mm
Screw (x8)

CAPACITY

DISPLAY
X
0-70kg (0-154lb)
Cable
Clips (x2)
37" - 70"
SHELF
0-5kg (0-11lb)
M-H
Big
Spacer (x8)
AD-TVC-70R Page 1 of 7
