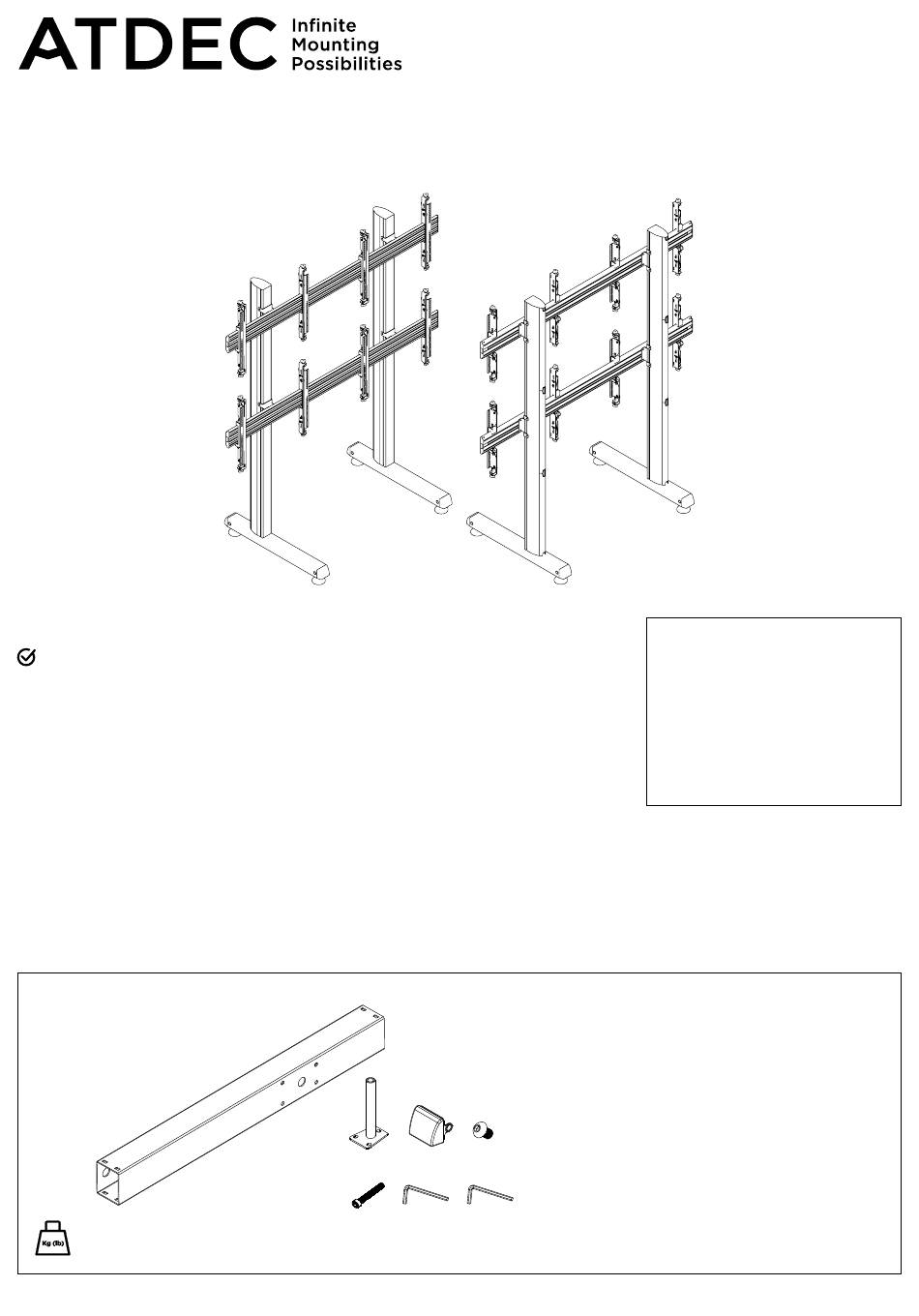

Atdec ADBS-2x2-17MFB Installation Manual

2 x 2 Freestand Floor Video Wall Micro
INSTALL GUIDELINES
TWO PERSON INSTALL RECOMMENDED.
• Read and understand Installation Safety Instructions before commencing installation.
• Atdec recommends that a professional AV installer or other suitably qualified person
install this product.
• Configurations should be installed in a symmetrical manner for optimal safety.
• Place rail supports (ADB-RPJ, ADB-RUJ, ADB-WP) evenly along the length of a Rail
segment to provide even loading of components.
• Place ADB-U180 uprights and ADB-RUJ Rail Upright Joiners directly behind the
centre of each screen.
• Place ADB-U180 uprights as widely spaced apart as possible for best stability.
• ADB-F must have either ADB-FL or ADB-C attached.
• When attaching displays, attach in an order that ensures stability during installation.
Alternate the loading order such that loads are balanced across to system. Alternate
the side onto which screens are placed to distribute load evenly.
COMPONENT & PARTS CHECKLIST
A
440lbs
200kg
A1
A2 A3
A5 A6
ADB-F Foot
Ref Part name
A1 Foot Tube
A2 Post Support
A3 End Cap
A4 M8 x 12mm Screw
A5 M8 x 45mm Screw
A6 5mm Allen Key
A7 6mm Allen Key
A4
A7
Installation Guide
ADBS-2x2-17MFB
REQUIRED TOOLS
• Power driver
• 13mm Hex socket
• Crosshead Screwdriver
OPTIONAL TOOLS
• Spirit Level
ADBS-2x2-17MFB Page 1 of 4
QTY:2
Qty
1
1
2
3
4
1
1
