Atdec AD-WM-5060 Installation Manual

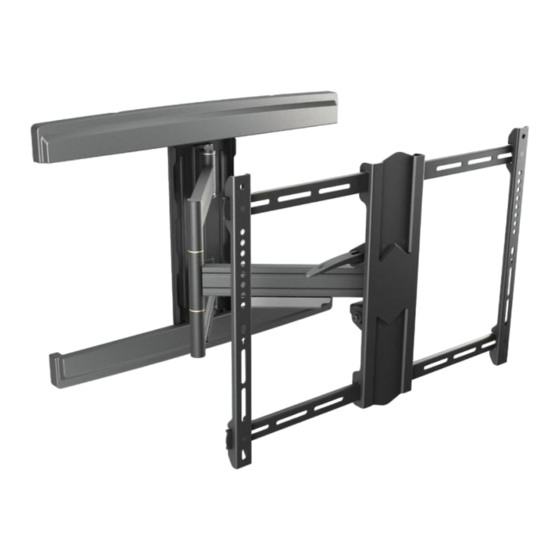

Full Motion Wall Mount 5060

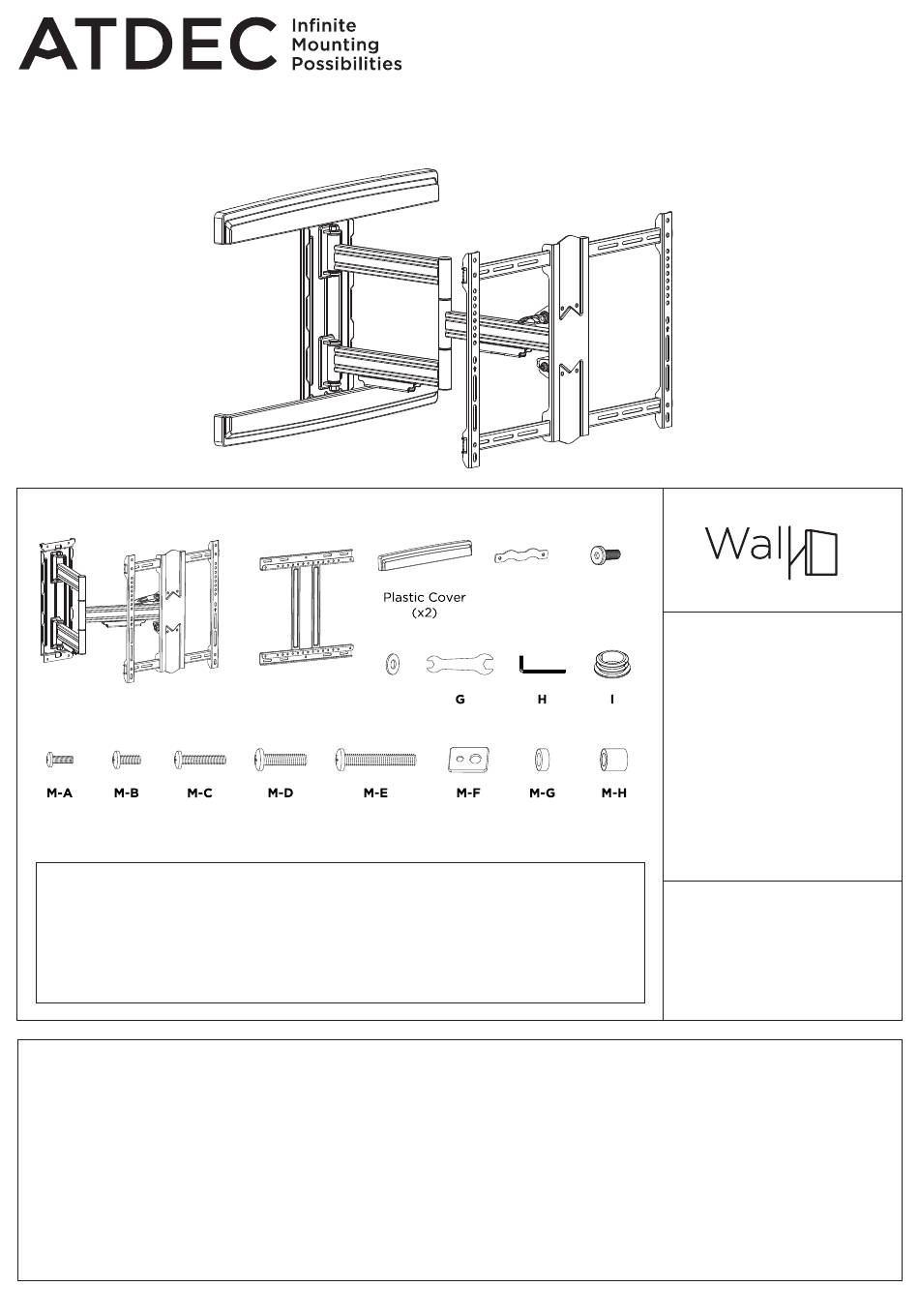

COMPONENT CHECKLIST
A
Display Arm
Assembly
M5x14 M6x14 M6x30
Screw Screw Screw
(x4) (x4) (x4)
NOTE:
! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts. Professional
installer to ensure correct Mounting Fastener type, location & quantity to suit
structure where Wall Mount is installed.
ALWAYS use a washer between the chosen fastener and the wall plate.
!
! Mounting fasteners to be used as per manufacturers instructions, including minimum
engagement to achieve necessary performance.
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! This product supports a maximum load of 50kg (110lbs).
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
! Suits displays with mounting hole patterns from 200mm to 600mm wide by 100mm to 400mm high.
C
B F
Washer
Wall Plate
(x4)
M8x30 M8x50
Screw Screw
(x4) (x4)
D E
Security M6x15
Plate Security
(x2) Screw (x4)
4mm Arm
Spanner
Hex Key Joint Cap
Multi Short Long
Washer Spacer Spacer
(x4) (x8) (x8)
Installation Guide
AD-WM-5060
REQUIRED TOOLS
• Phillips head screwdriver
• Socket wrench set
• 5mm hex key
• Power drill
• Suitable drill bit
• Driver bit for selected
wall fasteners
• Stud finder
• Spirit level
WEIGHT RANGE
0 - 50kg
(0 - 110lbs)
AD-WM-5060 Page 1 of 4
