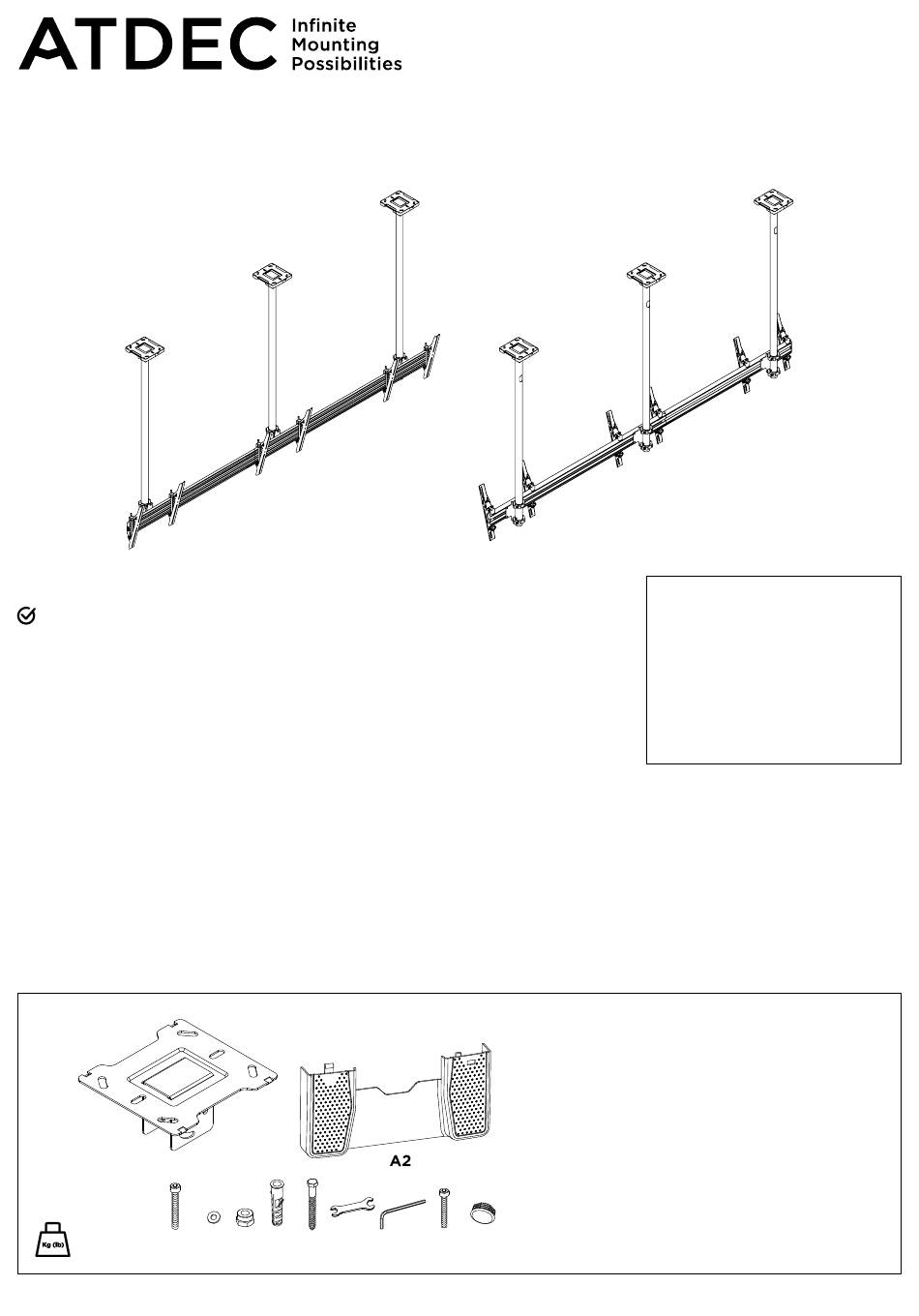

Atdec ADBS-3x1-30T3C Installation Manual

3 x 1 Ceiling Menu Board Tilt
INSTALL GUIDELINES
TWO PERSON INSTALL RECOMMENDED.
• Read and understand Installation Safety Instructions before commencing installation.
• Atdec recommends that a professional AV installer or other suitably qualified person
install this product.
• Configurations should be installed in a symmetrical manner for optimal safety.
• Place rail supports (ADB-RPJ, ADB-RUJ, ADB-WP) evenly along the length of a Rail
segment to provide even loading of components.
• ADB-R175 requires two rail supports (ADB-RPJ, ADB-RUJ, ADB-WP) to support a load of
200lbs (100kg). If one rail support is used, the rail can only support 110lbs (50kg)
maximum load.
• Fasten ADB-RX symmetrically over the junction of Rail segments. Tighten the set screws
of ADB-RX firmly.
• Place ADB-P Poles and ADB-RPJ Rail Pole Joiners directly behind the centre of each screen.
• Ensure that each ADB-R Rail is supported by at least one ADB-WP Wall Plate.
• When attaching displays, attach in an order that ensures stability during installation.
Alternate the loading order such that loads are balanced across to system. Alternate the
side onto which screens are placed to distribute load evenly.
COMPONENT & PARTS CHECKLIST
A
220lbs
A3 A4
100kg
A1
A5 A9
A6 A7 A8
ADB-PC Pole Ceiling Fixture
Ref Part name
A1 Ceiling Plate
A2 Plate Covers
A3 M8 x 70mm Screw
A4 M8 Washer
A5 M8 Nut
A6 Plastic Anchor
A7 Coach Screw
A8 Open Wrench
A9 6mm Hex Key
A10 M8 x 60mm Screw
A10 A11
A11 End Cap
Installation Guide
ADBS-3x1-30T3C
REQUIRED TOOLS
• Power driver
• 13mm Hex socket
• Crosshead Screwdriver
OPTIONAL TOOLS
• Spirit Level
ADBS-3x1-30T3C Page 1 of 4
QTY:3
Qty
1
2
3
12
4
6
6
1
1
1
1
