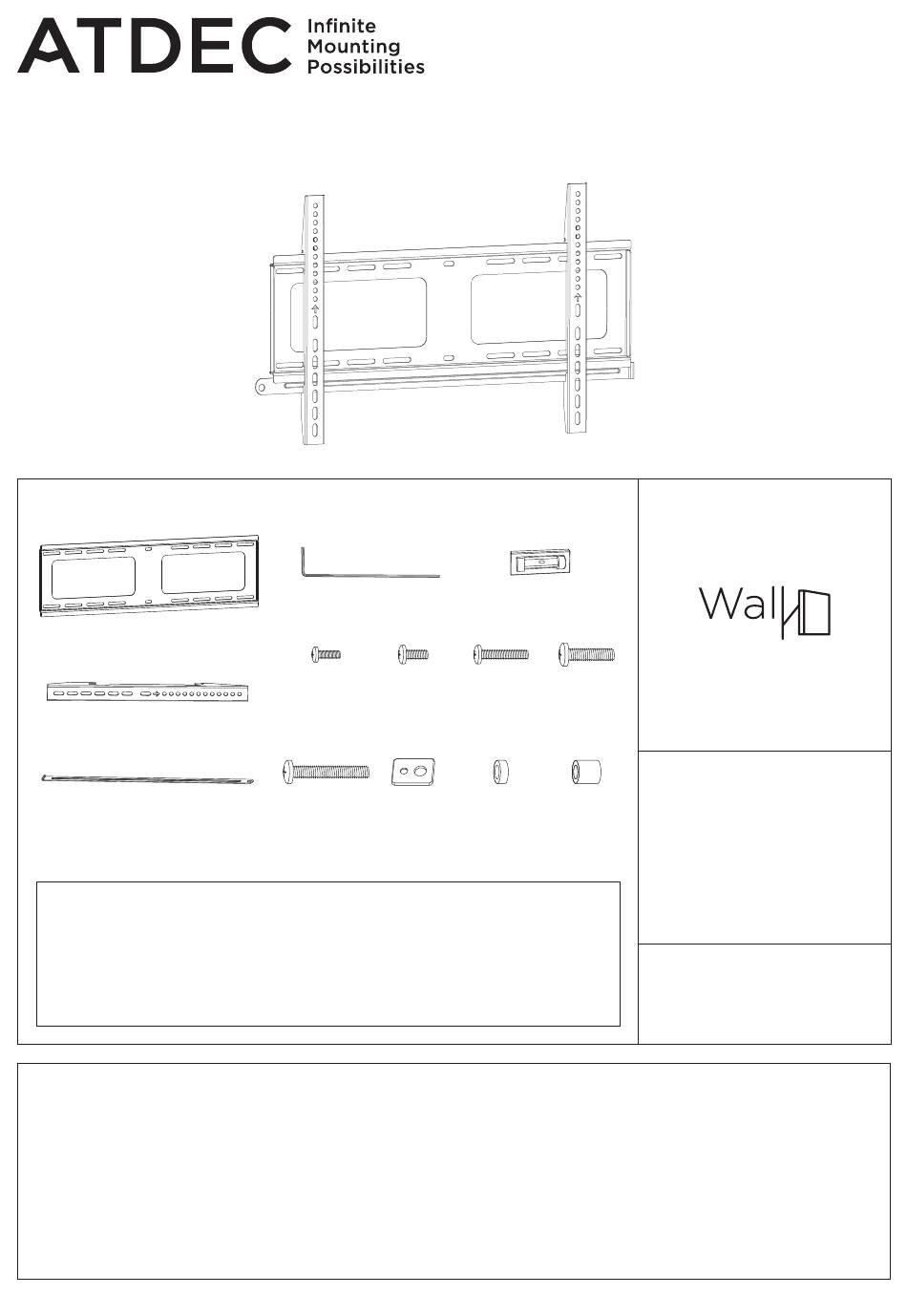

Atdec 8060 Installation Manual

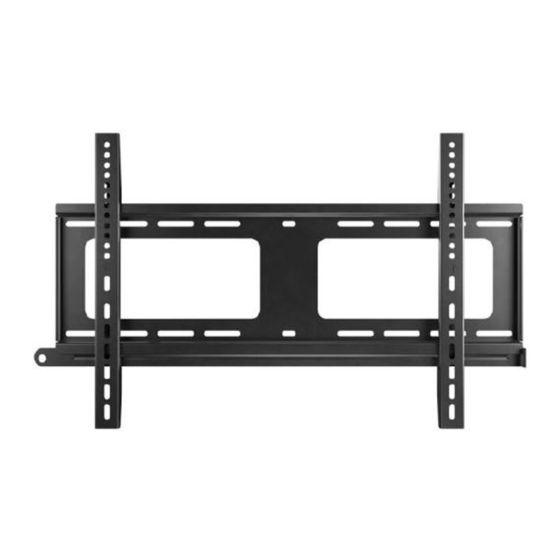

Fixed Wall Mount 8060
COMPONENT CHECKLIST
A
Wall Plate
B
Display Brackets (x2)
C
Security Bar
NOTE:
! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts.
Professional installer to ensure correct Mounting Fastener type, location &
quantity to suit structure where Wall Mount is installed.
! ALWAYS use a washer between the chosen fastener and the wall plate.
! Mounting fasteners to be used as per manufacturers instructions, including
minimum engagement to achieve necessary performance.
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
D
Hex Key
M-A M-B
M5x14 M6x14
Screw Screw
(x4) (x4)
M-E M-F
M8x50 Multi
Screw Washer
(x4) (x4)
Installation Guide
E
Spirit Level
M-C M-D
M6x30 M8x30
Screw Screw
(x4) (x4)
M-G M-H
Short Long
Spacer Spacer
(x8) (x8)
AD-WF-8060
REQUIRED TOOLS
• Phillips head screwdriver
• Power drill
• Suitable drill bit
• Driver bit for selected
wall fasteners
• Stud finder
• Spirit level
WEIGHT RANGE
0 - 80kg
(0 - 176lb)
AD-WF-8060 Page 1 of 2
