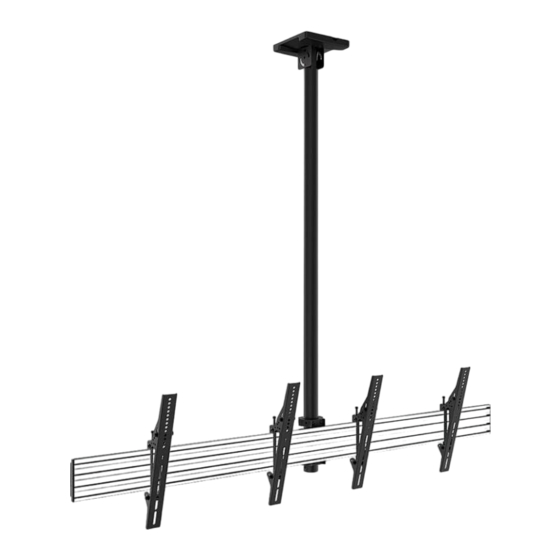

Atdec ADBS-2x1-17TC Installation Manual

2 x 1 Ceiling Menu Board Tilt
INSTALL GUIDELINES
TWO PERSON INSTALL RECOMMENDED.
• Read and understand Installation Safety Instructions before commencing installation.
• Atdec recommends that a professional AV installer or other suitably qualified person
install this product.
• Configurations should be installed in a symmetrical manner for optimal safety.
• Place rail supports (ADB-RPJ, ADB-RUJ, ADB-WP) evenly along the length of a Rail
segment to provide even loading of components.
• Place ADB-P Poles and ADB-RPJ Rail Pole Joiners directly behind the centre of each screen.
• Ensure that each ADB-R Rail is supported by at least one ADB-WP Wall Plate.

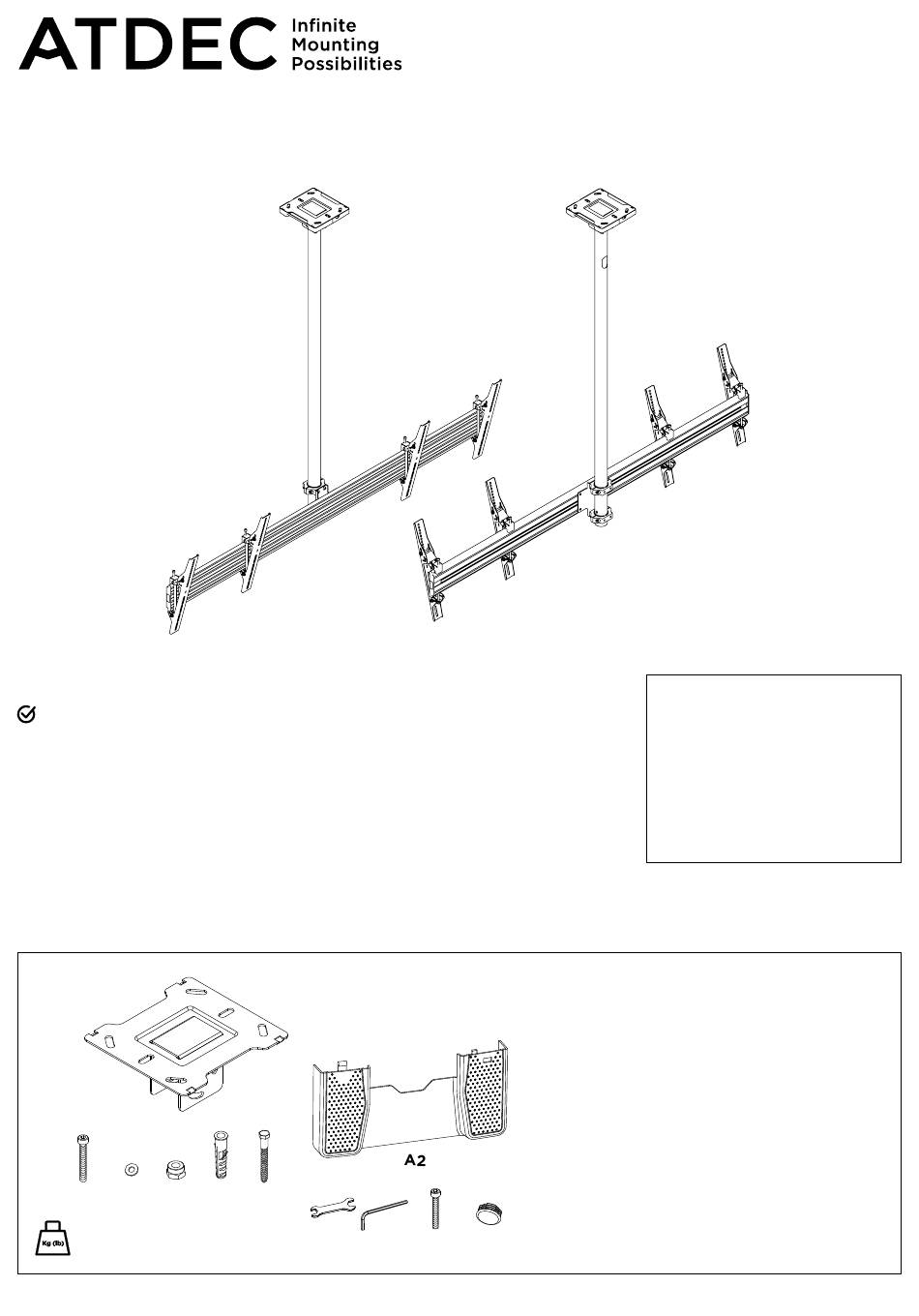

COMPONENT & PARTS CHECKLIST
A
A3
A4 A5
220lbs
100kg
A1
A6 A7
A8 A9
ADB-PC Pole Ceiling Fixture
Ref Part name
A1 Ceiling Plate
A2 Plate Covers
A3 M8 x 70mm Screw
A4 M8 Washer
A5 M8 Nut
A6 Plastic Anchor
A7 Coach Screw
A8 Open Wrench
A9 6mm Hex Key
A10 M8 x 60mm Screw
A11 End Cap
A10 A11

Installation Guide

ADBS-2x1-17TC

REQUIRED TOOLS

• Power driver
• 13mm Hex socket
• Crosshead Screwdriver

OPTIONAL TOOLS

• Spirit Level
ADBS-2x1-17TC Page 1 of 4
QTY:1
Qty
1
2
3
12
4
6
6
1
1
1
1
