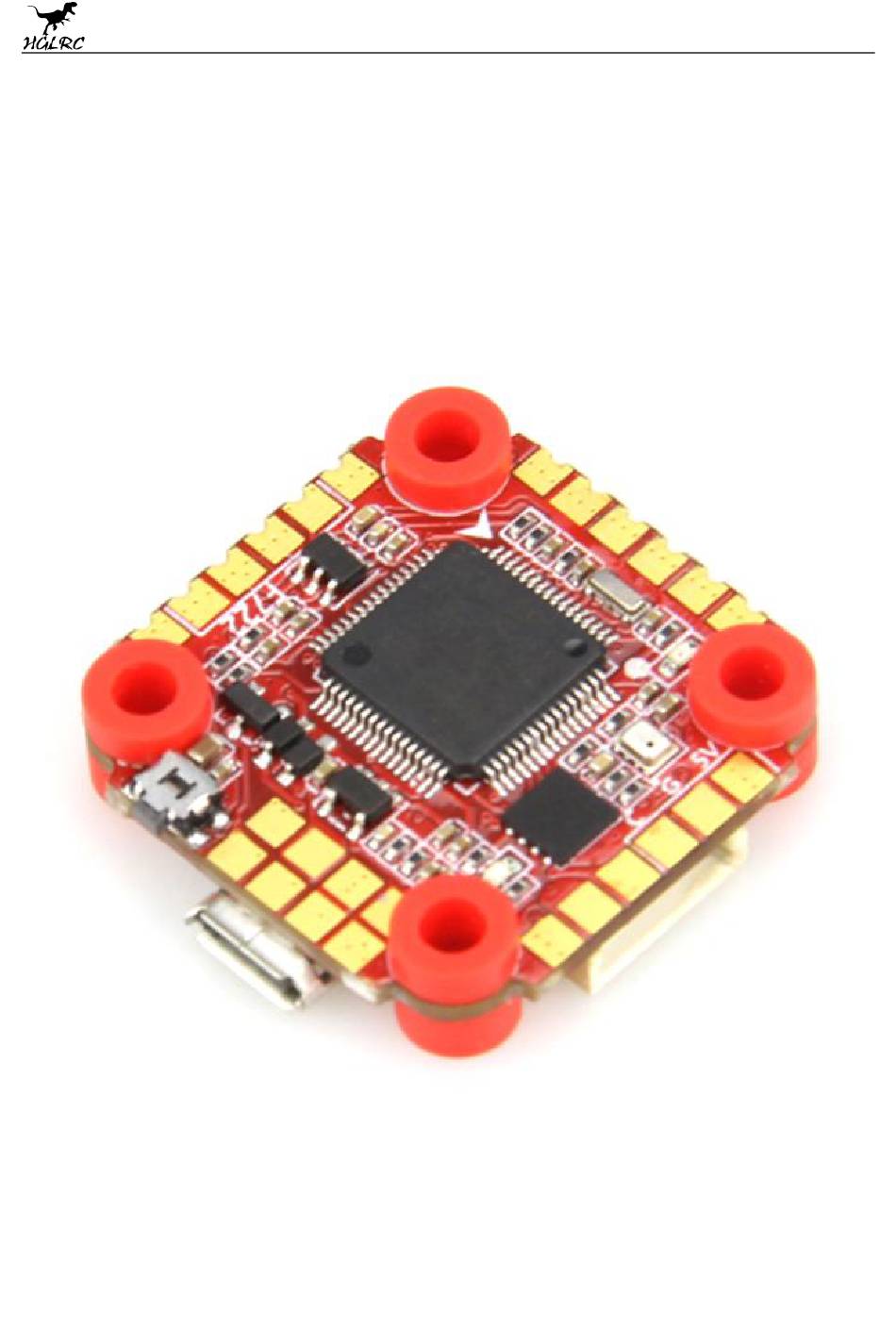

- Page 1 Zeus F722 mini Flight Control Manual www.hglrc.com...
-
Page 2: Table Of Contents
Setting up the receiver..........................10 VTX serial port use. VTX uses OSD smart audio................11 GPS parameters setting...........................12 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 Troubleshooting............................17 ..................Package IncIuded Zeus F722 mini Flight Controller Accessory Bag*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model Zeus F722 mini Flight Controller Weight 4.6g Usage for 100mm-450mm Frame Kit MPU6000 STM32F722 RET6 Black Box Support receiver SBUS .IBUS.DSMX/R9MM Input Voltage 3-6S Lipo BEC Output 9V/2A.5V/3A 28.2x28.1mm board, M2/M3 Size mounting holes www.hglrc.com... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5.Click Select firmware version Load firmware Waiting for 6.Click completion It will be prompted upon completion 7. open betaflight configurator computer. Betaflight Automatically assigned port click “Connect” Enter Controller plugged into the setup interface（Different computer COM） ， www.hglrc.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use 1.URAT1 uses the receiver 2.URAT2 uses GPS 3.URAT3 uses VTX image transmission 4.URAT4 uses DJI 5.URAT6 uses ESC telemetry www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com... -
Page 9: Choose Esc Protocol
1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Turn on ESC telemetry 1.Use BLHeli_32 ESC telemetry over a separate wire 2.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry www.hglrc.com... -
Page 10: Voltage And Current Parameters Setting
3.View telemetry data on OSD 9.Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com... -
Page 11: Setting Up The Receiver
10.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART1 Open the receiver serial port “ ” 3.Set the SBUS receiver www.hglrc.com... -
Page 12: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
4.Set the DSMX receiver 11.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com... - Page 13 2. DJI FPV Air Unit wiring 3.VTX serial port opens. The protocol is selected according to its own VTX protocol. 4. DJI serial port opens www.hglrc.com...
- Page 14 SmartAudio (TBS Unify) or “VTX TR” if you are using IRC Tramp Telemetry. To adjust PIDs, rates, and other tuning-related parameters, enter the “Profile” sub-menu. In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen. www.hglrc.com...
-
Page 15: Gps Parameters Setting
The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. 12.GPS parameters setting 1.GPS connection diagram www.hglrc.com... - Page 16 2.Open the GPS serial port 3.When using the GPS function, remember to configure the serial port (via the Ports tab). www.hglrc.com...
-
Page 17: Check Receiver Signal
13.Check receiver signal Check the remote control output signal 1.Click 14.Select flight mode startup mode set up the function of remote control switch across the 1.Click channel (below are for reference only) www.hglrc.com... -
Page 18: Osd Settings
15.OSD settings the OSD Settings, according to the need to choose, drag 1.Click the OSD schematic diagram of the parameters can be adjusted. 16. LED settings 1.Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 19: Troubleshooting
2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com... - Page 20 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
