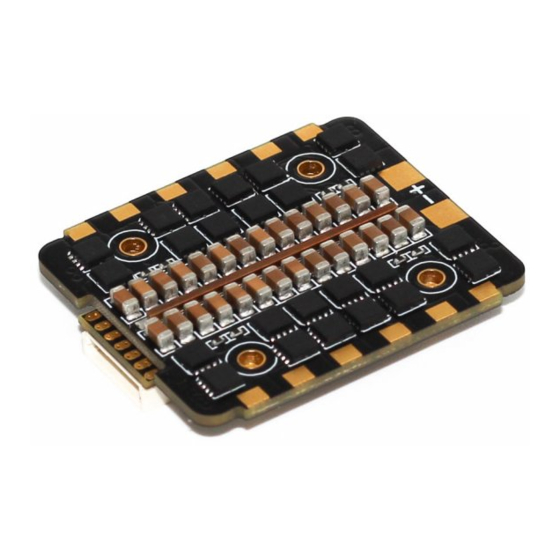

Forward 45A 4in1 MINI ESC
Manual
1
www.hglrc.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Forward 45A 4in1 MINI ESC and is the answer not in the manual?

Questions and answers

Related Manuals for HGLRC Forward 45A 4in1 MINI ESC

Summary of Contents for HGLRC Forward 45A 4in1 MINI ESC

  • Page 1 Forward 45A 4in1 MINI ESC Manual www.hglrc.com...
  • Page 2 Product Specifications..........................1 Interface Description..........................2 ........................Upgrade ESC firmware..........................3 Troubleshooting............................4 Package IncIuded Forward 45A 4in1 MINI ESC Accessory Bag*1 www.hglrc.com...

  • Page 3: Product Specifications

    1.Product Specifications Product parameters 2-6S Lipo battery Model Forward 45A 4in1 MINI ESC STM32F051 Input Voltage Peak Current Continuous current 45A-4S/35A-6S BLHELI_32 55A（5s） MOS Tube TOP QUALITY MOSFET Firmware DSHOT1200/600/300/150/ BEC Output Oneshot125/42,MultiShotDa Protocol: mped mode,forward and reverse 36.5X31.7mm board, 20.0mm Size mounting holes（M2）...

  • Page 4: Interface Description

    2.Interface Description www.hglrc.com...
  • Page 5 3.Upgrade ESC firmware Select com serial port （ Different computer 1.First, the flight controller is connected to the ESC and then opened COM） (BLHeliSuite32) for connection www.hglrc.com...
  • Page 6 2. click the link Plug in the battery and click The ESC version number appears.Then Click ESC upgrade。 www.hglrc.com...
  • Page 7 3. Change motor steering 1. Open first (BLHeliSuite32) to connect.Find the ESC model that needs to change direction (right mouse button to select ESC).Remembering to save after modification。Remember to modify and click (Write Setup) to save www.hglrc.com...

  • Page 8: Troubleshooting

    Please read the cautions as follows, otherwise stability of your flight controller cannot be ensured, your flight controller will even get damaged. ● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. www.hglrc.com...
  • Page 9 Check if the ESC protocol is correct. 2. Connect BLHeliSuite32 software ESC does not recognize: 1. Please check if the ESC connection flight control cable is loose. 2. Change the USB cable test or change the computer USB socket test www.hglrc.com...
