  • Page 1 Zeus5 AIO Flight Controller Manual www.hglrc.com...
  • Page 2: Table Of Contents

    Voltage and current parameters setting.....................8 Setting up the receiver..........................9 VTX serial port use. VTX uses OSD smart audio................10 Check receiver signal..........................11 Select flight mode startup mode......................12 OSD settings..............................13 LED settings..............................14 Troubleshooting............................15 ..................Package IncIuded Zeus5 AIO Flight Controller*1 Accessory Bag*1 1.Product Specifications www.hglrc.com...
  • Page 3: Interface Description

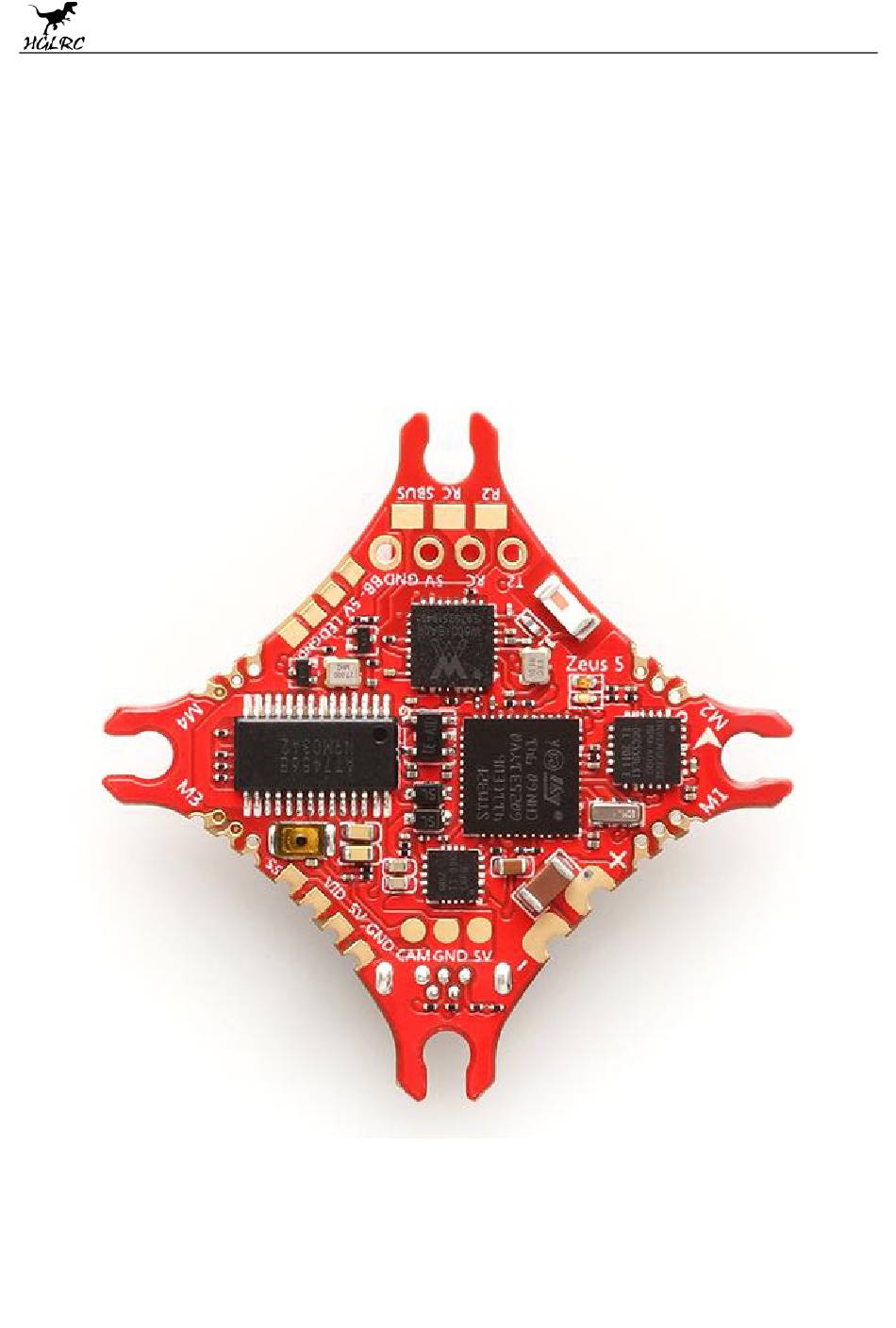

    Product parameters Model Zeus5 AIO Flight Controller Weight 4.2g Input Voltage 1-2S Usage for 65mm-120mm Frame Kit Installing Hole 25.5x25.5mm/M2 Dimensioms 41.5.x41.5mm FC Firmware BF HGLRCF411(HGLR) STM32F411 MPU6000 5V/1A BlackBox UARTS ESC Firmware BL_S Current Sensor not support Constant Current 2.Interface Description...
  • Page 4: Check The Flight Control Drive

    3.Check the flight control drive www.hglrc.com...
  • Page 5 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode , 5.Click Select firmware version www.hglrc.com...
  • Page 6 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator Controller plugged into the computer. Betaflight Automatically assigned port click “Connect” Enter , setup interface Different computer ( ) www.hglrc.com...
  • Page 7: Calibration Accelerometer

    Click again 5.UART serial port use 1.UART1 uses WIFI Open WIFI CLI command ‘’ resource PINIO 1 B10 serial 0 1 115200 57600 0 115200 set pinio_config = 129,1,1,1 set pinio_box = 0,255,255,255 ‘’ save 2. UART2 uses receiver www.hglrc.com...
  • Page 8: Select Aircraft Model

    S5 is a soft serial port, dedicated to video transmission (VTX) FM CLI command of soft serial port: ‘’ resource MOTOR 5 none resource SERIAL_TX 11 B03 ‘’ SAVE 6.Select aircraft model Select model Click www.hglrc.com...
  • Page 9: Choose Esc Protocol

    I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” 7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. www.hglrc.com...
  • Page 10: Voltage And Current Parameters Setting

    8.Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com...
  • Page 11: Setting Up The Receiver

    9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open the receiver serial port “ ” www.hglrc.com...
  • Page 12: Vtx Serial Port Use. Vtx Uses Osd Smart Audio

    10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram 2.VTX serial port opens. The protocol is selected according to its own VTX protocol. www.hglrc.com...
  • Page 13 In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen. The “Alarms” sub-menu lets you control when the OSD will try to alert you that battery voltage is too low or mAh consumed is too high. www.hglrc.com...
  • Page 14: Check Receiver Signal

    After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. 11.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com...
  • Page 15: Select Flight Mode Startup Mode

    (below are for reference only) 13.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com...
  • Page 16: Led Settings

    14.LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com...
  • Page 17: Troubleshooting

    2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com...
  • Page 18 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
