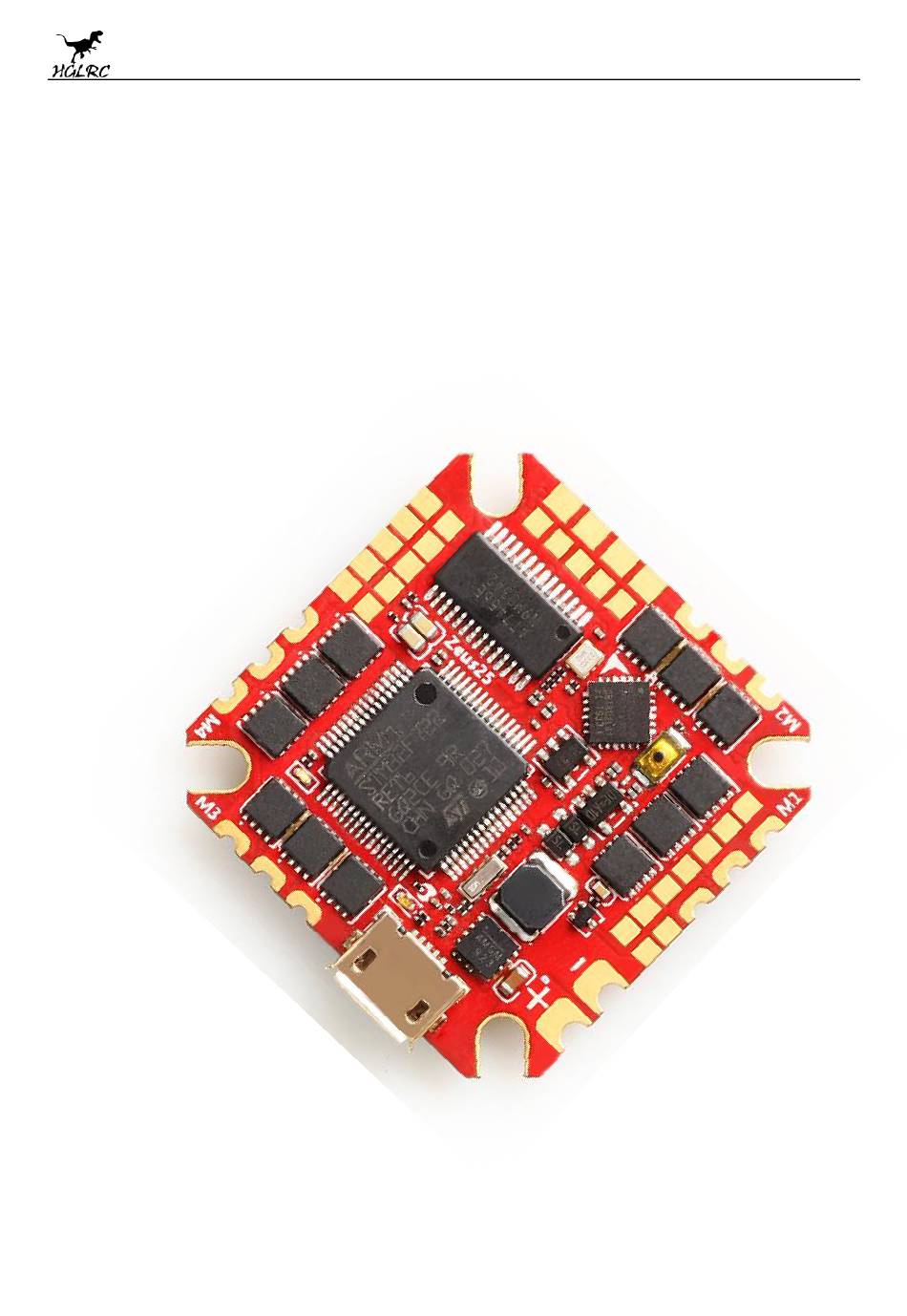

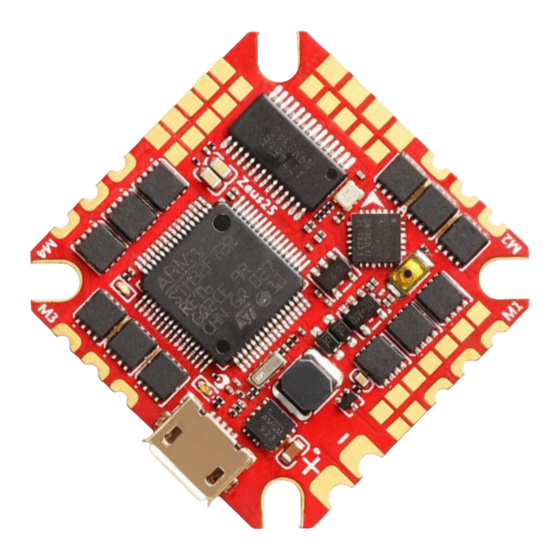

- Page 1 Zeus25 AIO Flight Controller Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting.....................8 Setting up the receiver..........................9 VTX serial port use. VTX uses OSD smart audio................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded Zeus25 AIO*1 Accessory Bag*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model Zeus25 AIO Weight 8.2g Input Voltage 3-6S Usage for 65mm-200mm Frame Kit Installing Hole 25.5x25.5mm/M2 Dimensioms 32.5x32.5mm FC Firmware BF ZEUSF722_AIO(HGLR) STM32F722 MPU6000 10V/1A 5V/2A BlackBox UARTS ESC Firmware BL32 Current Sensor not support Constant Current Peak Current 30A（10s）... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5.Click Select firmware version 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator Controller plugged into the computer. Betaflight Automatically assigned port click “Connect” Enter ， setup interface Different computer （ ） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.UART serial port use 1.UART1 uses the receiver 2.UART2 uses GPS 3.UART3 uses VTX /DJI 4.UART4 uses WIFI module 5.UART6 uses ESC www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite32 “ ” www.hglrc.com... -
Page 9: Choose Esc Protocol
7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com... -
Page 10: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open the receiver serial port “ ” www.hglrc.com... -
Page 11: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com... - Page 12 3. DJI serial port opens 4.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. MODE2 MODE1 www.hglrc.com...
- Page 13 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
-
Page 14: Gps Parameters Setting
11. GPS parameters setting 1.GPS connection diagram www.hglrc.com... - Page 15 2.Open the GPS serial port 3.When using the GPS function, remember to configure the serial port (via the Ports tab). www.hglrc.com...
-
Page 16: Check Receiver Signal
12.Check receiver signal Check the remote control output signal 1.Click 13.Select flight mode startup mode 1.Click set up the function of remote control switch across the channel (below are for reference only) www.hglrc.com... -
Page 17: Osd Settings
14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com... -
Page 18: Led Settings
15.LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 19: Troubleshooting
2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. Product daily problems www.hglrc.com... - Page 20 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
