  • Page 1 Zeus10 AIO Flight Controller Manual www.hglrc.com...
  • Page 2: Table Of Contents

    Voltage and current parameters setting.....................8 Setting up the receiver..........................9 VTX serial port use. VTX uses OSD smart audio................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded Zeus10 AIO Flight Controller*1 Accessory Bag*1 www.hglrc.com...
  • Page 3: Product Specifications

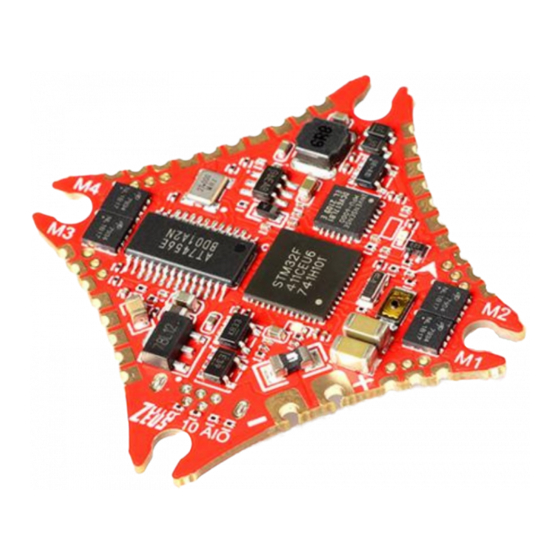

    1.Product Specifications Product parameters Model Zeus10 AIO Flight Controller Weight 5.1g Input Voltage 2-6S Usage for 100mm-250mm Frame Kit Installing Hole 25.5x25.5mm/M3 Dimensioms 32.5x32.5mm FC Firmware BF ZEUSF4EVO STM32F411 MPU6000 5/2A BlackBox UARTS ESC Firmware BL_S/(P_H_10) Current Sensor not support...
  • Page 4: Interface Description

    2.Interface Description 3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer www.hglrc.com...
  • Page 5 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode , 5.Click Select firmware version www.hglrc.com...
  • Page 6: Calibration Accelerometer

    It will be prompted upon completion 7.open betaflight configurator computer. Betaflight Automatically assigned port click “Connect” Enter Controller plugged into the setup interface Different computer , ( ) 4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com...
  • Page 7: Uart Serial Port Use

    5.UART serial port use 1.UART1 uses DJI/GPS 2.UART2 uses Receiver 3.SOFTSERIAL1 uses VTX/GPS 6.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com...
  • Page 8: Choose Esc Protocol

    7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com...
  • Page 9: Setting Up The Receiver

    9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open the receiver serial port “ ” www.hglrc.com...
  • Page 10: Vtx Serial Port Use. Vtx Uses Osd Smart Audio

    10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com...
  • Page 11 Roll-right will enter the sub-menu. For example, in the screen to the right, moving the cursor to “Features” and then moving the roll stick to the right will enter the “Features” sub-menu. If you are using a video transmitter that supports remote www.hglrc.com...
  • Page 12 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
  • Page 13: Gps Parameters Setting

    11. GPS parameters setting 1.GPS connection diagram GPS only can use for soft serial port if using hd(dji,vista) vtx. GPS only can use for RX1 TX1 if using analog vtx. www.hglrc.com...
  • Page 14 2.Open the GPS serial port:(GPS only can use for RX1 TX1 if using analog vtx) GPS only can use for soft serial port if using hd(dji,vista) vtx 4.When using the GPS function, remember to configure the serial port (via the Ports tab). www.hglrc.com...
  • Page 15: Check Receiver Signal

    12.Check receiver signal Check the remote control output signal 1.Click 13.Select flight mode startup mode 1.Click set up the function of remote control switch across the channel (below are for reference only) www.hglrc.com...
  • Page 16: Osd Settings

    14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com...
  • Page 17: Led Settings

    15.LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com...
  • Page 18: Troubleshooting

    2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com...
  • Page 19 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
