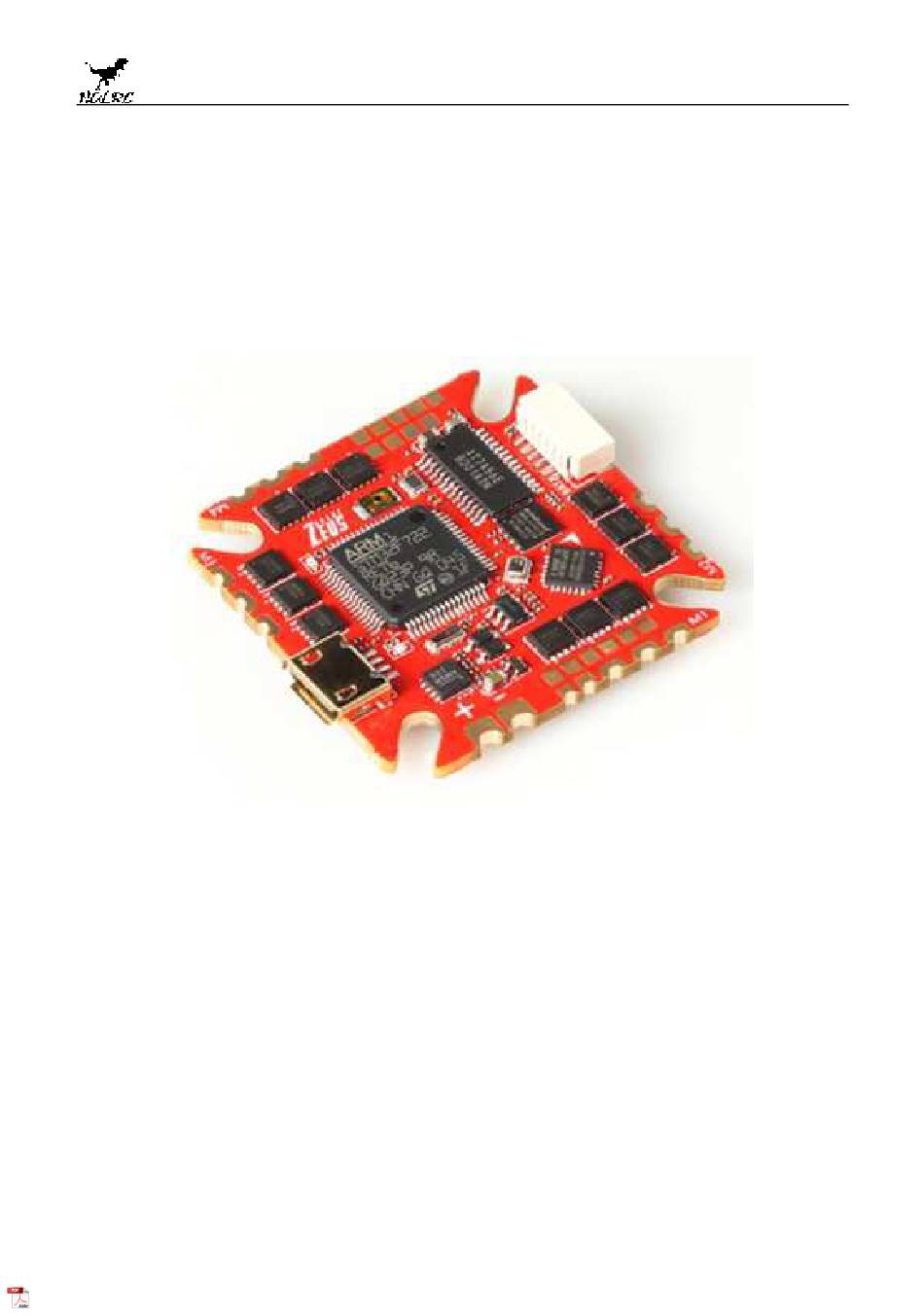

- Page 1 Zeus25 V2 AIO Flight Controller Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting.....................8 Setting up the receiver..........................9 VTX serial port use. VTX uses OSD smart audio................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded Zeus25 V2 AIO*1 Accessory Bag*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model Zeus25 V2 AIO Input Voltage 3-6S Usage for 65mm-200mm Frame Kit Installing Hole 25.5x25.5mm/M2 Dimensioms 34.5x34.5mm FC Firmware BF ZEUSF722_AIO(HGLR) STM32F722 MPU6000 5/2A BlackBox UARTS ESC Firmware BL_S(F_H_40) Current Sensor support Constant Current Peak Current 30A（5 Sec）... -
Page 4: Interface Description
2.Interface Description 3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer www.hglrc.com... - Page 5 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， 5.Click Select firmware version www.hglrc.com...
-
Page 6: Calibration Accelerometer
It will be prompted upon completion 7.open betaflight configurator computer. Betaflight Automatically assigned port click “Connect” Enter Controller plugged into the setup interface Different computer ， （ ） 4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com... -
Page 7: Uart Serial Port Use
5.UART serial port use 1.UART1 uses receiver of DJI/Vista remote controller 2.UART2 uses VTX 3.UART3 uses GPS 4.UART4 uses DJI 5.UART6 uses receiver of remote controller 6.Select aircraft model Select model Click www.hglrc.com... -
Page 8: Choose Esc Protocol
I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite32 “ ” 7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. www.hglrc.com... -
Page 9: Voltage And Current Parameters Setting
8.Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com... -
Page 10: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART6 Open the receiver serial port “ ” www.hglrc.com... -
Page 11: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com... - Page 12 3. DJI serial port opens 4.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. MODE2 MODE1 www.hglrc.com...
- Page 13 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
-
Page 14: Gps Parameters Setting
11. GPS parameters setting 1.GPS connection diagram 2.Open the GPS serial port www.hglrc.com... -
Page 15: Check Receiver Signal
3.When using the GPS function, remember to configure the serial port (via the Ports tab). 12.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com... -
Page 16: Select Flight Mode Startup Mode
(below are for reference only) 14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com... -
Page 17: Led Settings
15.LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 18: Troubleshooting
● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. ● The refresh rate of PID and Gyroscope is up to 8K/8K. www.hglrc.com... - Page 19 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
