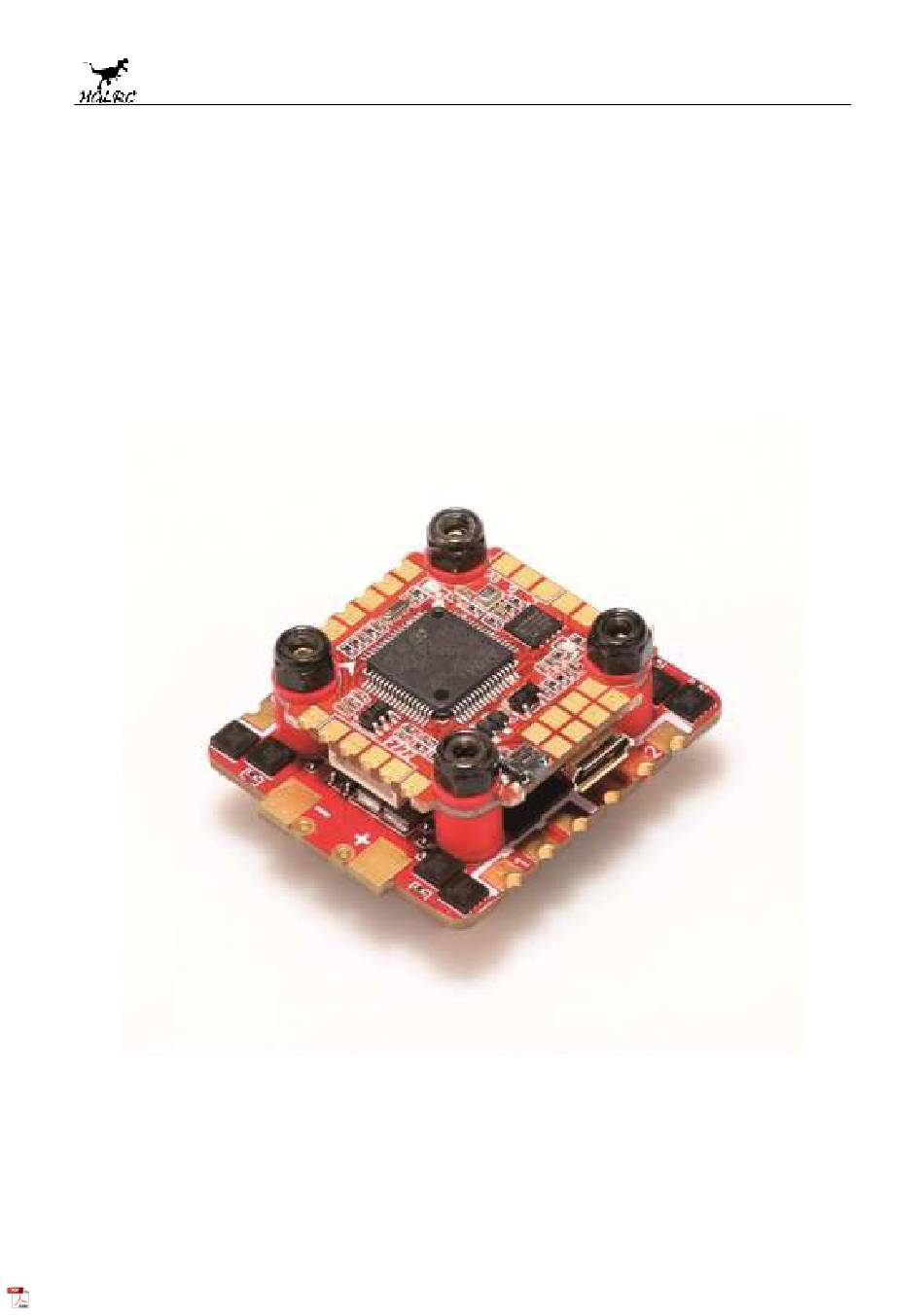

- Page 1 Zeus F745 STACK Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting.....................9 Setting up the receiver..........................10 VTX serial port use. VTX uses OSD smart audio................11 GPS parameters setting...........................12 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 Troubleshooting............................17 ..................Package IncIuded ZeusF745 stack*1 Accessory Package*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model Zeus F745 stack Usage for 100mm-450mm Frame Kit Flight Controller F722 mini Flight Controller 45A BL32 3-6S 4in1 ESC Black Box Support receiver SBUS.IBUS.DSMX Input Voltage 3-6S Lipo Weight 21.5g www.hglrc.com... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5.Click Select firmware version 6.Click Load firmware Waiting for completion It will be prompted upon completion click “Connect” Enter 7. open betaflight configurator Controller plugged into the computer. Betaflight Automatically assigned port ， setup interface（Different computer COM） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use 1.URAT1 uses the receiver 2.URAT2 uses GPS 3.URAT3 uses VTX image transmission 4.URAT4 uses DJI 5.URAT6 uses ESC telemetry www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks Push Master to check motor Click Click “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com... -
Page 9: Choose Esc Protocol
1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Turn on ESC telemetry 1.Use BLHeli_32 ESC telemetry over a separate wire 2.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry www.hglrc.com... -
Page 10: Voltage And Current Parameters Setting
3.View telemetry data on OSD 9.Voltage and current parameters setting Setting parameters 1.Click www.hglrc.com... -
Page 11: Setting Up The Receiver
10.Setting up the receiver 1.Receiver connection diagram have found UART1 Open the receiver serial port 2.Click “ ” 3.Set the SBUS receiver www.hglrc.com... -
Page 12: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
4.Set the PPM receiver 5.Set the DSMX receiver 11.VTX serial port use. VTX uses OSD smart audio 1.5.8 VTX connection www.hglrc.com... - Page 13 4. DJI serial port opens 5.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. www.hglrc.com...
- Page 14 In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen. The “Alarms” sub-menu lets you control when the OSD will try to alert you that battery voltage is too low or mAh consumed is too high. www.hglrc.com...
-
Page 15: Gps Parameters Setting
“Set” and press roll-right to power level of the video transmitter. After making the confirm the settings. 12.GPS parameters setting 1. GPS connection diagram 2.Open the GPS serial port www.hglrc.com... -
Page 16: Check Receiver Signal
3.When using the GPS function, remember to configure the serial port (via the Ports tab). 13.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com... -
Page 17: Select Flight Mode Startup Mode
1.Click channel (below are for reference only) 15.OSD settings the OSD Settings, according to the need to choose, drag 1.Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com... -
Page 18: Led Settings
● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. ● The refresh rate of PID and Gyroscope is up to 8K/8K. www.hglrc.com... - Page 19 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
