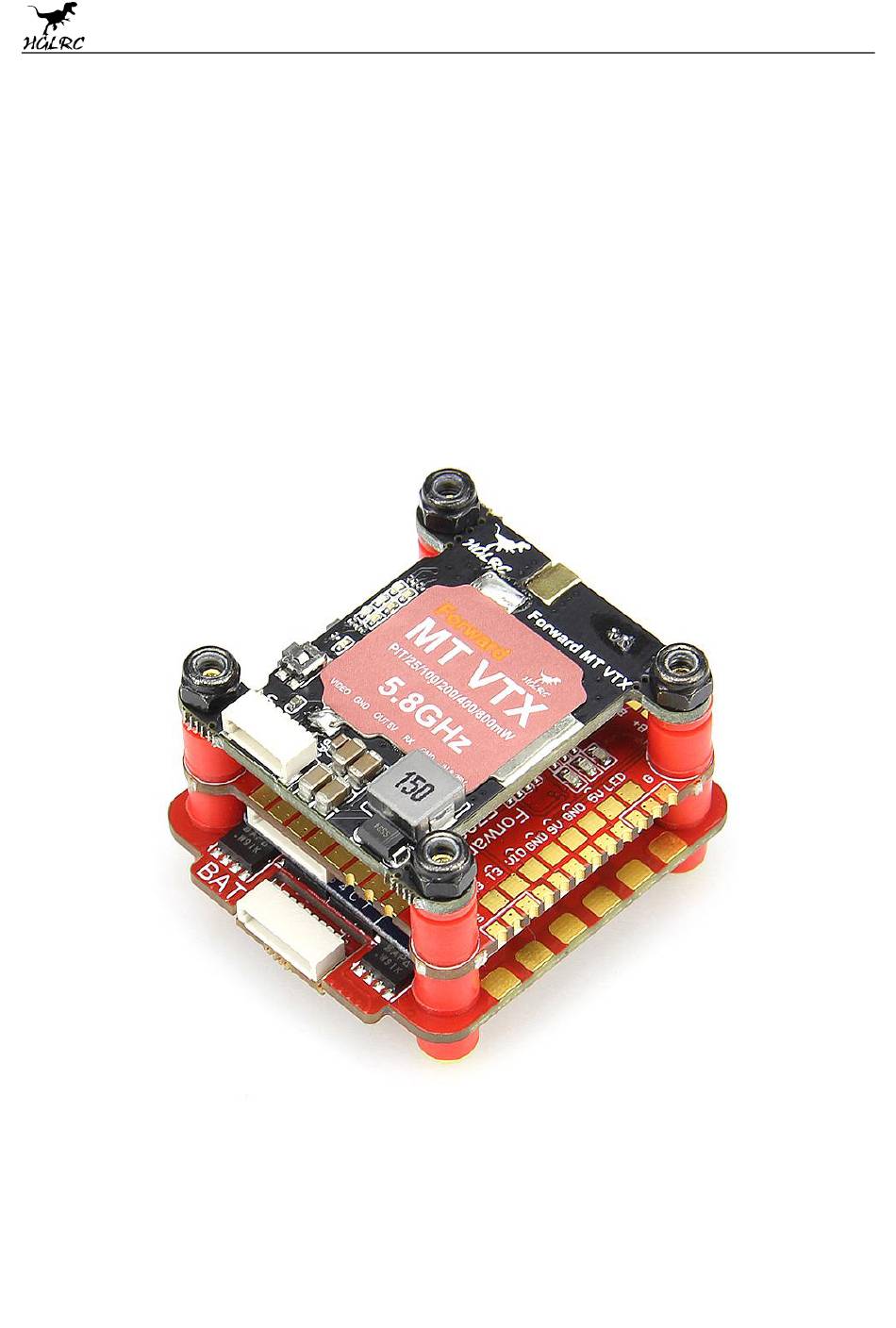

- Page 1 Zeus F760-VTX STACK Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting.....................9 Setting up the receiver..........................10 VTX serial port use. VTX uses OSD smart audio................11 GPS parameters setting...........................12 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 Troubleshooting............................17 ..................Package IncIuded Zeus F760-VTX stack*1 Accessory Package*1 www.hglrc.com... -
Page 3: Product Specifications

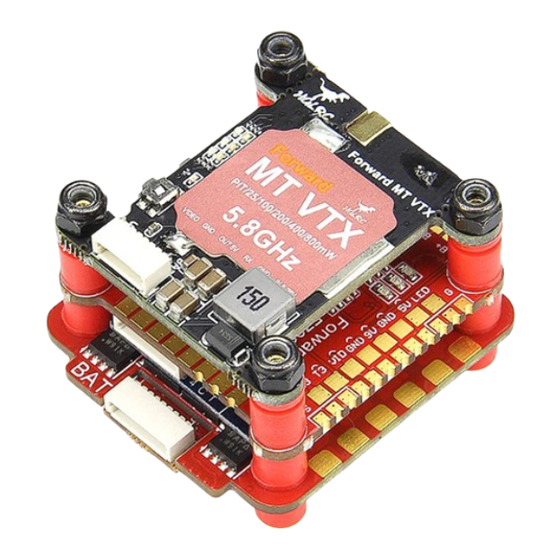

1.Product Specifications Product parameters Model Zeus F760-VTX stack Usage for 100mm-450mm Frame Kit Flight Controller F722 Flight Controller 60A BL32 3-6S 4in1 ESC MT VTX Black Box Support receiver SBUS .IBUS.DSMX Input Voltage 3-6S Lipo BEC Output 5V/3A, 9V/2A LED Output... -
Page 4: Interface Description
2.Interface Description C2 is the default output for camera. To use C1 please enable it in Betaflight. www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5.Click Select firmware version Load firmware Waiting for 6.Click completion It will be prompted upon completion 7. open betaflight configurator computer. Betaflight Automatically assigned port click “Connect” Enter Controller plugged into the setup interface（Different computer COM） ， www.hglrc.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use 1.URAT1 uses the receiver 2.URAT2 3.URAT3 uses VTX image transmission 4.URAT4 uses GPS 5.URAT6 uses ESC telemetry www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com... -
Page 9: Choose Esc Protocol
1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Turn on ESC telemetry 1.Use BLHeli_32 ESC telemetry over a separate wire 2.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry www.hglrc.com... -
Page 10: Voltage And Current Parameters Setting
3.View telemetry data on OSD 9.Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com... -
Page 11: Setting Up The Receiver
10.Setting up the receiver 1.Receiver connection diagram www.hglrc.com... - Page 12 2.Click have found UART1 Open the receiver serial port “ ” 3.Set the SBUS receiver 4.Set the PPM receiver 5.Set the DSMX receiver www.hglrc.com...
-
Page 13: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
11.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram 2.VTX serial port opens. The protocol is selected according to its own VTX protocol. www.hglrc.com... - Page 14 In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen. The “Alarms” sub-menu lets you control when the OSD will try to alert you that battery voltage is too low or mAh consumed is too high. www.hglrc.com...
-
Page 15: Gps Parameters Setting
The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. 12.GPS parameters setting 1. GPS connection diagram www.hglrc.com... - Page 16 2.Open the GPS serial port 3.When using the GPS function, remember to configure the serial port (via the Ports tab). www.hglrc.com...
-
Page 17: Check Receiver Signal
13.Check receiver signal Check the remote control output signal Click 14.Select flight mode startup mode set up the function of remote control switch across the Click channel (below are for reference only) www.hglrc.com... -
Page 18: Osd Settings
Press and hold for 3 seconds to enter the blinking mode switch (LED status light is always on) 2.Blinking mode Steady / Fast Flash / Breathing Light / Colorful Slow Flash LED light can be controlled via CH5(AUX1) of transmitter with Channel_Forwarding enabled. Click enter： resource servo 1 A08 SAVE www.hglrc.com... -
Page 19: Troubleshooting
● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. ● The refresh rate of PID and Gyroscope is up to 8K/8K. www.hglrc.com... - Page 20 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
