LM180

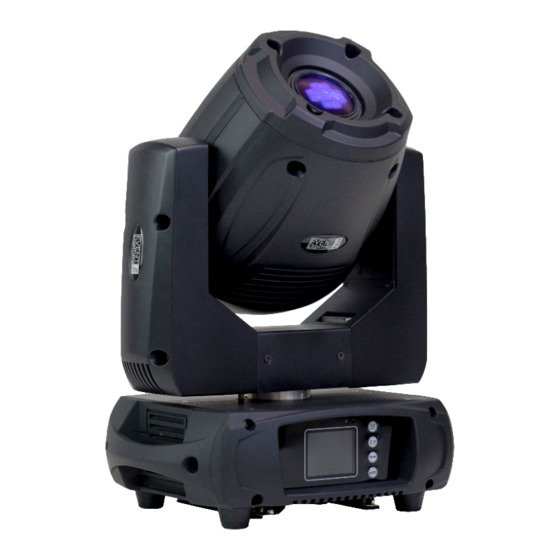

180W LED SPOT HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are
subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting LM180
Summary of Contents for Event Lighting LM180
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 3 Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing and fix it. www.event-lighting.com.au...
-
Page 4: Product Installation
Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au... -
Page 5: Lux Chart
Dimensions Lux Chart Lux Chart @ 16° 2.5m 7.5m Ø Ø Ø Ø Ø 0.70 1.41 2.11 2.81 5.62 19,120 4,780 2,150 1,210 www.event-lighting.com.au... -
Page 6: Colour Wheel
Colour Wheel Dark Blue Green Yellow Magenta Blue Orange Open www.event-lighting.com.au... -
Page 7: Static Gobo Wheel
Static Gobo Wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 8: Rotating Gobo Wheel
Rotating Gobo Wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 www.event-lighting.com.au... -
Page 9: Menu Operation
Menu operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Move down a level. Menu MENU DESCRIPTION DMX Address A001~AXXX DMX Address Setting CH14 14 Channel Mode Channel Mode CH16... - Page 10 Reverse Pan (On/Off) Reverse Pan Reverse Tilt (On/Off) Reverse Tilt Pan / Tilt Select Pan 630°/540°/360° Pan Degree(540°) Select Tilt 270°/180°/90° Tilt Degree(270°) Limit Mode OFF/CEN./R/L Select Edge or Corner Range Mic Sens. 0~99% Microphone Sensitivity Setting Hold on no DMX(On/Off) Hold or no hold When no Signal UI SET Half Colour...
-
Page 11: Dmx Chart
DMX Chart Mode/Channel Value Function 14CH 16CH 0..255 Pan movement Pan Fine 0..255 Fine control of pan movement Tilt 0..255 Tilt movement Tilt Fine 0..255 Fine control of tilt movement Colour 0..15 Open / white 16..31 Colour 1 32..47 Colour 2 48..63 Colour 3 64..79... - Page 12 190..255 Forward wheel spin,slow to fast Rotation Gobo 0..3 4..127 Forward gobo rotation, fast to slow 128..131 Gobo rotation stop 132..255 Reverse gobo rotation, slow to fast Static Gobo 0..14 Open 15..29 Gobo 1 30..44 Gobo 2 45..39 Gobo 3 60..74 Gobo 4 75..89...
- Page 13 128..189 Forward rotation, fast to slow 190..193 Prism rotation stop 194..255 Reverse rotation, fast to slow Speed pan/tilt 0..225 Pan/tilt speed, fast to slow 226..235 Blackout during pan/tilt functions 236..245 Blackout when colour and gobo switching 246..255 Special Function 0..19 20..29 30..39 40..79...
- Page 14 0..255 Gobo speed, fast to slow The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has two channel modes: 14/16, if we set the mode at standard 16 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 17, third one at 33, etc.
-
Page 15: More Functions
More Functions Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via a software upgrade box, without the need to change any mechanical parts. The upgrade box is not included in the package, if you need any further assistance please contact your authorized dealer. -
Page 16: Warranty
Materials: Metal & flame retardant ABS • Finishing: Matte black • IP rating: IP20 • Cooling: Fan • Net Weight: 10.5kg • Rigging: 2pcs omega brackets with 1/4-turn quick locks WARRANTY Please refer to your local dealer or contact Event Lighting Pty Ltd. www.event-lighting.com.au...
