LM75

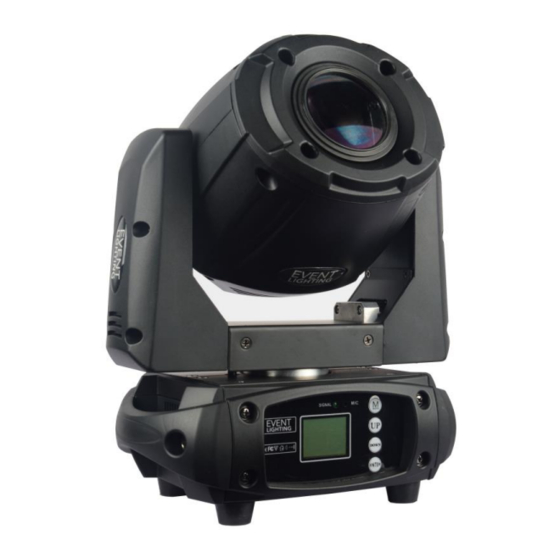

75W LED WASH ZOOM HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting LM75
Summary of Contents for Event Lighting LM75
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Installation
Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au... - Page 4 Dimensions Lux Chart www.event-lighting.com.au...
-
Page 5: Colour Wheel
Colour Wheel Open Blue Green Yellow Magenta Dark Blue Orange Orange-red www.event-lighting.com.au... -
Page 6: Gobo Wheel
Gobo Wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 www.event-lighting.com.au... -
Page 7: Menu Operation
Menu operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Move down a level. Menu MENU DESCRIPTION Address Address A001~AXXX DMX Address Setting Auto Run Auto Run Program 1-8 | Master/Alone Auto Run State... -
Page 8: Dmx Chart
Tilt 180° (default 270°) Tilt 90° Version V1.0 - vX.X Software version DMX Chart Channel Mode Name Function Standard Basic Pan movement Pan-fine Fine control of pan movement Tilt Tilt movement Tilt-fine Fine control of tilt movement Colour Open/white Colour 1 Colour 2 Colour 3 Colour 4... - Page 9 Shutter open Random strobe effect, slow to fast Shutter open Dimmer Dimmer 0..100% Focus In (near) to out (far) Rotating Prism, Prism Gobo & Prism Forwards gobo and prism rotation, fast to rotation slow Stop gobo and prism rotation Backwards gobo and prism rotation, slow to fast Speed Pan/tilt speed, fast to slow...
- Page 10 For example, this device has two channel modes: 13/11, if we set the mode at standard 13 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 14, third one at 27, etc.
-
Page 11: More Functions
More Functions Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via a software upgrade box, without the need to change any mechanical parts. The upgrade box is not included in the package, if you need any further assistance please contact your authorized dealer. -
Page 12: Warranty
Cooling: Fan Housing Materials: Metal & Flame retardant ABS Finishing: Matte black IP rating: IP20 Net Weight: 4 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
