761 Compact IC

20
Example
Connection of a modular system and a 761 Compact IC to a 762 IC In-
terface (if not enough COM ports are available at the PC).
Instruments
• 2.762.0010 IC Interface for 1 system
• 2.732.0010 IC Detector with standard detector block
• 2.733.0010 IC Separation Center with 1 injector
• 2.709.0010 IC Pump
• 2.761.0020 Compact IC with suppressor module
Interconnection
6.2128.130
6.2115.070
PC
6.2134.100
762
6.2134.090

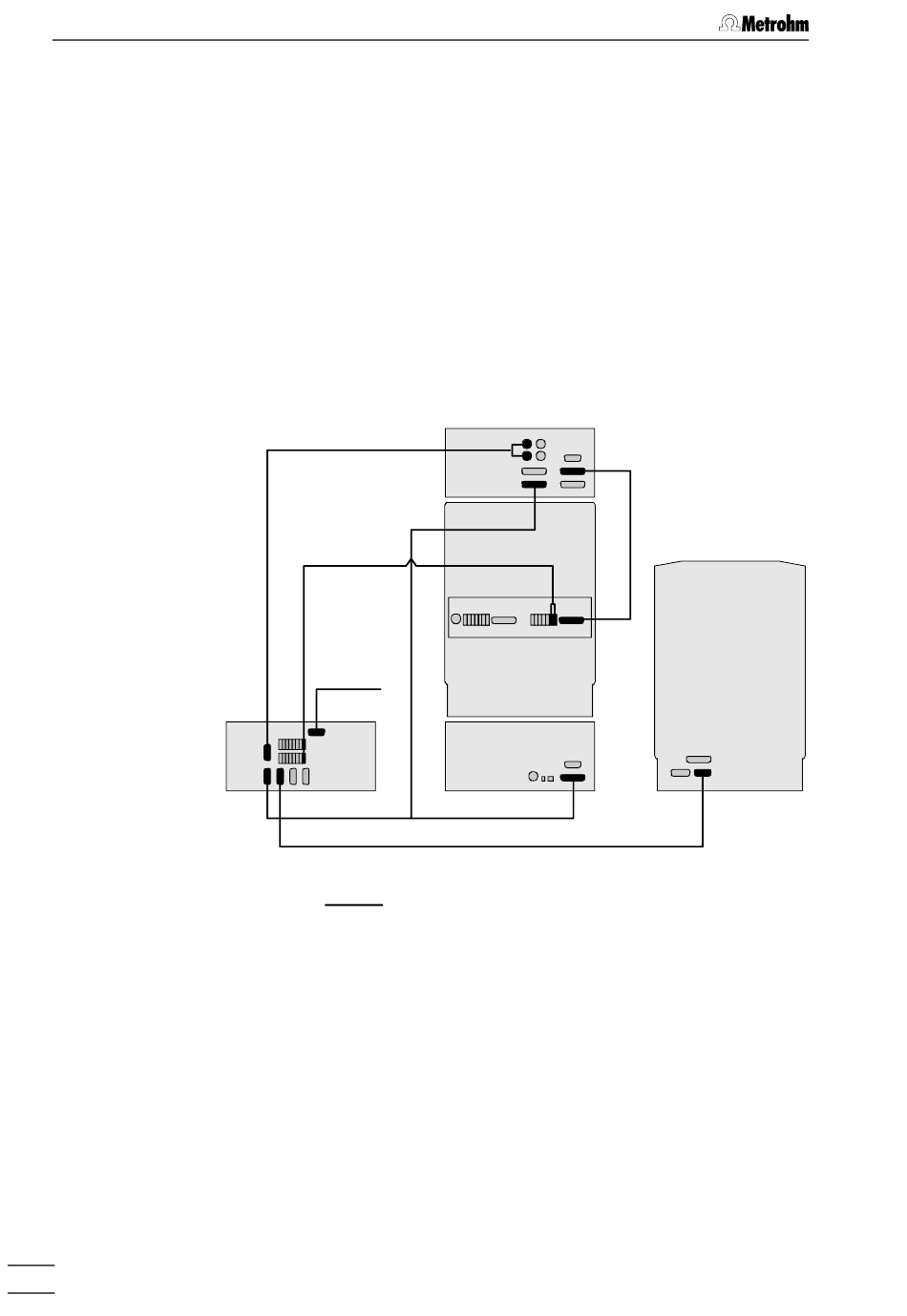

Fig. 14: Connection of 732, 733, 709 and 761

732
733
709
6.2134.100
6.2125.090
(732)
761
762 IC Interface
