Select the file from which you wish to import APTs to the internal database. .af file is a commonly used file
for transferring APTs.

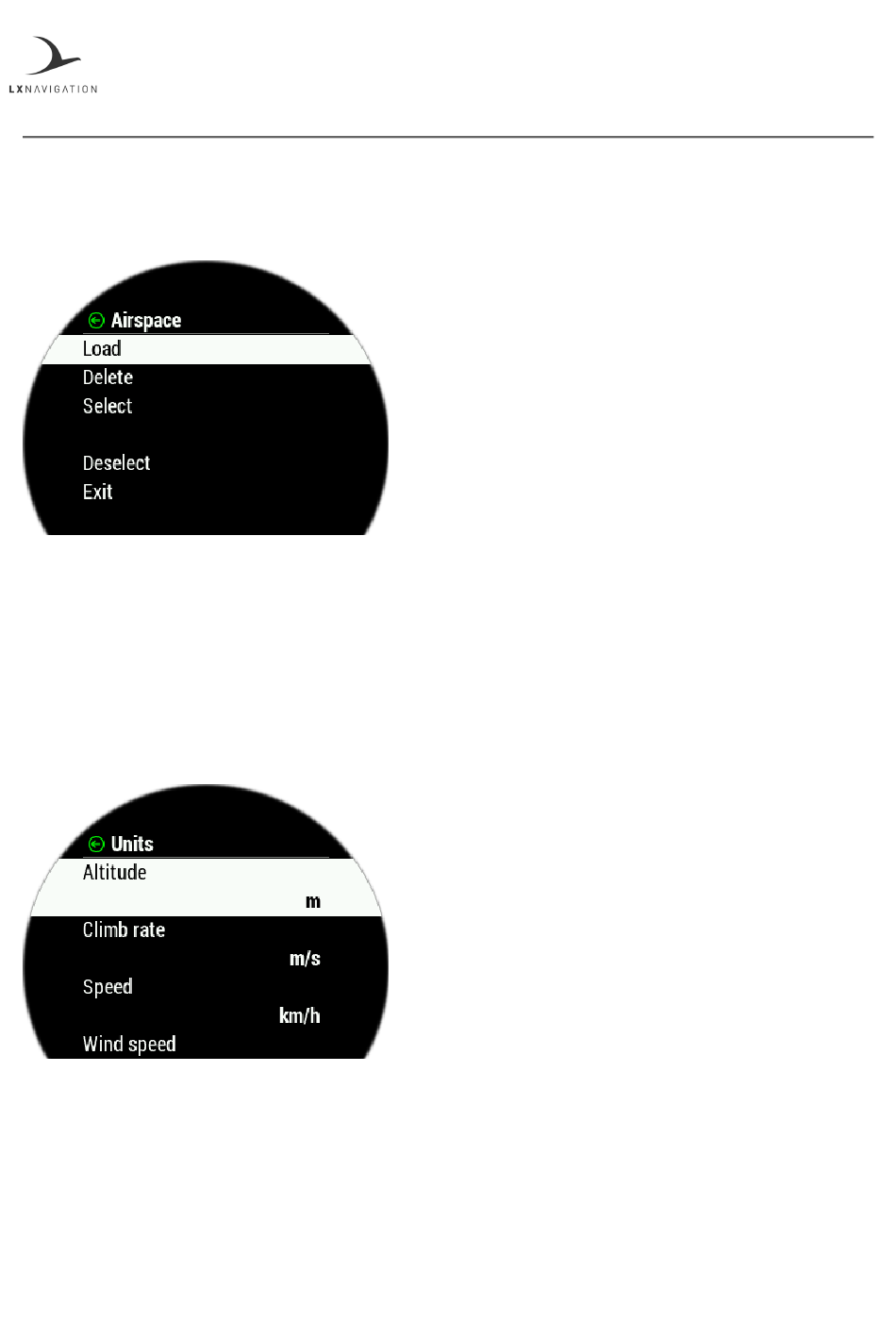

Airspace
A list of all .cub files (up to 20) found in the root of the external microSD card will be listed under Load
Airspace.
Select the file from which you wish to import Airspace data to the internal database.
.cub file is a commonly used file for transferring Airspace data.

3.7.5 Units

The units menu holds the units options for all flight parameters, shown as either an indicator, navbox,
widget or digital needle. Pilot can set units for:
- Altitude (m, ft)
- Climb rate (m/s, kts)
- Speed (km/h, mph, kts)
- Wind (km/h, mph, kts, m/s)
- Distance (km, nm, mi)

3.7.6 Warnings

- Pressure (mbar, inHg)
- Temperature (°C, °F)
- Weight (kg, lb)
- Area (m2, ft2)
