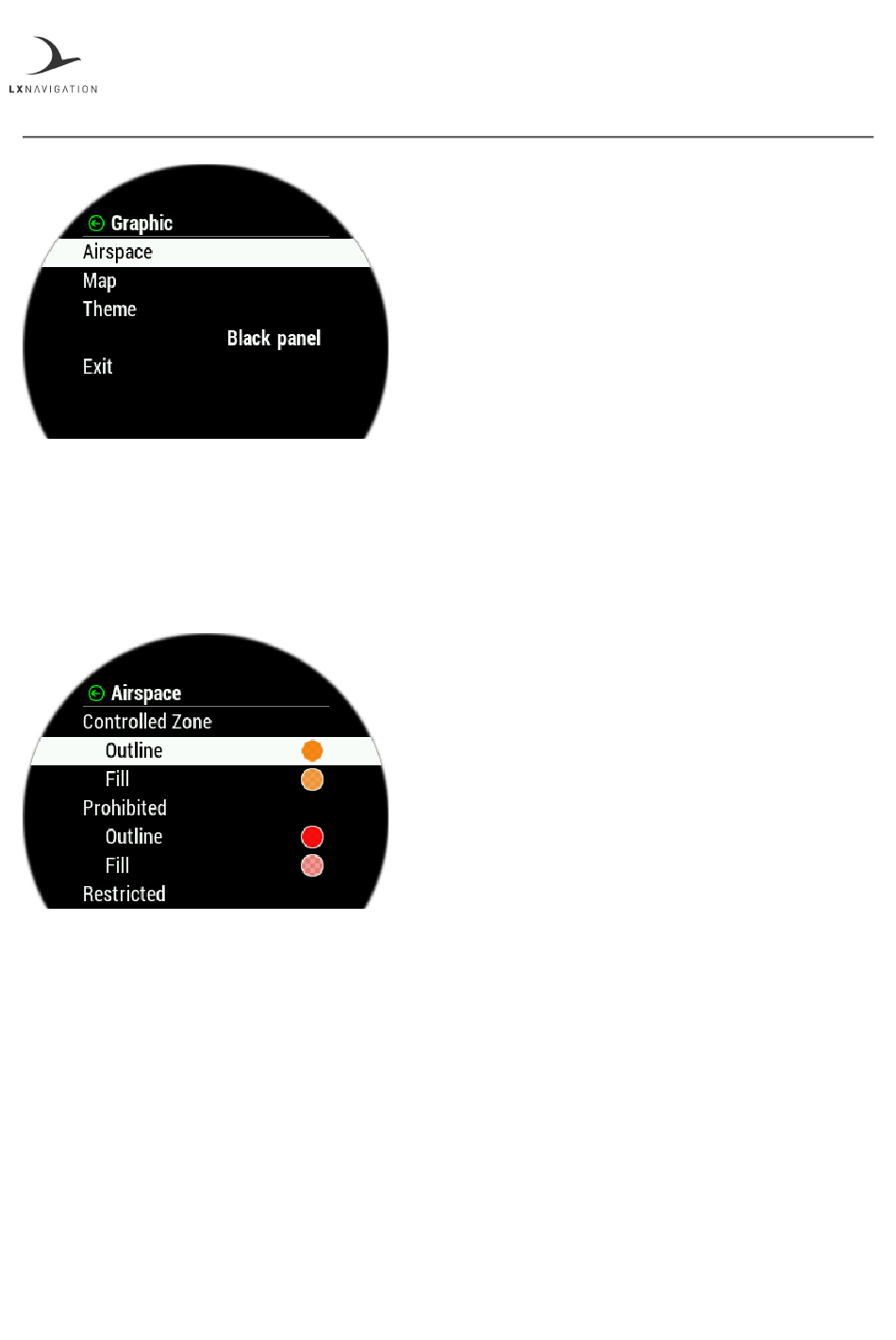

The Graphic setup is where you can set custom colours for Airspace, Map and Task, as well as set font sizes
for map objects. By selecting Theme you can either select "Black panel" for black background or "White
Panel" for white background.
Airspace
In the Airspace menu you following submenus to edit:
Controlled Zone
-
Prohibited
-
Restricted
-
Danger
-
Terminal area
-
Airway
-
Glider
-
Under each submenu you can find Outline and Fill row. Some have only Outline. By selecting each row you
enter the menu with a scroll bar for selecting the colour. As described in point 1.4 Basic use & gestures.
Once you have adjusted the colour you want to use, press back on the top left corner of the display and
the settings will be saved and you will return to the submenu.
The same logic applies to set colour for Fill.
Military
-
Other
-
Class A, B
-
Class C
-
Class D
-
Class E
-
Class F
-
