Document Name:
Traffic Monitor user's manual
In order to use this page to its maximum extent, the user should first import turnpoint, airspace, and
airfield files. For more information on this subject, please refer to Setup/Transfer/Load Turnpoints.

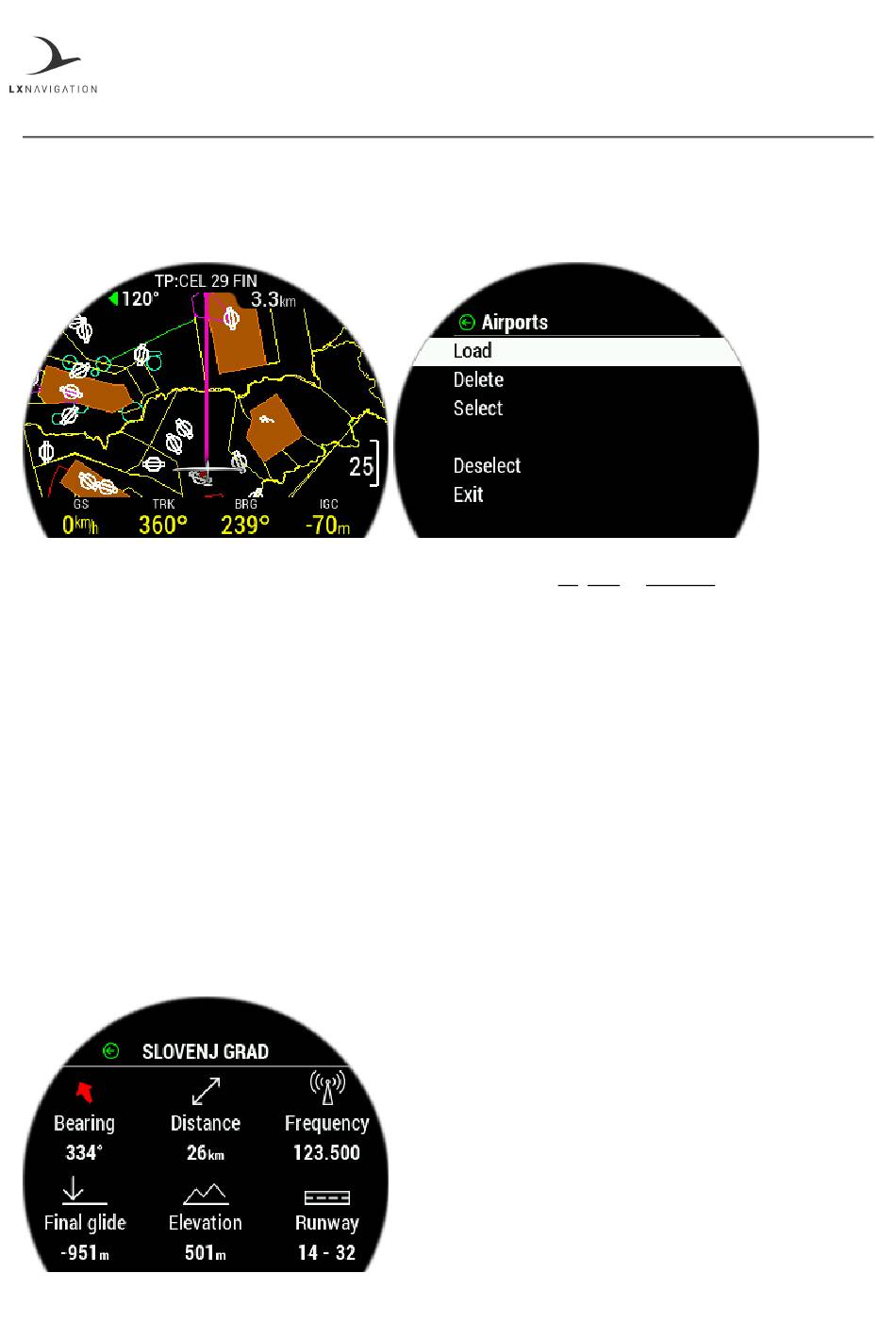

At the top of the screen, the current navigation page is noted with TP, APT or RTE/TSK, followed by the
name of the current navigation point.
In the next line, the steering course is shown on the left and distance to turnpoint on the right.
On the right side of the screen, a scale for zoom level is shown.
In the far bottom a NavBox line containing four NavBoxes is shown. This NavBox line can be manipulated
with the use of the 'BOX' button. Pressing the 'BOX' button will hide it, for a greater view of the map.
Above the NavBox line, in the middle, a glider (Powered plane for powered aviation) is located with two
lines. The first one, showing in line with the aircrafts chord the current course and the second, toward the
navigation point.
Pressing the left push-rotary knob will open additional info of the point, showing the following info:
Bearing, indicated with a numeric value and whether or not it is in final glide, with the colour of the
-
arrow (Red for out of final glade and green for in final glide)
Distance
-
Final glide
-
Elevation
-
Turning the left push-rotary knob will change the current zoom level on the map.
Version: 1.8
Page 13
