3.4 Flarm warning

Appears when the Flarm device sends a warning to its displays. The page itself shows all relevant info to
the pilot with symbols, graphics and numbers.

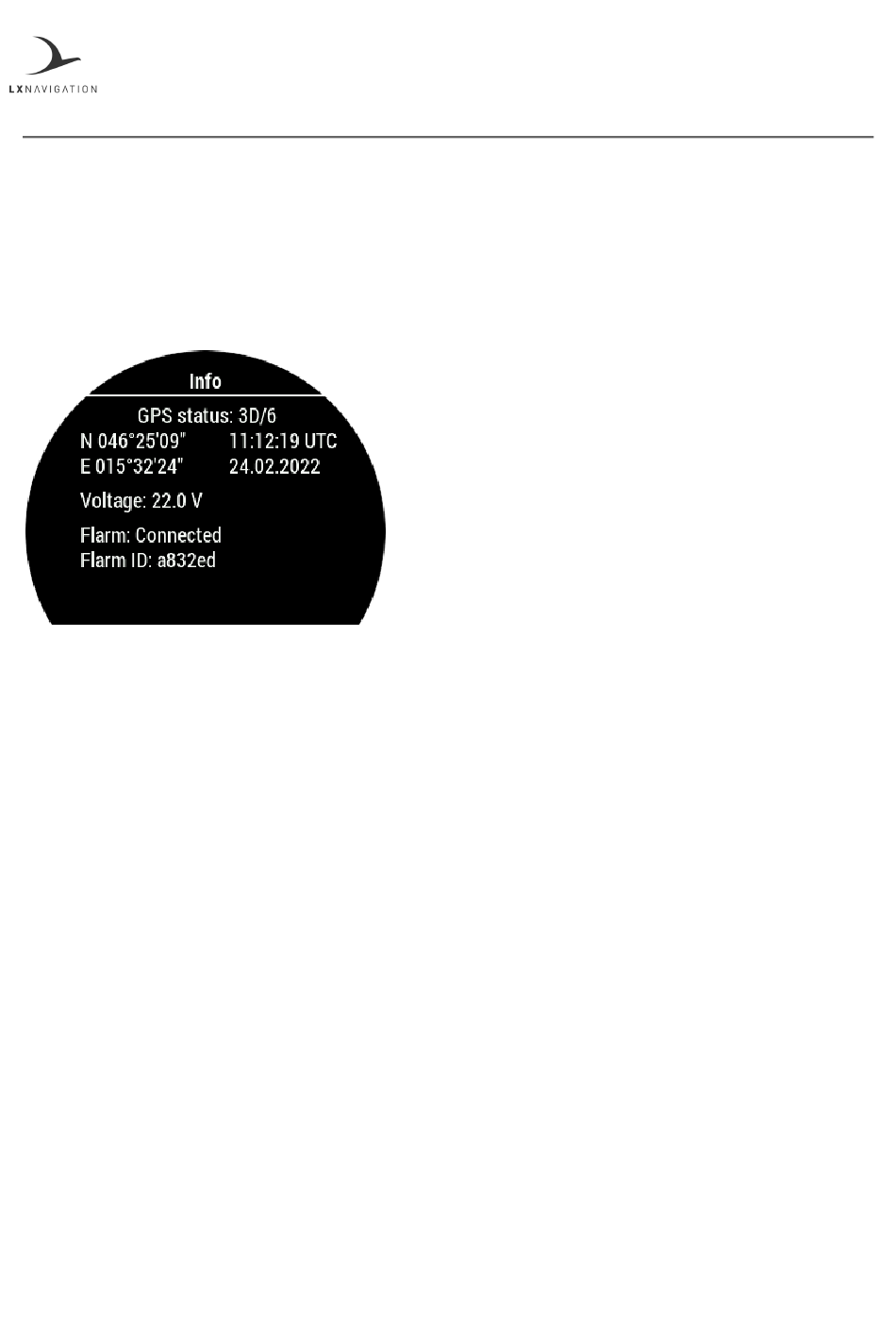

3.5 Info page

Info page shows the following info:
current GPS status
-
date
-
latitude
-
longitude
-
UTC time
-
Voltage of external battery
-
Flarm status
-
Flarm ID
-
Pressing the right 'VOL' button will open the VOL submenu, where we can see the Flarm, GPS and battery
status indicator, and the following values can be set:
Volume
-
Brightness
-

3.6 Flight statistics page / Logbook

Flight statistics page appears instead of the logbook page only when the unit is in flight mode.
It shows us our barograph, with time on the x-axis and altitude on the y-axis.
The maximal altitude, flight duration and take-off time are shown.
When not in flight mode, Logbook is shown.
Pressing the right 'VOL' button will open the VOL submenu, where we can see the Flarm, GPS and battery
status indicator, and the following values can be set:
Volume
-
Brightness
-
