Tools Overview - K2 Systems Splice Foot X Installation Manual

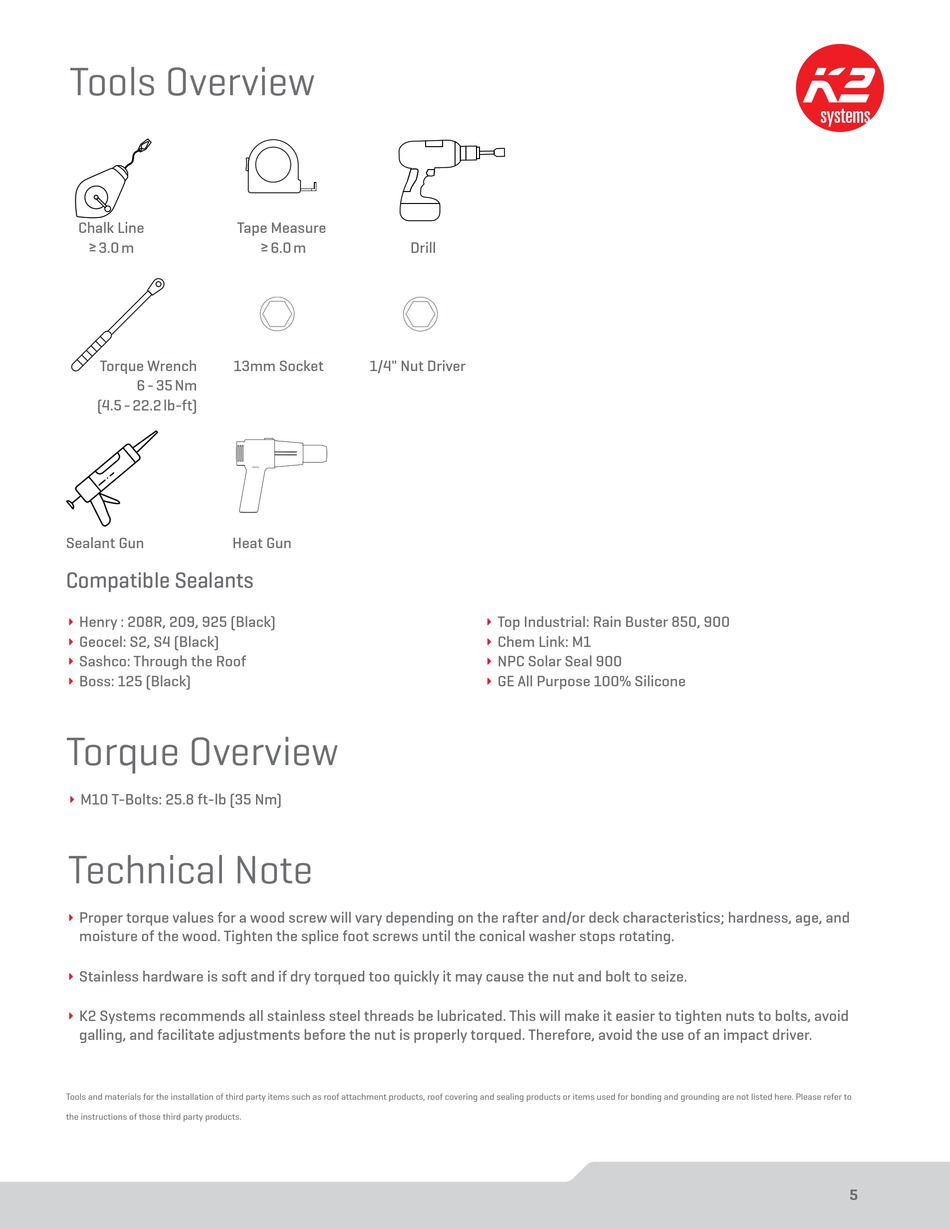

Tools Overview

Chalk Line Tape Measure
≥ 3.0 m
Torque Wrench 13mm Socket
6 - 35 Nm
(4.5 - 22.2 lb-ft)
Sealant Gun Heat Gun
Compatible Sealants
T Henry : 208R, 209, 925 (Black)
T Geocel: S2, S4 (Black)
Sashco: Through the Roof
T
Boss: 125 (Black)
T
Torque Overview
M10 T-Bolts: 25.8 ft-lb (35 Nm)
T
Technical Note
T Proper torque values for a wood screw will vary depending on the rafter and/or deck characteristics; hardness, age, and
moisture of the wood. Tighten the splice foot screws until the conical washer stops rotating.
T Stainless hardware is soft and if dry torqued too quickly it may cause the nut and bolt to seize.
K2 Systems recommends all stainless steel threads be lubricated. This will make it easier to tighten nuts to bolts, avoid
T
galling, and facilitate adjustments before the nut is properly torqued. Therefore, avoid the use of an impact driver.
Tools and materials for the installation of third party items such as roof attachment products, roof covering and sealing products or items used for bonding and grounding are not listed here. Please refer to
the instructions of those third party products.
≥ 6.0 m Drill
1/4" Nut Driver
T Top Industrial: Rain Buster 850, 900
T Chem Link: M1
NPC Solar Seal 900
T
GE All Purpose 100% Silicone
T
5
