We support PV systems
Formerly Everest Solar Systems

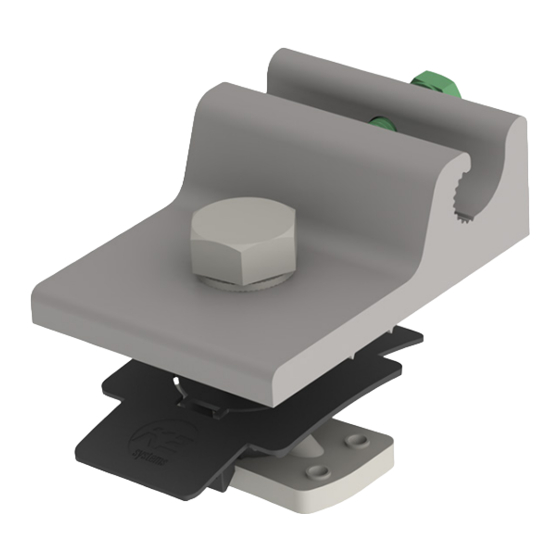

Everest Ground Lug
QUICK GUIDE
k2-systems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Everest Ground Lug and is the answer not in the manual?

Questions and answers

Related Manuals for K2 Systems Everest Ground Lug

Summary of Contents for K2 Systems Everest Ground Lug

  • Page 1 We support PV systems Formerly Everest Solar Systems Everest Ground Lug QUICK GUIDE k2-systems.com...
  • Page 2 Tools overview To attach the Everest Ground Lug, insert the MK3 slot nut of the preassembled ground lug into the top channel of the CrossRail. While slightly lifting the plastic tabs, rotate 90 degrees clockwise to engage the MK3 into the channel.
  • Page 3 Insert a #6 or #8 AWG solid copper wire and tighten terminal screw to 35 - 60 in-lb using a 7/16" socket.
