Summary of Contents for K2 Systems S-Dome

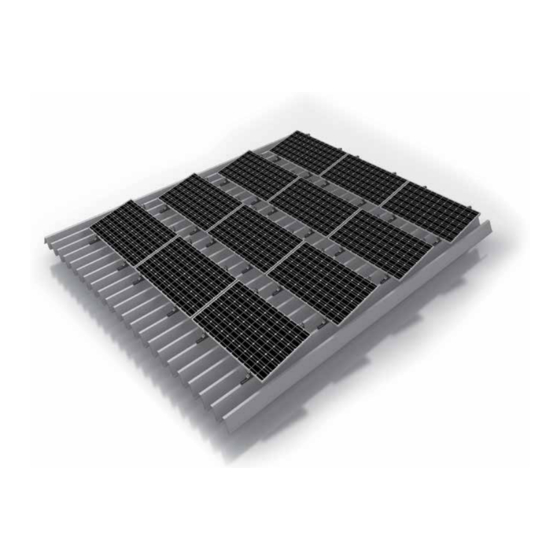

- Page 1 Mounting systems for solar technology ASSEMBLY INSTRUCTIONS S-Dome Small SyStem...
- Page 2 Table of conTenTs TABLE OF CONTENTS THE COMPANY SAFETY REGULATIONS MATERIALS REQUIRED TOOLS REQUIRED ASSEMBLY Table of contents 2 | 19...
- Page 3 PaRTneR WITH a sYsTeM With sophisticated, fully developed product ideas and obvious customer-orientation, K2 Systems is your friendly partner in the field of mounting systems for solar technology. International customers appreciate the tried and tested designs for use on roofs and in outdoor and individual solutions.
- Page 4 With disregarding our general installation and assembly instructions and not using all system components and assemblies according to these instructions as well when components are used, which were not obtai- ned from us, K2 Systems is not liable for any resulting defects and damages. Warranty is excluded in such cases.
- Page 5 THe MaTeRIals ReQUIReD In order to install the K2 Systems S-Dome small installation system, the following listed system components are essential. The item quantities are calculated on the basis of the respective requirements. The listed item numbers facilitate the comparison of items.
- Page 6 Glance: oVeRVIeW of THe Tools K2 Systems mounting systems are designed to ensure effortless assembly. The required tools are not included in the scope of supply. Here we have listed them together for ease of reference. Torque wrench...
- Page 7 The K2 S Dome S1000 system is suitable for modules with a frame height of 34 - 50 mm. This system is not suitable for thin-film modules. ¬ Modules with an area of up to flat of 2m and a width of 950 to 1050 mm can be used. Installation of S-Dome small System 7 | 19...
- Page 8 InsTallaTIon s-DoMe sMall sYsTeM: sTeP bY sTeP mounting the multiRail von 8 Use two self-tapping screws to fasten the MultiRail rail to the center of the crest. To do that the rail has to be pre- drilled with 2 holes with 6mm diameter each, an appropri- ate EPDM strip material has to be used to seal between the trapezoidal sheet and the rail.
- Page 9 M8 x 25 Allen bolts and S8 locking washers. Torque: 16 Nm Materials required: Dome S1000 small, Allen bolt DIN 912 M8 x 20, S8 locking washers. Installation of S-Dome small System 9 | 19...
- Page 10 Insert the pre-assembled middle piece of the FlexClamp set into the channels of the domes and secure by tightening the bolt. Torque: 14 Nm Materials required: Dome S1000 small, Dome SD small, FlexClamp small set Installation of S-Dome small System 10 | 19...
- Page 11 THanK YoU foR cHoosInG a K2 MoUnTInG sYsTeM. Ready! Systems from K2 Systems are fast and simple to install. We hope these instructions have helped you in this. Please contact us if you have any questions or suggestions for improvements.
- Page 12 Unit 46 Easter Park Benyon Road Aldermaston, Berkshire RG 7 2PQ United Kingdom Tel. +44 (0) 1189 701280 info@k2-systems.uk.com www.k2-systems.uk.com Montageanleitung s-Dome small | Gb3 | 0813 | subject to change. Product illustrations are exemplary illustrations and may differ from the original.
