Part B: Mount Placement and Installation for Rafter Connection
To maintain flashing performance, avoid installation when the temperature of the roof and/or butyl is below 22F or
!
above 176F. K2 EverSeal must be installed on a dry surface.
1
!

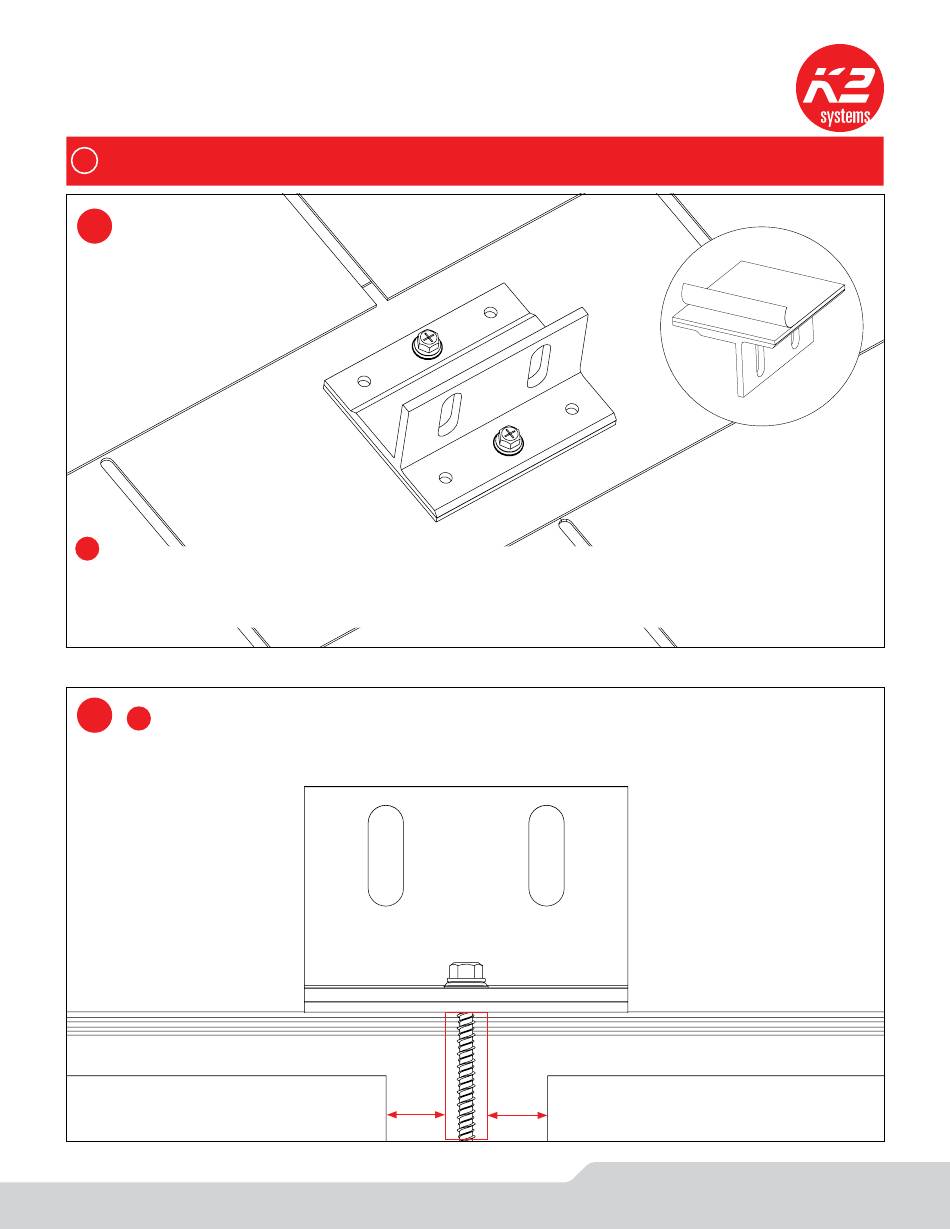

Locate the rafter and clean roofing surface for mount placement. Peel back protective paper from butyl, and stick down
mount on a single shingle course with the two center holes lining up over the rafter. Position all mounts in the same
direction with the long side towards the ridge. Drive provided lag screws into the rafter until the conical washer stops
rotating, providing a positive seal. Do not over torque. It should be tightened until the conical washer stops rotating.
2
The distance from the edge of the rafter and the wood screws must be at least 5/16" from the edge.
!
NOTE: Minimum Edge Distance = 1.5D Where D is the diameter of the screw.
NOTE: The screw shall hit the area that is marked by the red box.
5/16" min. 5/16" min.
