K2 Systems Splice Foot X Installation Manual page 15

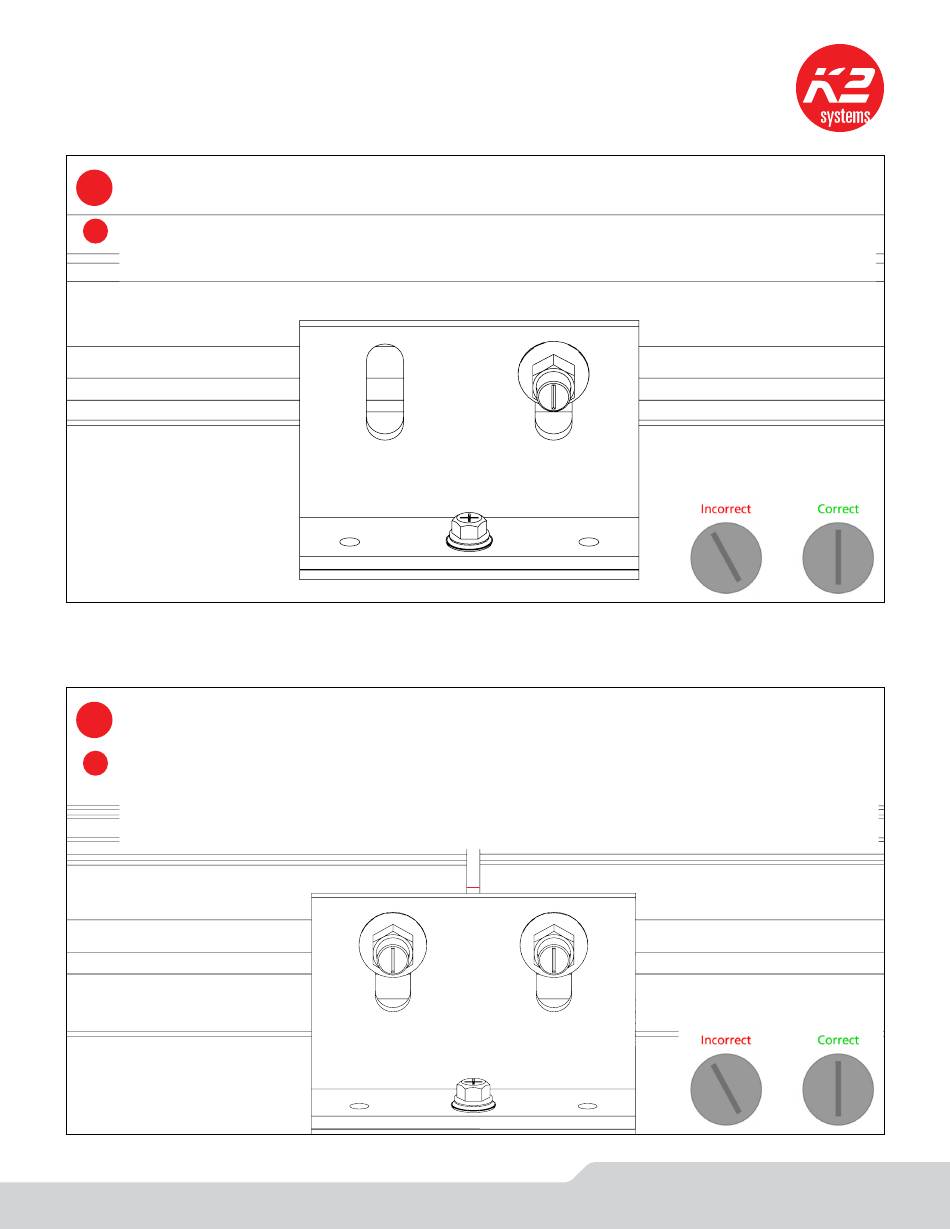

Part F: Attaching CrossRail
A
Attaching Single CrossRail
Position and install rail on back side of Splice Foot towards the ridge, as shown in the image. Insert only one T-Bolt
!
through one Splice Foot slot and into side channel of CrossRail. Turn the T-Bolt clockwise ensuring that the mark at
the end of the shaft is vertical, indicating proper alignment. Tighten to 25.8 ft-lbs (35 Nm).
B
Splicing Two Rails
When connecting two rails to the Splice Foot, insert two T-Bolts through the Splice Foot slots and into side
!
channel of CrossRail. Turn the T-Bolts clockwise ensuring that the mark at the end of the shaft is vertical,
indicating proper alignment. Leave a 1/8" gap between rails in the center of the Splice Foot.
Tighten to 25.8 ft-lbs (35 Nm).
Note: Rail connector function for Splice Foot is only compatible with mill rail.
1/8" gap
