K2 Systems Splice Foot X Installation Manual page 12

3

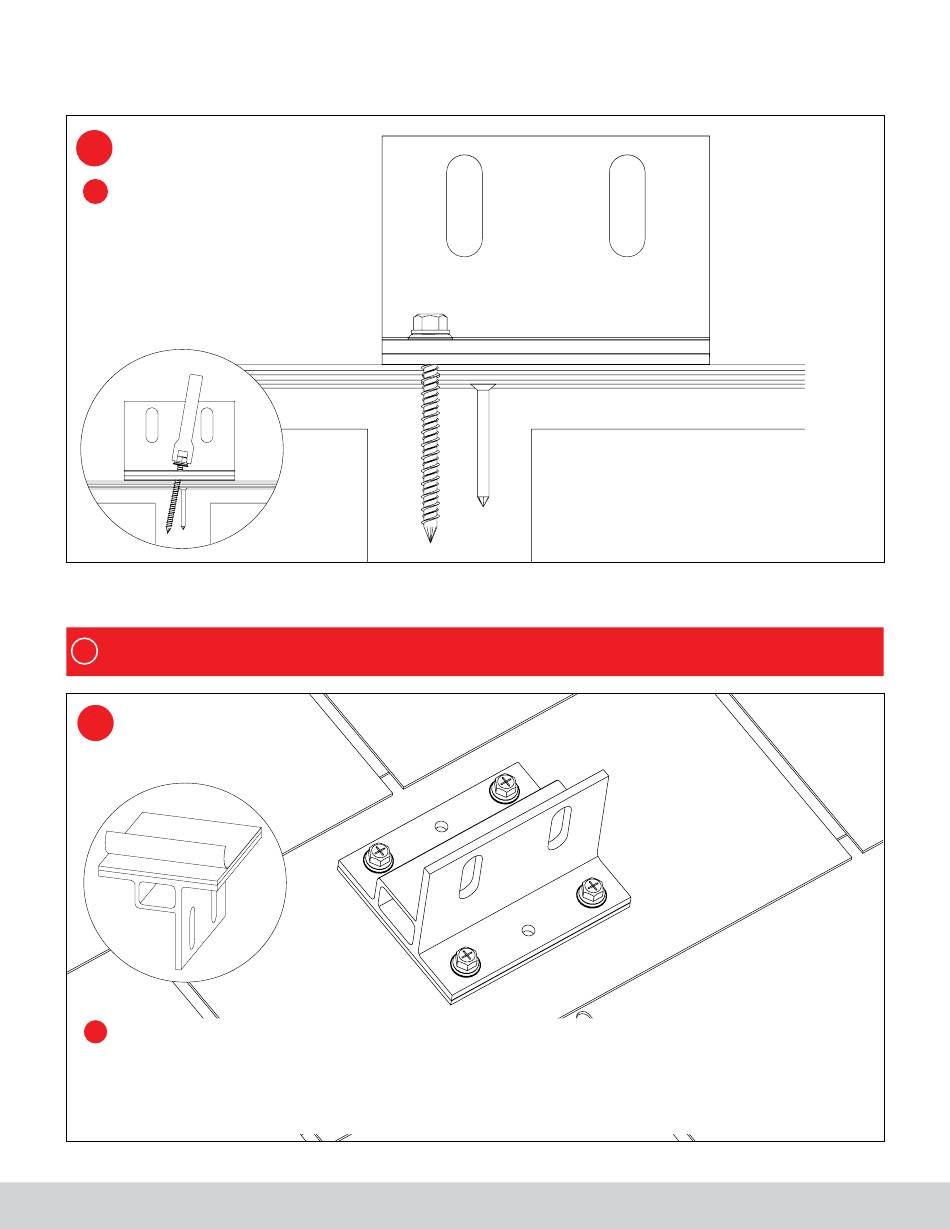

Modified Rafter
If the screw hits a nail under the shingle,
!
there are a few solutions:
1. Leave the nail and use the rest of the
holes if possible
2. Remove the nail
3. Angle the driver to avoid the nail
Part C: Mount Placement and Installation for Deck Connection
To maintain flashing performance, avoid installation when the temperature of the roof and/or butyl is below 22F or
!
above 176F. K2 EverSeal must be installed on a dry surface.
1
!
For deck attachments, follow steps in B2, but only use Splice Foot screws in the four corners of the mount. When
possible always attach mounts to the rafter and only use deck attached as a secondary option when rafters are
not within mounting zones for the array. Follow K2 engineered calculations and span charts for deck attachments.
Ensure that the mount faces toward the ridge of the roof. When deck attaching check for positive engagement into
plywood and avoid plywood seams. It should be tightened until the conical washer stops rotating.
12
