Assembly
Part A: Marking the array and mounting locations
1

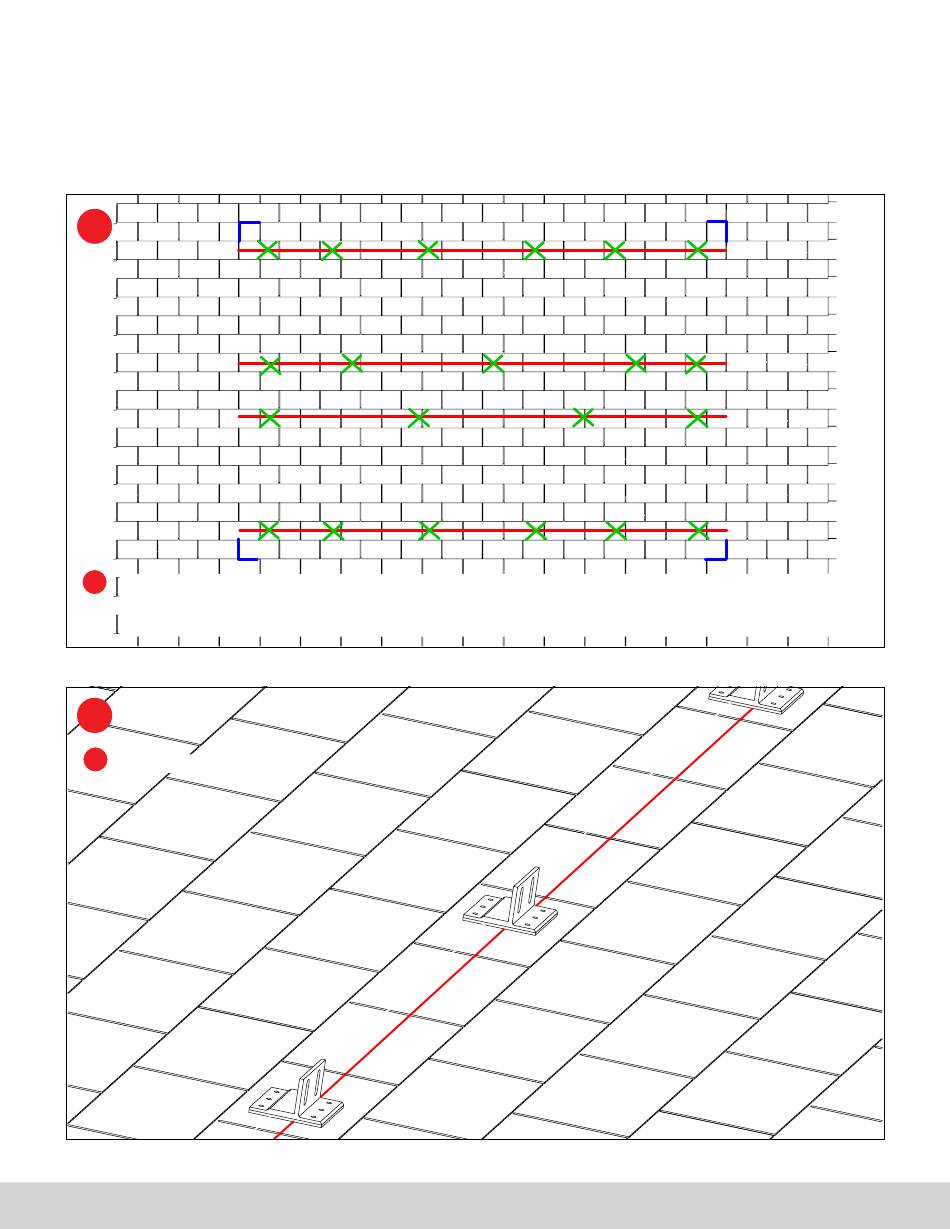

Corner out and mark array on roof. Snap chalk lines for rail location within shingle course. (Refer to module
!
manufacturer frame clamping zones). Mark mounting locations over rafters and chalk lines within shingle course.
Refer to engineering letters for allowable mount spacing. It is best practice to stager mounts.
2
!
Line up mounts on chalk line.
