Transport, Installation and Connection
4.9
Installation
All installation and connection work may be carried out by
qualified and approved specialist staff only ! The legal
regulations as well as adjustment instructions of the plant
operator have to be observed!

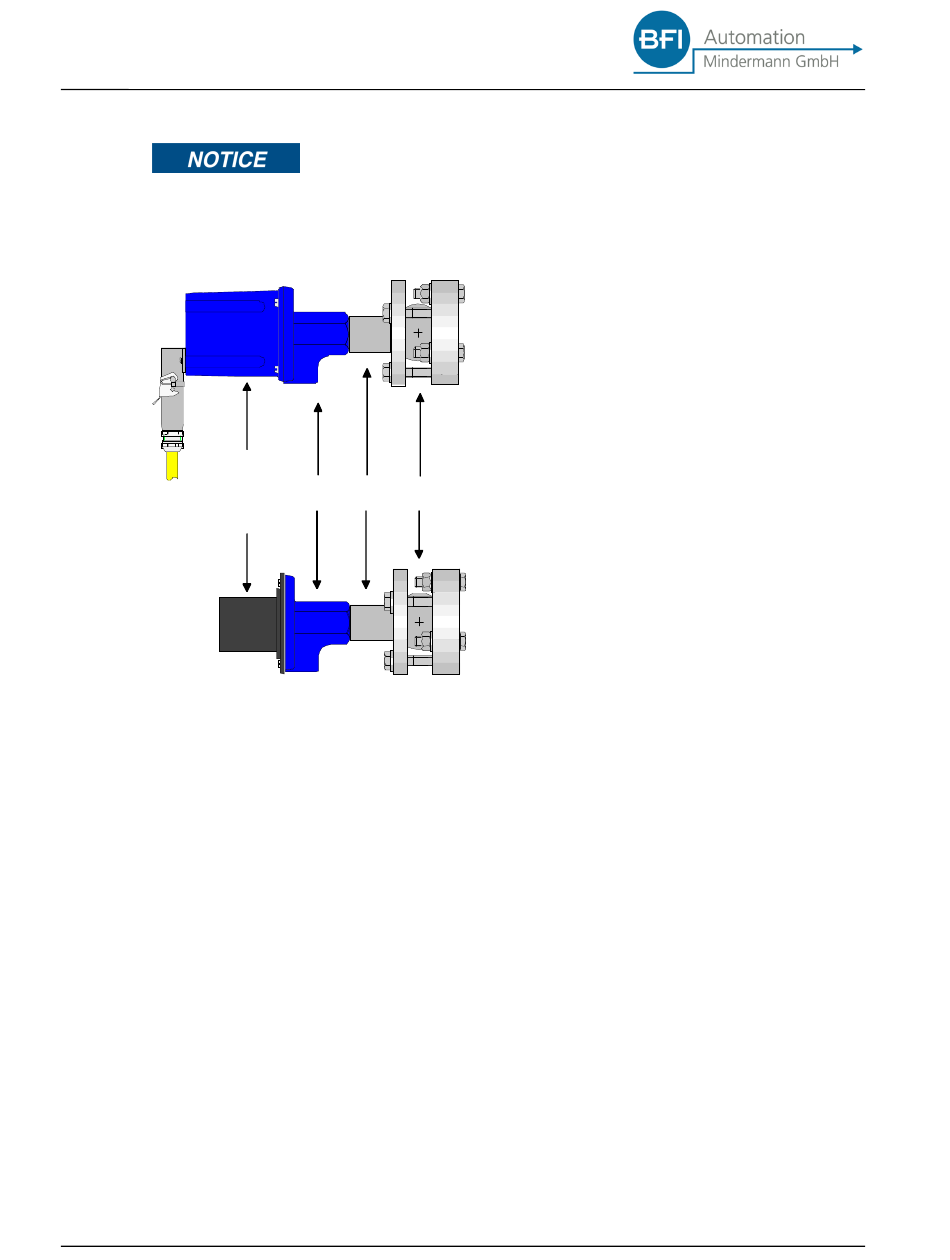

1
Compact Flame Controller
2
Optical alignment device
3
Purge air flange
The mounting flange has slots for easy installation of the
compact flame controller housing. Tighten all four M5
bolts.
The sight tube connection has a G1" internal pipe thread.
4-4
1
3
4
5
2
4
5
Heating insulator
Swivel mount
