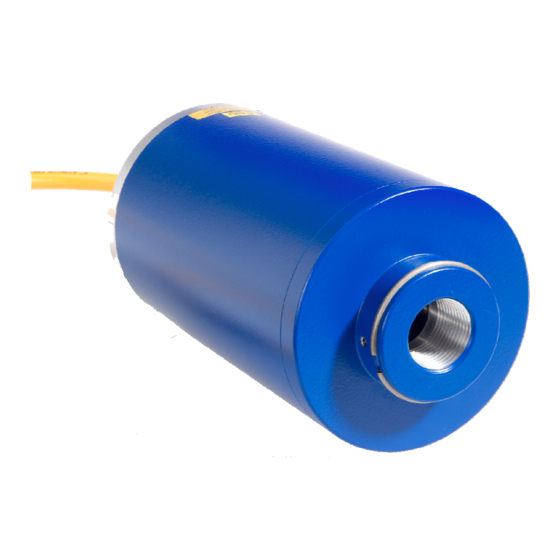

COMPACT FLAME CONTROLLER
TECHNICAL DESCRIPTION
Important:
This data sheet is intended for authorized service personnel and engineers
of combustion engineering who have sufficient experience with the installa-
tion and the use of flame monitoring devices. We gladly help you if you still
have no experience with flame monitoring devices of BFI Automation.
Please contact BFI Automation if you have questions or if you require any
support. Read this technical description carefully it contains all technical
references!
BFI – Automation Dipl.-Ing. K.-H. Mindermann GmbH, Eggerscheidter Str. 57, D-40883 Ratingen
Phone. +49 (0) 2102 96 82 – 0, Fax +49 (0) 2102 9682 – 42
CFC 2000
EDITION: TB CFC2000-JMM REV.1
:
E-Mail
info@bfi-automation.de
BFI
Automation
technology for your future
Advertisement
Table of Contents
Related Manuals for BFI Automation CFC 2000
Summary of Contents for BFI Automation CFC 2000
- Page 1 We gladly help you if you still have no experience with flame monitoring devices of BFI Automation. Please contact BFI Automation if you have questions or if you require any support. Read this technical description carefully it contains all technical references! BFI –...
- Page 2 Automation technology for your future Compact Flame Controller CFC 2000 UV, UV1, IR, IR1, IR2 - Flame scanner with integrated flame amplifier and flame relay. - TÜV approved, DIN-DVGW, DIN-CERTCO certified - For intermitted, continuous operation and 72-hours operation - Type UV, UV1 :...
- Page 3 Selection of the current output 0 or 4 to 20mA The switch over of the current output of the ried out by the special software which is avail- compact flame controller CFC 2000 will be car- able from BFI Automation. Selection of the right modulation filter...
- Page 4 Automation technology for your future flame root combustion area primary air fuel changing of frequency and amplitude in relationship to the distance of the flame root ball flange how to adjust in the right way sight tube mounting flange flame scanner adjustment angle 30°...
-
Page 5: Installation
Automation technology for your future Installation The pin assignment of the connector is shown in quest. The burden of 250 ohms should always the wiring diagram. not be exceeded. The output signal 0(4)-20mA for flame intensity is The device is immediately ready for operation af- not separated by the supply voltage, so the sig- ter switch-on of the supply voltage. -
Page 6: Standard Housing
Automation technology for your future Standard Housing B FI B FI Automation B FI B FI Automation technology for your future technology for your future Type 8.xx Typ e Ser.-No.: Ser.-No.: 24Vdc Germany 24V dc Germany G1/2 purge air Flame Proof Housing 2 2 3 LED green = intensity sensitivity... -
Page 7: Technical Data Sheet
Automation technology for your future Technical Data Sheet Spectral Sensitivity 270 to 420 nm 190 to 500 nm 300 to 1050 nm 1050 to 2700 nm Viewing angle 3° Power supply 24 V DC +/-15% Current consumption ca. 300 mA Ambient temperature range -20°C...+70°C Current output...
