Setting elements

3.5.1

Sensitivity potentiometer

The gain of the compact flame controller is adjusted with
a potentiometer. The adjustment can be done during op-
erating.The sensitivity potentiometer can be found on the
back of the housing.
To the potentiometer applies: Increase sensitivity by turn-
ing clockwise!
The potentionmeter can be set in 24 full turns from 0 to
100 % for standard housings and 10 full turns for Ex-proof
housings.
Factory setting:
3.5.2

Select the current output

0-20 mA
3-4
100% by CFC200UV, UV1 and IR
50% by CFC200IR3

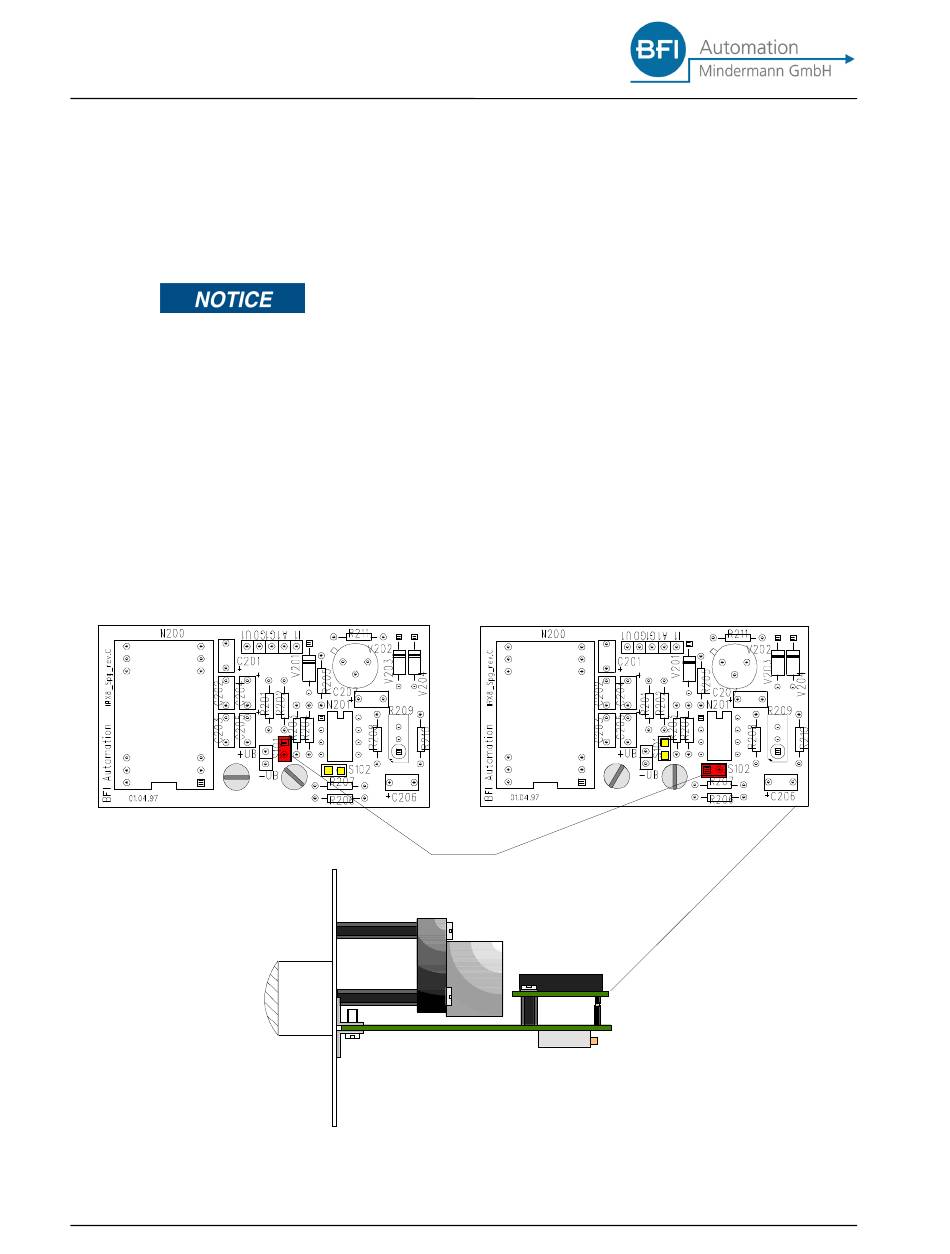

Jumper
4-20mA
