Installation
The pin assignment of the connector is shown in
the wiring diagram.
The output signal 0(4)-20mA for flame intensity is
not separated by the supply voltage, so the sig-
nal refers to the operating voltage measures. If
this should lead to problems, a corresponding
isolating transformer can be provided upon re-
Pin/Terminal
Description
1
Flame relay: Root
2
Flame relay: Contact flame ON
3
Flame relay: Contact flame OFF
4
power supply: +24 V DC
5
power supply: 0V (GND)
6
current output 0(4)-20 mA
7
switch over canal 1 / canal 2 – 24V DC
8
failure indication output +24V DC
CAUTION: In order to guarantee a proper operation the compact
flame controller must be tested several times at all conditions. The
burner has to be started and stopped several times (the flame relay
!
must always interrupt reliably with no flame on). Carry out these tests
CAUTION
while different neighbour burners are started and stopped as well as
on different boiler loads. This is a vital assumption for a proper and
reliable operation.
quest. The burden of 250 ohms should always
not be exceeded.
The device is immediately ready for operation af-
ter switch-on of the supply voltage.

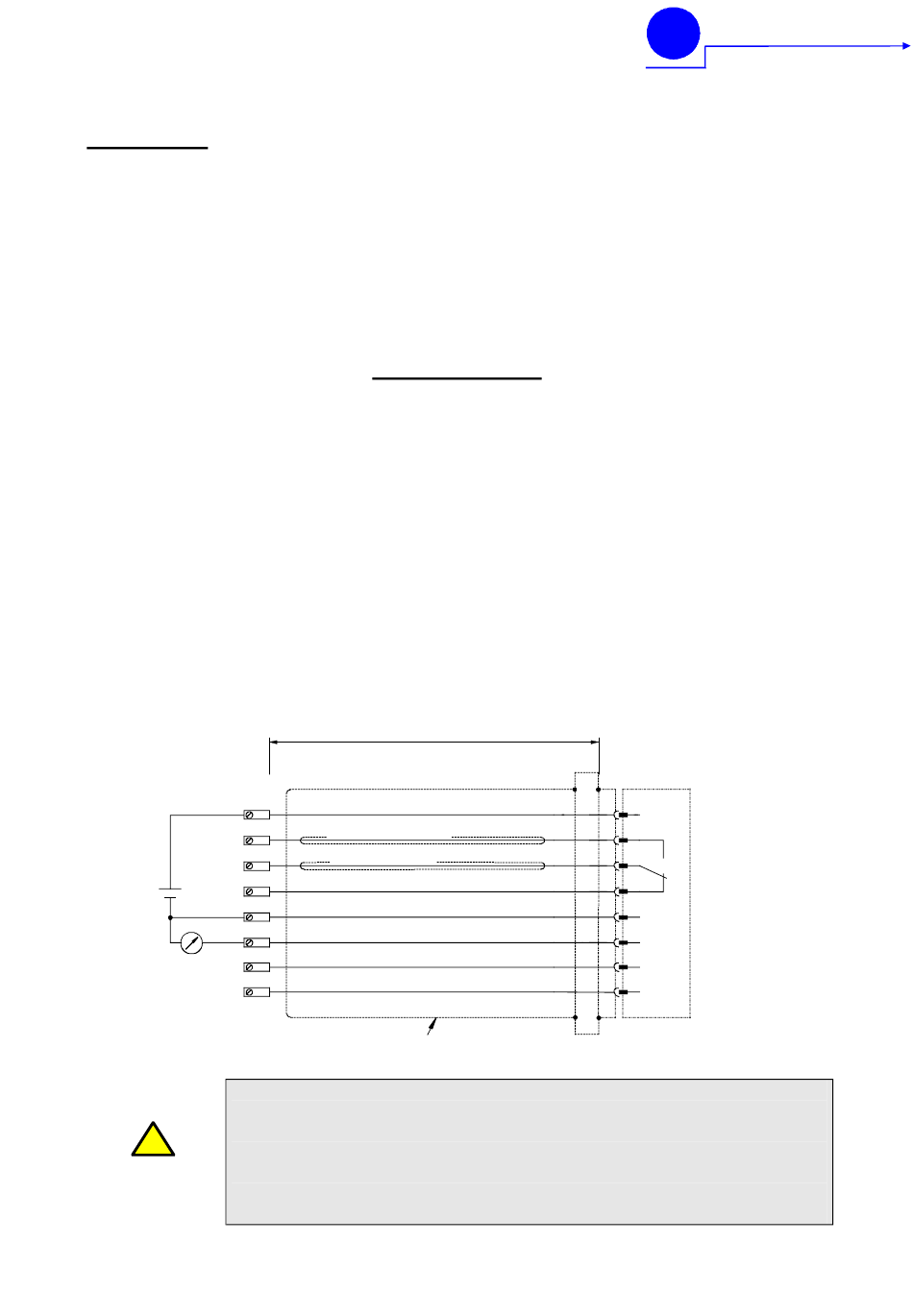

Wiring Diagram
BFI-special cable KW5
power supply +24V DC
flame relay "flame ON"
flame relay "root"
flame relay "flame OFF"
power supply 0V (GND)
current output 0/4 - 20mA
sensitivity switch over time I / II
failure indication output
outer braided shield
BFI
Automation
technology for your future
colour code
BFI special cable KW6
white
brown
pink
green
yellow
grey
red
blue
green
4
4
brown
2
2
white
1
1
pink
3
3
yellow
5
5
grey
6
6
CFC
2000
red
7
7
blue
8
8
