Transport, Installation and Connection
4.10.4

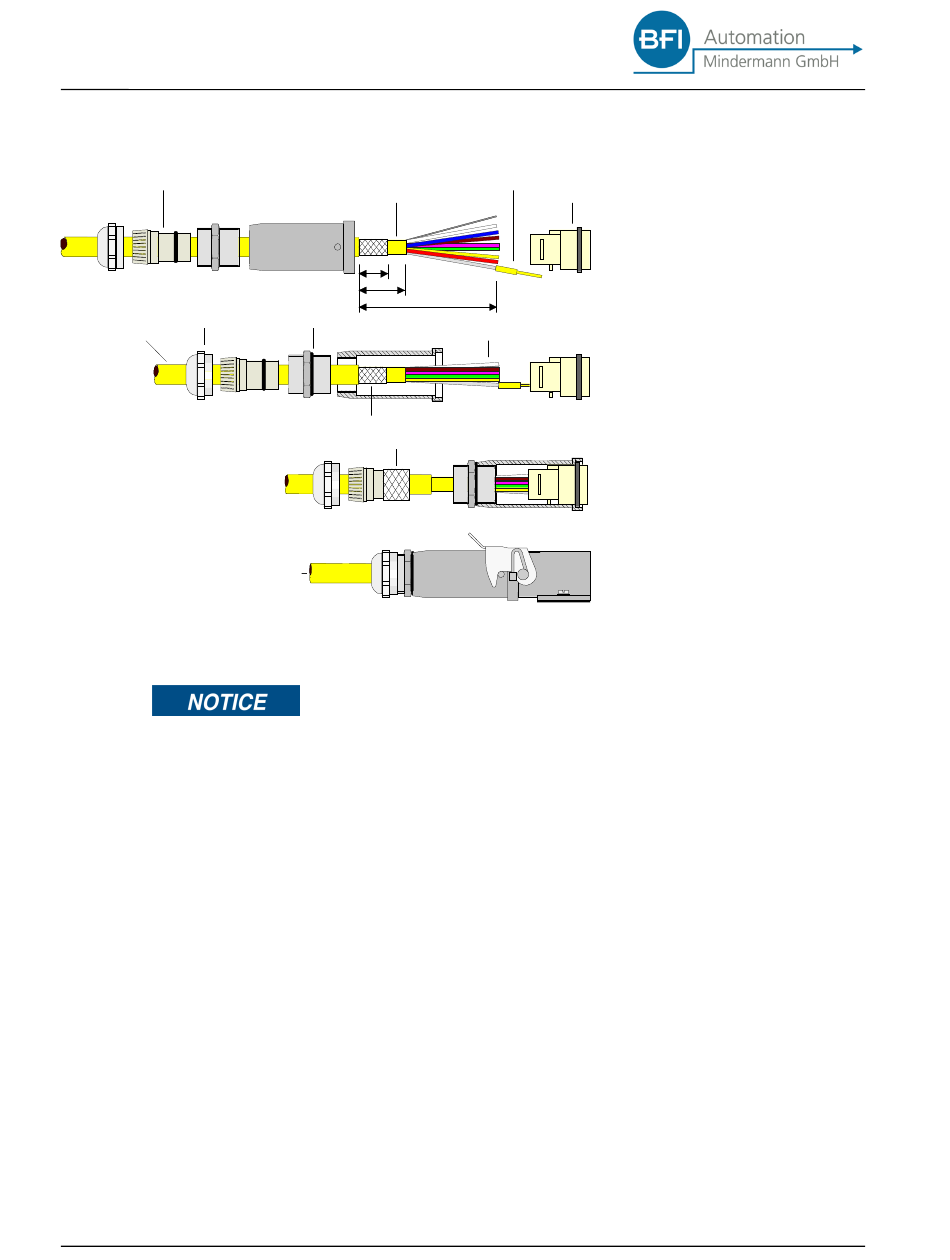

Laying the special cable KW5/KW6
Plastic insert
outer PUR
union nut
jacket
It must not remain unequipped contact chambers. All con-
tact chambers have to be equipped with crimp contacts.
The outer shield is connected to the compact flame con-
troller side in a large area by a clamping connection be-
tween the plastic liner and the threaded portion of the
gland to the housing ground.
The inner shield is cut off on both sides.
4-14
inner PUR
Crimp contact
jacket
15
20
55
thread
single core
outer shielding
Contact-
insert
