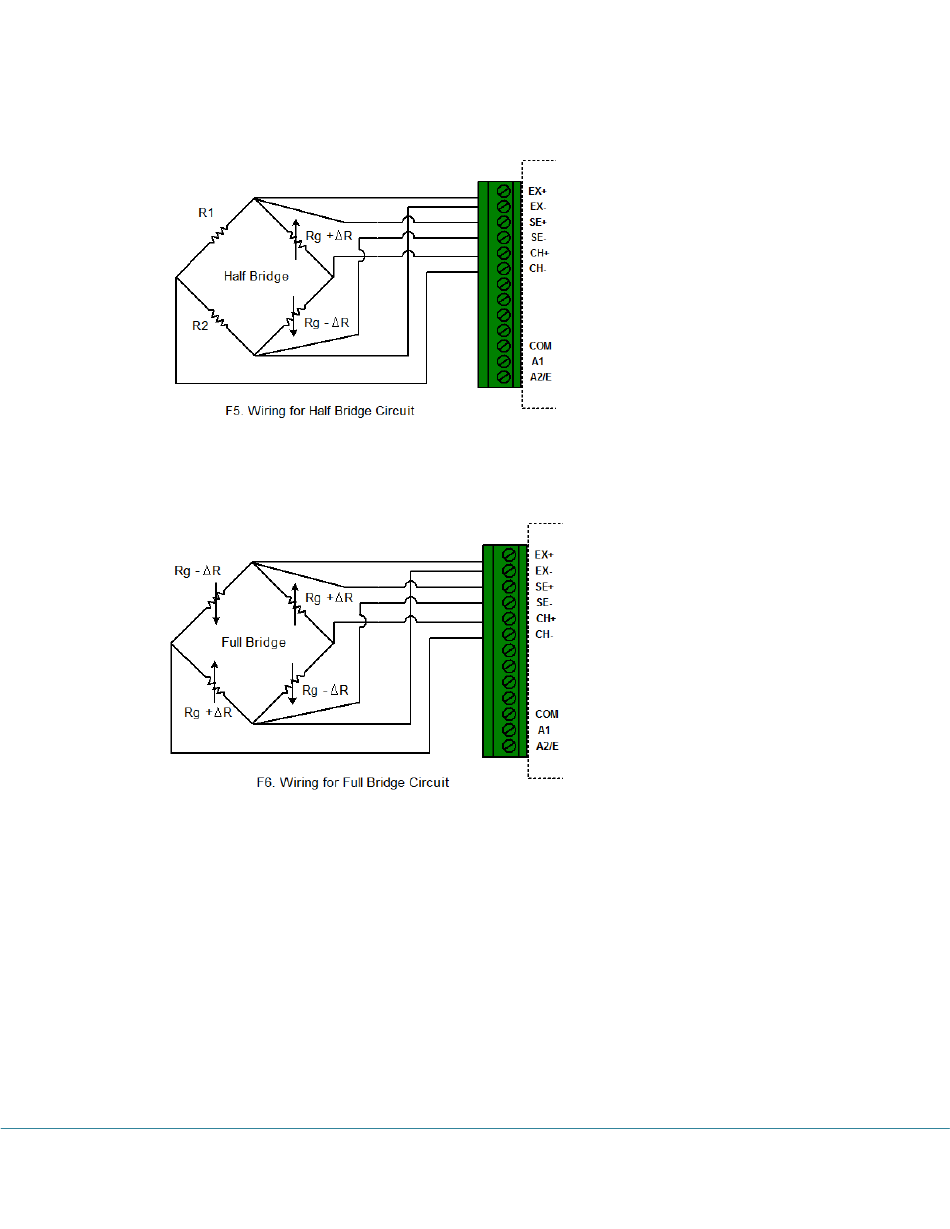

Wiring for Half Bridge Circuit:
This circuit is for equation "HalfBridge". When configure the logger, choose "HalfBridge"
equation and click "Change GF" to change the Gauge Factor.
Wiring for Full Bridge Circuit:
This circuit is for equation "FullBridge". When configure the logger, choose "FullBridge"
equation and click "Change GF" to change the Gauge Factor.
Other Bridge Circuit:
If your bridge circuit is not included in the above configurations, you may need to write
your own equation. SiteView includes a custom equation "BridgeSample" for your
reference. The source code looks like:
// Sample Equation for iLog Strain Gauge/Bridge
public double SampleBridge(double
{
//Change it according to your curcuit
double
GF =
//The voltage of the bridge output
iLog Data Loggers User's Manual
Input)
1;//Gauge Factor
Page 21/63
