Channel and Sensor Specifications:

Connections:
Channels:
Resolution:
Accuracy:
Input Impedance:
Over-voltage protection:

iLog Current Data Logger, Model: iCDC-25

Besides the on-board thermistor channel, the logger has one external current DC channel used
to measure single-ended current DC signal maximum of 25 mA. The following figure illustrates
the correct input connections:
Note: All inputs must share the same common ground.
Channel and Sensor Specifications:
Connections:
iLog Data Loggers User's Manual
Pluggable terminal block for one external channels, excitation
controls and alarm outputs
CH0: on-board thermistor (-40 ~ +70°C) (-40 to + 158°F).
CH1: external 0-10VDC.
0.0018%
Thermistor channel:± 0.2°C(0°C ~ 70°C)
Voltage channel: ± 0.05% FSR @ 25°C
> 1 Mohms
± 40 VDC

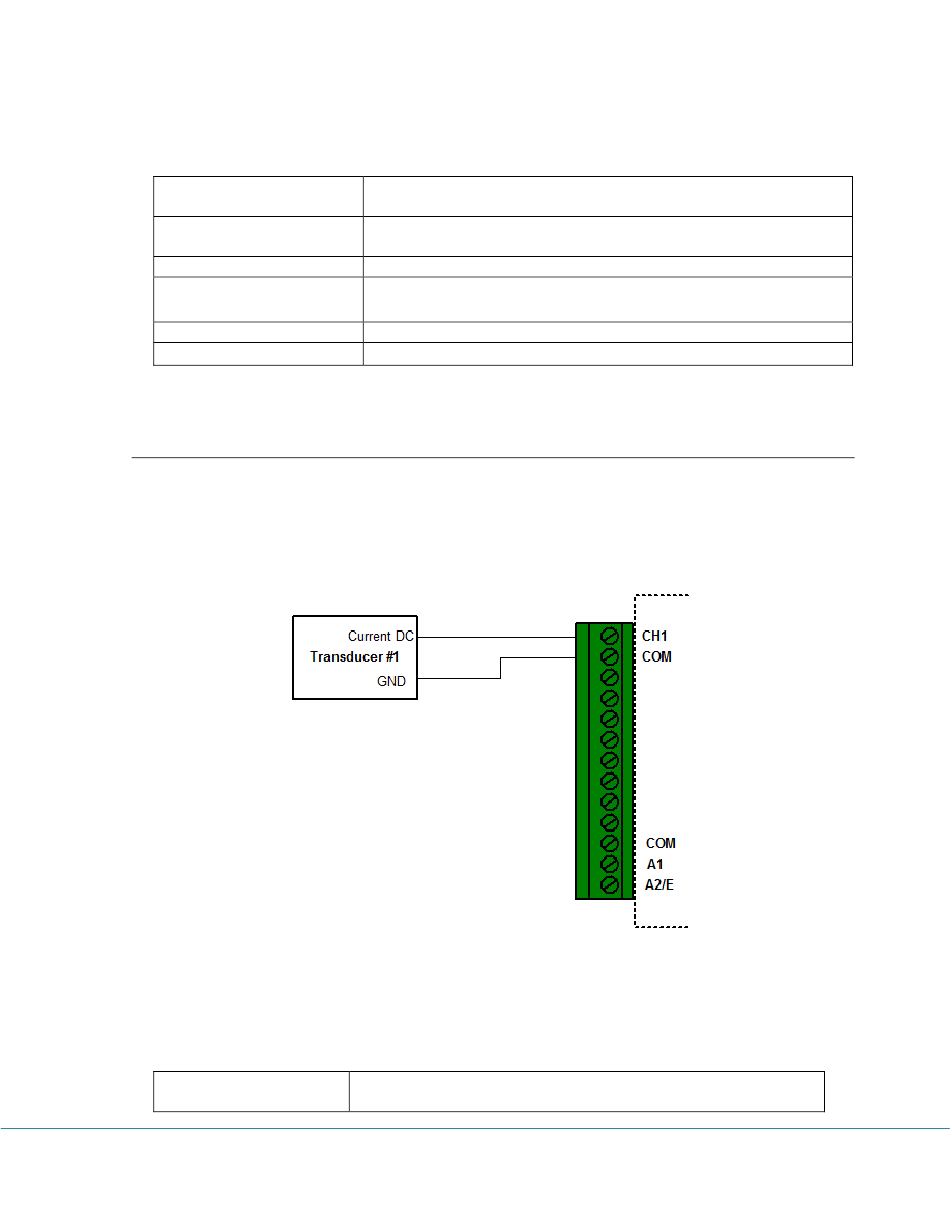

Current External Input Connections
Plugeable terminal block for one external channels, excitation
controls and alarm outputs
