Measure Temperature:

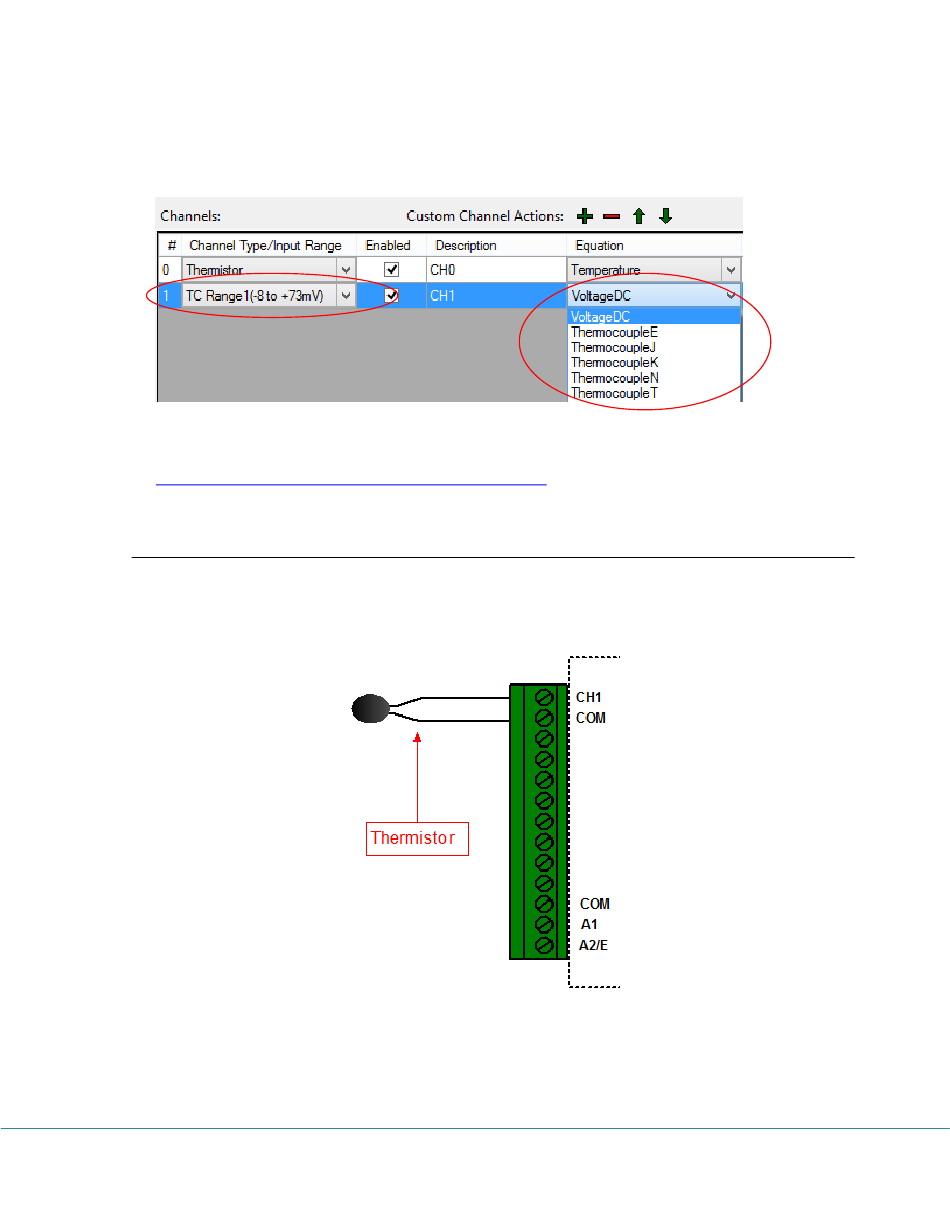

Based on the thermocouple type you want to use and the desired temperature range you want
to measure you can select the correct factory thermocouple equation:
For detailed temperature range and voltage – temperature look-up table of a specific
thermocouple type please refer to NIST's website at:
http://srdata.nist.gov/its90/download/download.html

iLog Thermistor, Model: iTH-10

Besides the on-board thermistor channel, the logger has one external channel used to measure
the external thermistor or resistor. The following figure illustrates the correct input connections:
Note: All inputs must share the same common ground.
iLog Data Loggers User's Manual
Thermistor External Input Connections
