iLog Data Logger

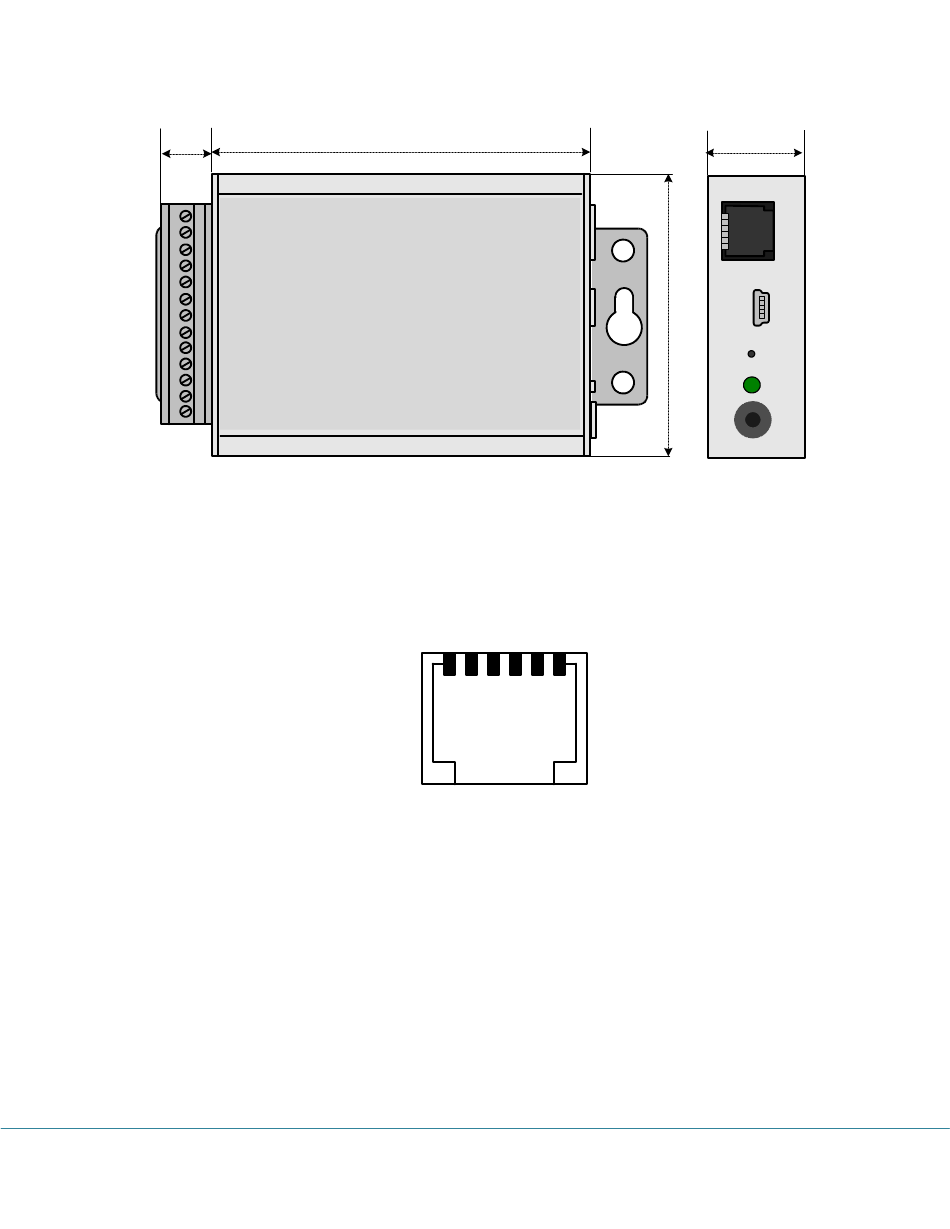

Dimension:
88 X 64.2 X 24 MM
3.46 X 2.53 X 0.95 Inches

AUX Port Pin-out (Face-In)

Pin1: Alarm1 (Same as ALARM1 on the terminal block)
Pin2: External Power Supply (+5 VDC)
Pin3: Logger Communications Receiver Line (RX)
Pin4: Logger Communications Transmitter Line (TX)
Pin5: Common Ground (COM, GND)
Pin6: Alarm2/Excitation (Same as A2/EXT on the terminal block)
iLog Data Loggers User's Manual
86 mm
Site-Log
Data Logger
1 2 3 4 5 6
24 mm
64.2 mm
Page 10/63
