Channels:
ADC Resolution:
Accuracy:
Load Resistance:
Over-current Protection ± 100 mA

iLog Thermocouple Data Logger, Model: iTC-80

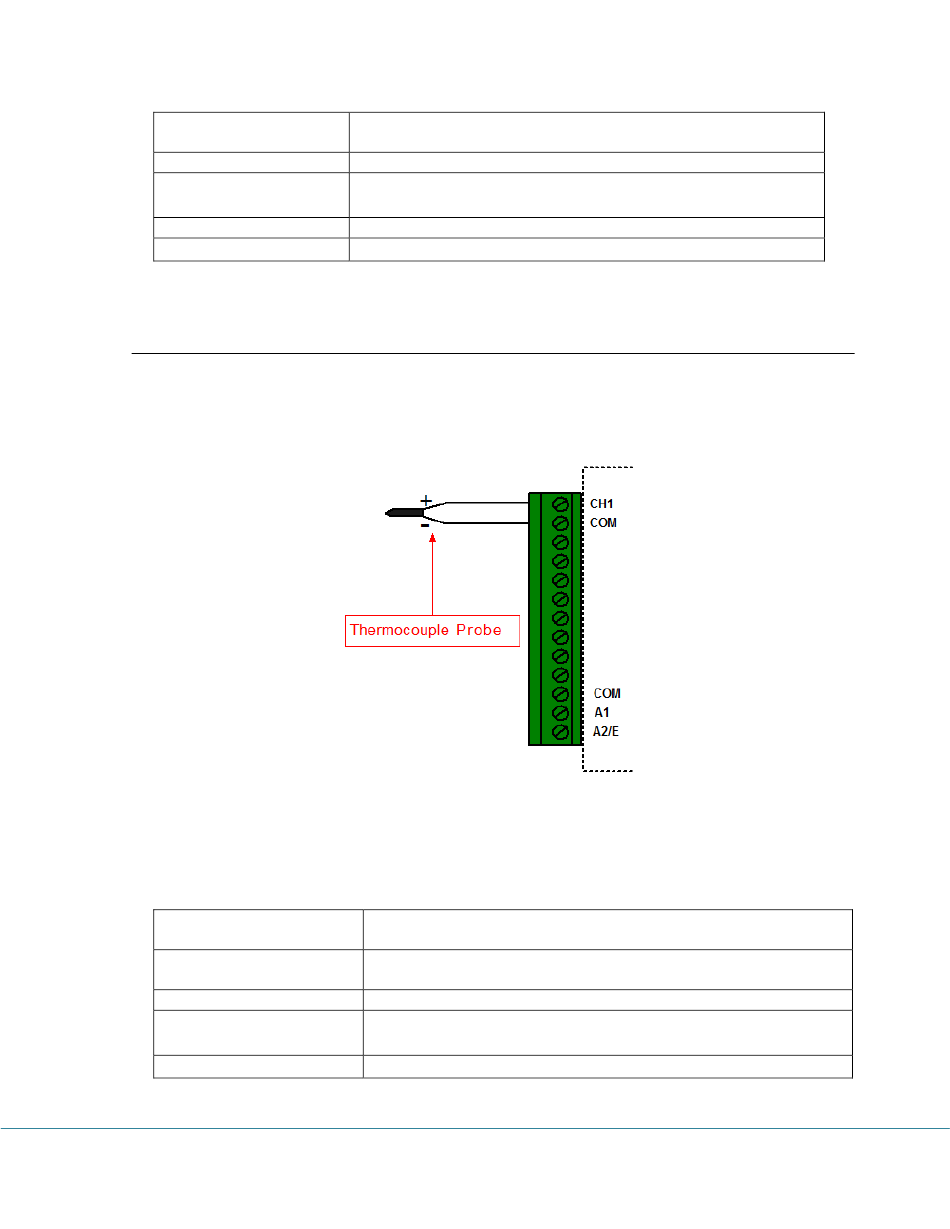

Besides the on-board thermistor channel, the logger has one external voltage DC channel used
to measure thermocouple sensor. The following figure illustrates the correct input connections:
Note: All inputs must share the same common ground.

Channel and Sensor Specifications:

Connections:
Channels:
Resolution:
Accuracy:
Over-voltage protection:
iLog Data Loggers User's Manual
CH0: on-board thermistor (-40 ~ +70°C) (-40 to + 158°F).
CH1: external 0-25mA current DC
0.0018%
Thermistor channel: ± 0.2°C(0°C ~ 70°C)
Current channel: ± 0.1% FSR @ 25°C
12 Ohm
Thermocouple Input Connections
Plugeable terminal block for one external channel, excitation
controls and alarm outputs
CH0: on-board thermistor (-40 ~ +70°C) (-40 to + 158°F).
CH1 external Voltage DC with input range: -8 to +73 mV
0.0018%
Thermistor channel: ± 0.2°C(0°C ~ 70°C)
Voltage channel: ± 0.1% (0.08 mV) @ 25°C + T/C Accuracy
± 20 VDC
Page 13/63
