Connect Strain Gauge to a Data Logger

iLog Srtrain Gauge/Bridge data logger supports six-wire configuration when connecting to a
wheatstone bridge circuit. The following wirings are for SiteView built-in Strain Gauge
equations:

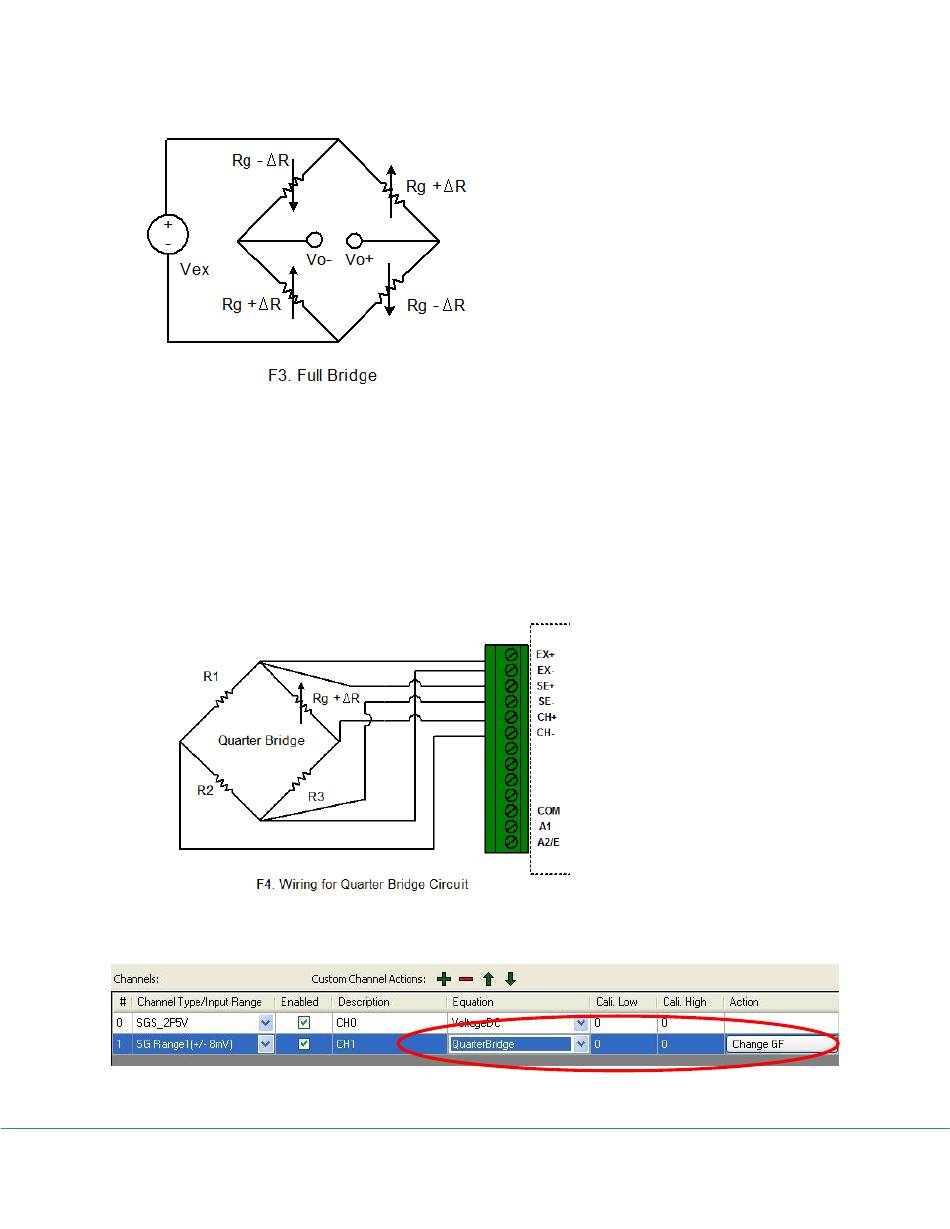

Wiring for Quarter Bridge Circuit:
This circuit is for equation "QuarterBridge". When configure the logger, choose
"QuarterBridge" equation and click "Change GF" to change the Gauge Factor.
