Configuration

Configuration

Hardware Connectors

Front Panel

In addition to the Clock and Data connectors on the front panel, several hardware connectors are provided.
At the lower far left is a Chassis Ground connector, and far right, a USB port. Generator connectors are outlined
in blue, and Detector connectors in green; these appear in this order along the bottom of the front panel:
Generator
External Clock Input
Jitter Insertion
Subrate Clock Output
Trigger Output
The power On/Off button is at the upper right and shows a green light when the unit is powered on. Below is
the adjustment knob, which can be used to scale inputs and to zoom.

Rear Panel

Hardware connectors on the rear panel:
Line Power
USB Port
COM1
Printer
IEEE-488
LAN
VGA
Keyboard/Mouse

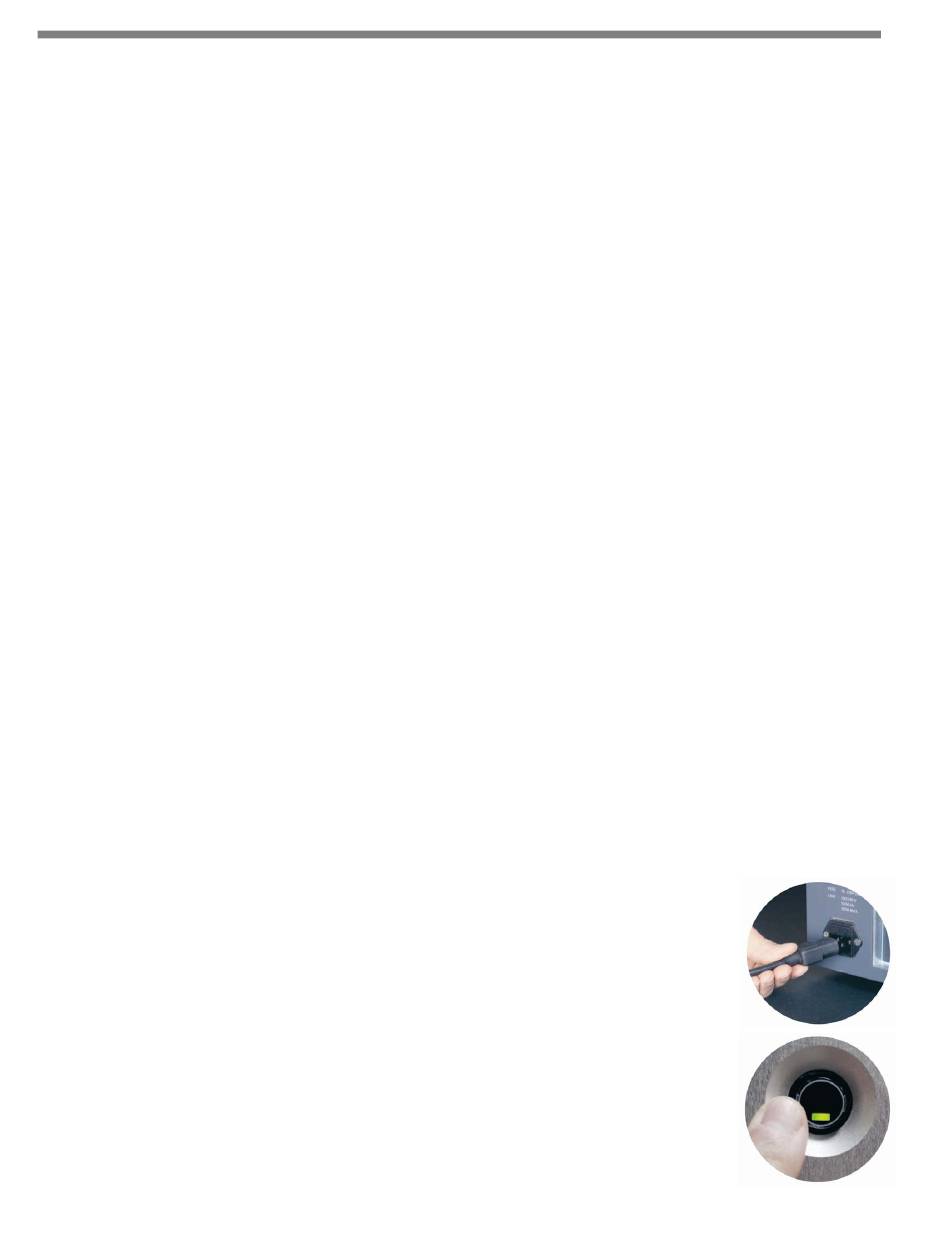

Initial Setup

Connect the power cable to a suitable AC supply

If the included keyboard and mouse are to be used, connect these before
powering on (See Optional Connections).

Press the 'On' button

Green illumination should appear on the button.
6
Detector
Marker TTL Level Input
Blank TTL Level Input
Error Output
Trigger Output
Pattern Start
Page Select
Detect Start
Low Frequency Jitter In
Low Frequency Sine Jitter Out
Sine Interference Out
10/100 MHz Reference In
10/100 MHz Reference Out
