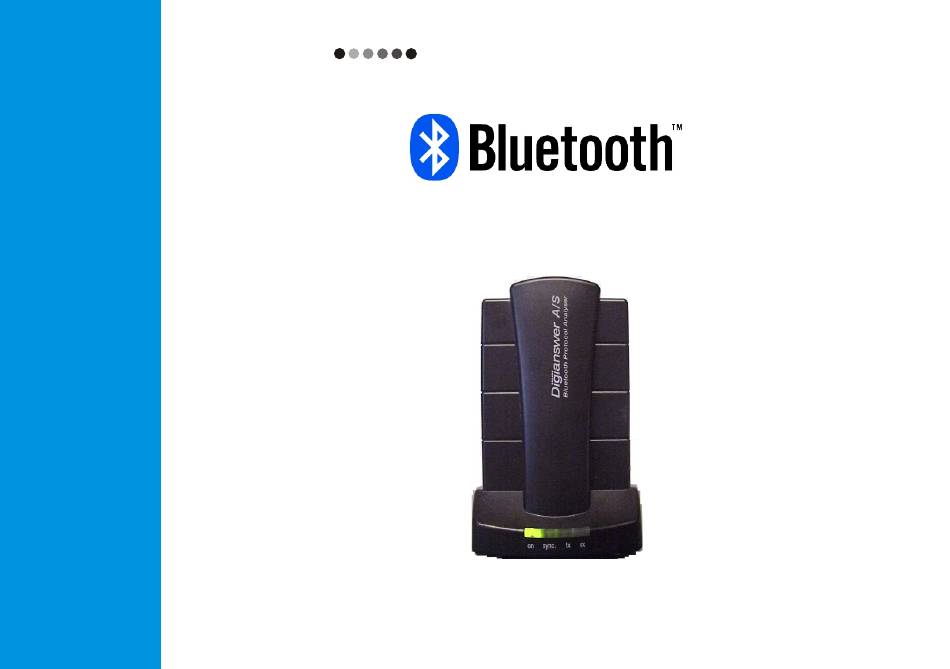

- Page 1 Digi answer Bluetooth Protocol Analyser Installation & Operation Manual...
-
Page 2: Table Of Contents
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual CAUTION, 2 Filter setup, 15 View setup, 16 About this manual, 3 Hex view, 16 Back to Baseband, 17 Unpacking, 3 One level up/down, 17 Exit, 17 Introduction, 4 Technical facts, 18 Installation, 5 System requirements, 18 Installing hardware and drivers, 5... -
Page 3: Caution
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual FCC Radio-Frequency Exposure Statement This equipment generates and radiates radio-frequency energy. In order to comply with FCC radio-frequency radiation exposure guidelines for an uncontrolled environment, this equipment has to be installed and operated while maintaining a minimum body-to-antenna distance of 20 cm. Users are not permitted to make changes or modify the system in any way. -
Page 4: About This Manual
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual This installation and operation manual provides you with the Note: This product has been designed for development information you need to make maximum use of Digianswer’s purposes and is not to be sold to or used by end users. Bluetooth™... -
Page 5: Introduction
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual • • Digianswer’s Bluetooth Protocol Analyser is a development kit As an independent unit: In this configuration, the that allows you to view Bluetooth protocol data and carry out Bluetooth Protocol Analyser does not participate in the fast and effective analysis during the process of developing piconet;... -
Page 6: Installation
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual The installation procedure includes installing hardware, Note: When you have installed the drivers, Windows will drivers, and software applications for the Bluetooth Protocol ask if you want to restart your computer. However, it is not Analyser. -
Page 7: Installing Application Software
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual Installing application software Uninstalling old programs If the Digianswer Bluetooth Demo Card or a previous version Having connected the Bluetooth USB Protocol Analyser and of the Bluetooth Software Suite is installed on your computer, installed the drivers, your are now ready to install the you must uninstall this before you can install the Bluetooth application software for the Bluetooth Protocol Analyser: the... - Page 8 Digianswer Bluetooth Protocol Analyser Installation & Operation Manual To uninstall the drivers: 5. Enter the \windows\inf directory and delete the following files: 1. Enter System Properties / Device Manager. Dgahub.inf Dgahub.inf 2. Locate and remove the Digianswer Bluetooth Dganet.inf Dgausb.inf Demo Card Controller and the Digianswer Bluetooth Dgapcc.inf Drvdata.bin and Drvidx.bin...
-
Page 9: Data Collector Operation
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual Features The purpose of the Data Collector is, basically, to listen in on the Bluetooth piconet to which it is connected, and create a log containing all the baseband packets transmitted between the Bluetooth devices participating in the piconet. -
Page 10: Main Window
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual File, Modules, and Help menus. The File menu contains Main window an item for each of the functions that you can use the Data Collector for: Opening logged files, saving files, starting log In this section, we will take a look at the Data Collector main sessions, stopping log session, and quitting the Data window. -
Page 11: Starting Log Session
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual We will now take a look at the three main items of this dialog Starting log session box: Logging Mode, Hopping Mode, and Data Whitening. Logging Mode: Click this icon to open the Start new log session dialog box: Piconet Member Mode is to be used in connection with the Bluetooth Software Suite. - Page 12 Digianswer Bluetooth Protocol Analyser Installation & Operation Manual • To select master or slave, click Select. The following dialog Sync to piconet using fake connection response: box opens: This mode can only be used during the connect phase, i.e. when the piconet master connects to a new slave.
-
Page 13: Stopping Log Session
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual Selecting Independent Mode also involves setting the number Stopping log session of seconds allowed to pass when there is no activity in the piconet. On timeout, the Bluetooth Protocol Analyser will inform you of the lack of activity. Click this icon to stop the current log session. -
Page 14: Exit
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual Exit Click this icon to quit the Data Collector. Features The purpose of the Bluetooth Packet Analyser is, basically, to analyse and display the contents of log files created by means of the Data Collector. The Bluetooth Packet Analyser can: •... -
Page 15: Main Window
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual File, View, and Help menus. From the File menu you can Main window open files, view the properties of the current log file, and quit the program. From the View menu, you can view the In this section we will take a look at the main window of the filter and view setups;... -
Page 16: Opening A File
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual which list of packets is selected. The following example shows Opening a file the dialog box as it appears when selected from Baseband: This function – Load Log session from file – will open a dialog box that allows you to browse and open a log file. -
Page 17: View Setup
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual View setup Hex view The main window only shows part of what a packet contains For each of the tabs representing a list of packets – (except at the RFCOMM and SDP level). However, you can Baseband, LMP, L2CAP, RFCOMM, or SDP –... -
Page 18: Back To Baseband
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual Back to Baseband Exit Click this icon to return to the list of baseband packets from Click this icon to quit the Bluetooth Packet Analyser. any of the other lists of packets. One level up/down When a packet is highlighted in the list view, you can navigate from one level of information to another by means of Enter... -
Page 19: Technical Facts
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual System requirements Hardware specifications • • Computer with a 266 MHz or higher processor; Pentium II Compliant with the USB specification version 1.1 • recommended Powered by the computer • Standby power consumption: <20mA •... -
Page 20: A: Changes Implemented Since V1.0
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual The following is a list of the new features implemented in the Bluetooth Protocol Analyser version 1.1 (i.e. features not implemented in version 1.0, known as the ”Bluetooth Sniffer”): Data Collector • Three sync modes. -
Page 21: B: Packet Format
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual The following table shows the packet format of the Bluetooth Protocol Analyser. Each [xx] represents one byte. Byte Name Description position [01] Sync word The Digianswer specified sync word for the Protocol Analyser packet is 0xFF. [02] Protocol Analyser packet Currently there is only one Protocol Analyser packet type: 0 (the one shown in this table). - Page 22 Digianswer Bluetooth Protocol Analyser Installation & Operation Manual [08] Estimated clock (27-24) Piconet master clock [09] Estimated clock (23-16) [10] Estimated clock (15-8) [11] Estimated clock (7-0) [12] Hop frequency The frequency offset “k” used for this packet F = (2402 + k) MHz [13] Header info: If packet type is ID or IQ, this parameter is not valid...
-
Page 23: C: Regulatory Statements
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual General Japan This product complies with any mandatory product specification in any country where the product is sold. In addition, the product complies with the following. United States of America and Canada Tested To Comply With FCC Standards FOR HOME OR OFFICE USE. -
Page 24: D: Digianswer Contact Information
Digianswer Bluetooth Protocol Analyser Installation & Operation Manual Skalhuse 5 DK-9240 Nibe Denmark Phone: +45 9671 0000 Fax: +45 9835 0052 E-mail: BluetoothPA@Digianswer.com Web site: www.digianswer.com... - Page 25 Digi answer Bluetooth Protocol Analyser...
