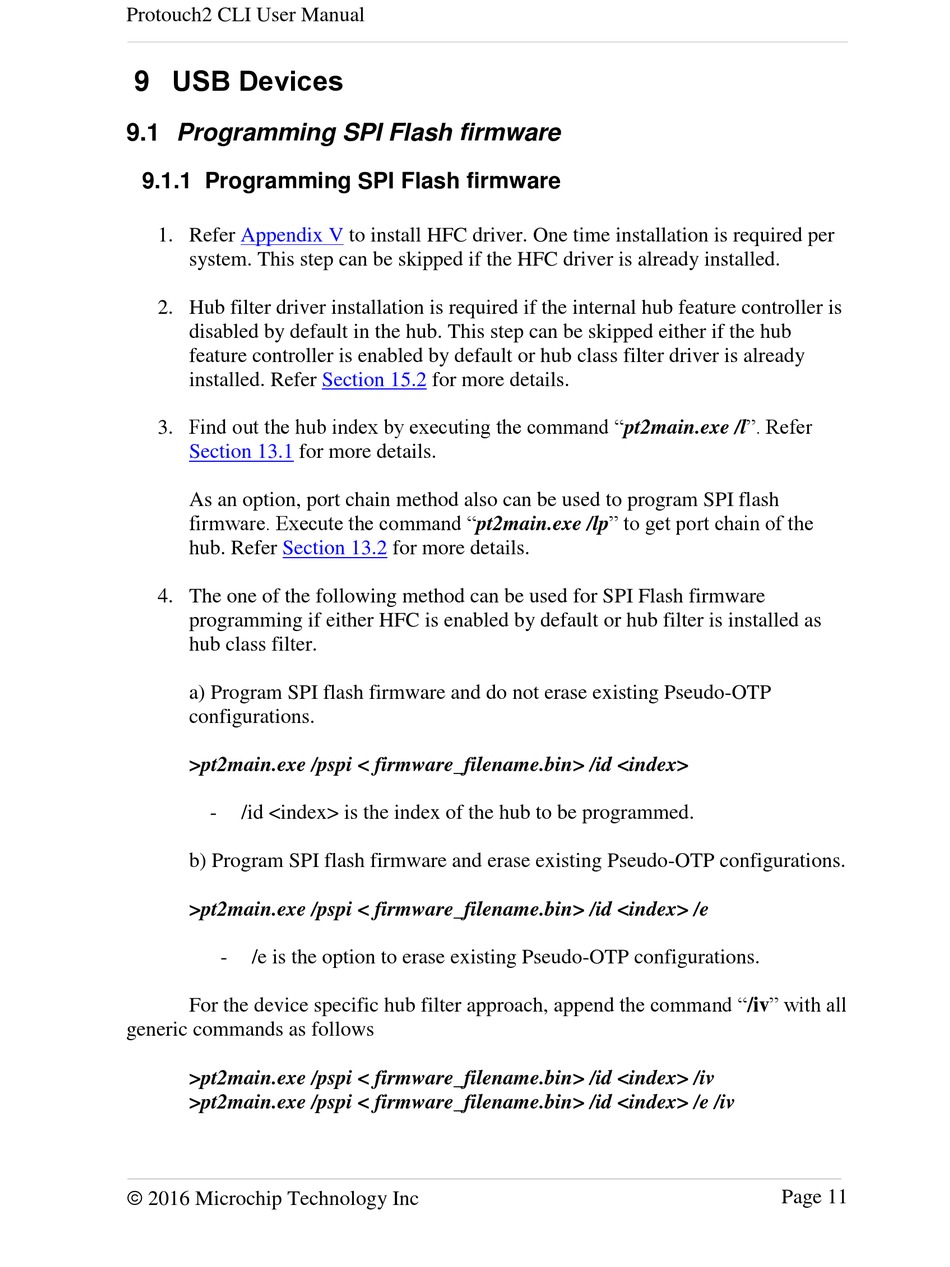

Protouch2 CLI User Manual
9 USB Devices
9.1 Programming SPI Flash firmware
9.1.1 Programming SPI Flash firmware
1. Refer
Appendix V
system. This step can be skipped if the HFC driver is already installed.
2. Hub filter driver installation is required if the internal hub feature controller is
disabled by default in the hub. This step can be skipped either if the hub
feature controller is enabled by default or hub class filter driver is already
installed. Refer
3. Find out the hub index by executing the command "pt2main.exe /l". Refer
Section 13.1
for more details.
As an option, port chain method also can be used to program SPI flash
firmware. Execute the command "pt2main.exe /lp" to get port chain of the
hub. Refer
Section 13.2
4. The one of the following method can be used for SPI Flash firmware
programming if either HFC is enabled by default or hub filter is installed as
hub class filter.
a) Program SPI flash firmware and do not erase existing Pseudo-OTP
configurations.
>pt2main.exe /pspi < firmware_filename.bin> /id <index>
-
/id <index> is the index of the hub to be programmed.
b) Program SPI flash firmware and erase existing Pseudo-OTP configurations.
>pt2main.exe /pspi < firmware_filename.bin> /id <index> /e
-
/e is the option to erase existing Pseudo-OTP configurations.
For the device specific hub filter approach, append the command "/iv" with all
generic commands as follows
>pt2main.exe /pspi < firmware_filename.bin> /id <index> /iv
>pt2main.exe /pspi < firmware_filename.bin> /id <index> /e /iv
2016 Microchip Technology Inc
to install HFC driver. One time installation is required per
Section 15.2
for more details.
for more details.
Page 11
