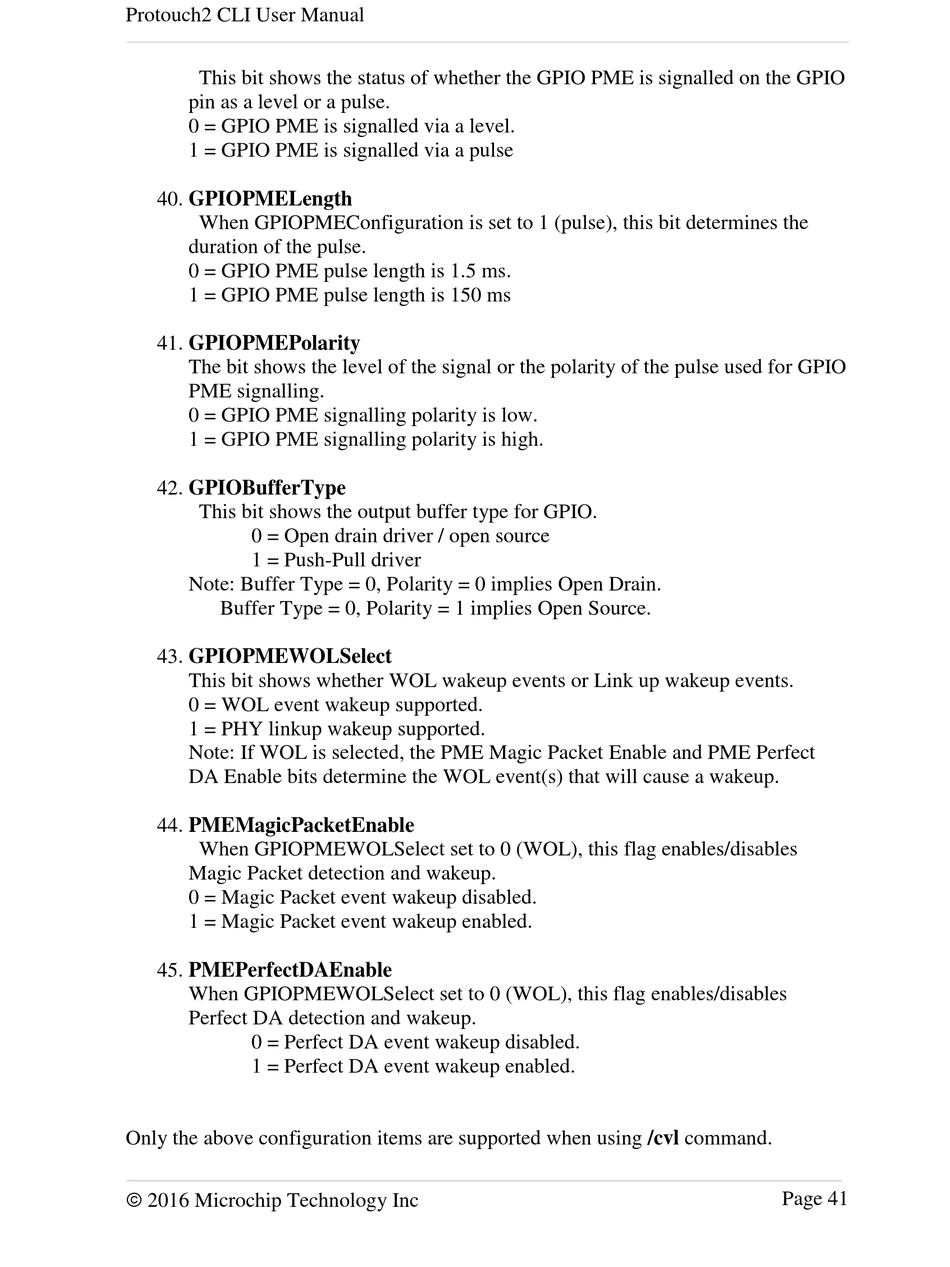

Protouch2 CLI User Manual
This bit shows the status of whether the GPIO PME is signalled on the GPIO
pin as a level or a pulse.
0 = GPIO PME is signalled via a level.
1 = GPIO PME is signalled via a pulse
40. GPIOPMELength
When GPIOPMEConfiguration is set to 1 (pulse), this bit determines the
duration of the pulse.
0 = GPIO PME pulse length is 1.5 ms.
1 = GPIO PME pulse length is 150 ms
41. GPIOPMEPolarity
The bit shows the level of the signal or the polarity of the pulse used for GPIO
PME signalling.
0 = GPIO PME signalling polarity is low.
1 = GPIO PME signalling polarity is high.
42. GPIOBufferType
This bit shows the output buffer type for GPIO.
0 = Open drain driver / open source
1 = Push-Pull driver
Note: Buffer Type = 0, Polarity = 0 implies Open Drain.
Buffer Type = 0, Polarity = 1 implies Open Source.
43. GPIOPMEWOLSelect
This bit shows whether WOL wakeup events or Link up wakeup events.
0 = WOL event wakeup supported.
1 = PHY linkup wakeup supported.
Note: If WOL is selected, the PME Magic Packet Enable and PME Perfect
DA Enable bits determine the WOL event(s) that will cause a wakeup.
44. PMEMagicPacketEnable
When GPIOPMEWOLSelect set to 0 (WOL), this flag enables/disables
Magic Packet detection and wakeup.
0 = Magic Packet event wakeup disabled.
1 = Magic Packet event wakeup enabled.
45. PMEPerfectDAEnable
When GPIOPMEWOLSelect set to 0 (WOL), this flag enables/disables
Perfect DA detection and wakeup.
0 = Perfect DA event wakeup disabled.
1 = Perfect DA event wakeup enabled.
Only the above configuration items are supported when using /cvl command.
