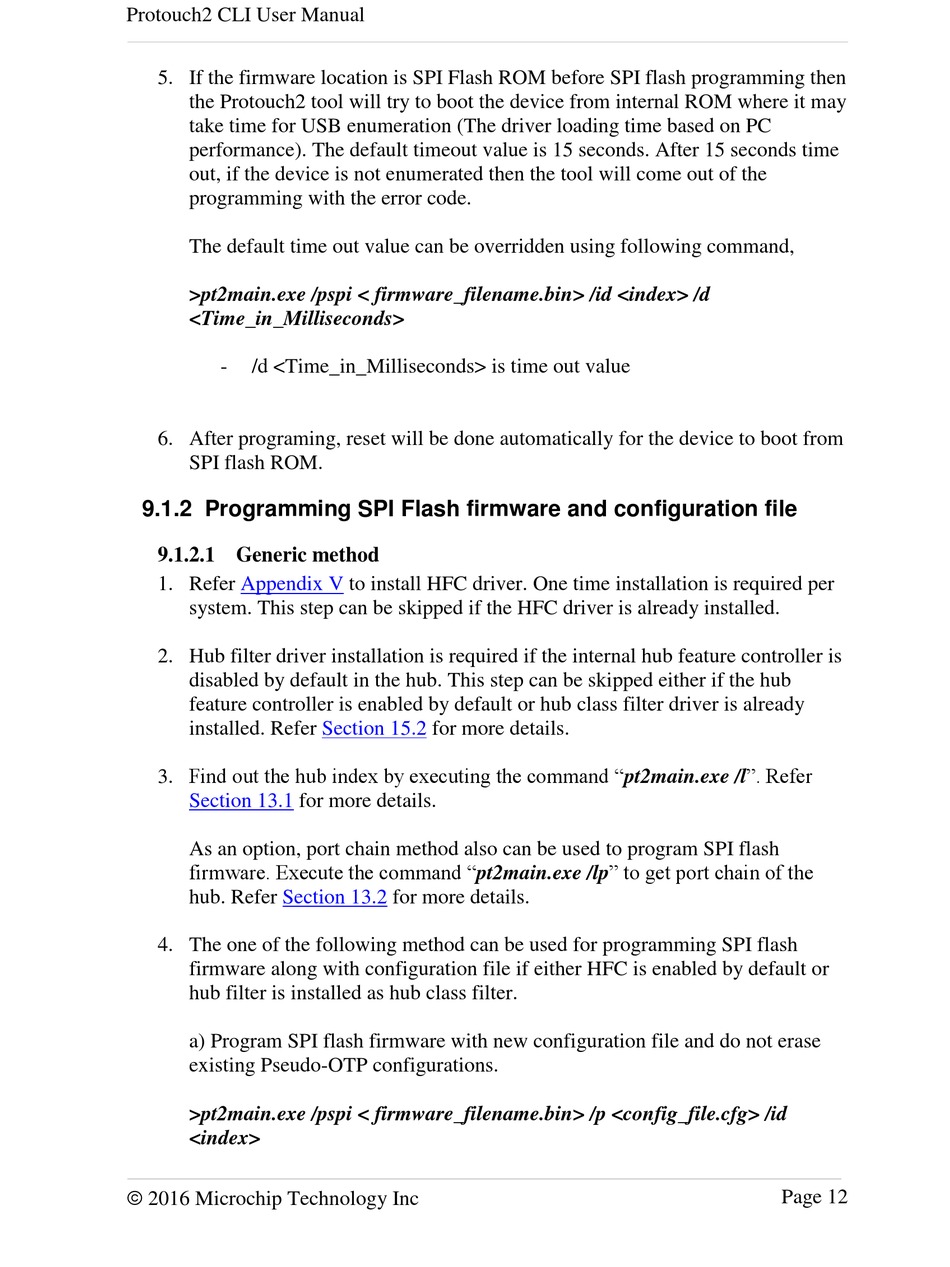

5. If the firmware location is SPI Flash ROM before SPI flash programming then
the Protouch2 tool will try to boot the device from internal ROM where it may
take time for USB enumeration (The driver loading time based on PC
performance). The default timeout value is 15 seconds. After 15 seconds time
out, if the device is not enumerated then the tool will come out of the
programming with the error code.
The default time out value can be overridden using following command,
>pt2main.exe /pspi < firmware_filename.bin> /id <index> /d
<Time_in_Milliseconds>
-
/d <Time_in_Milliseconds> is time out value
6. After programing, reset will be done automatically for the device to boot from
SPI flash ROM.
9.1.2 Programming SPI Flash firmware and configuration file
9.1.2.1 Generic method
1. Refer
Appendix V
system. This step can be skipped if the HFC driver is already installed.
2. Hub filter driver installation is required if the internal hub feature controller is
disabled by default in the hub. This step can be skipped either if the hub
feature controller is enabled by default or hub class filter driver is already
installed. Refer
3. Find out the hub index by executing the command "pt2main.exe /l". Refer
Section 13.1
for more details.
As an option, port chain method also can be used to program SPI flash
firmware. Execute the command "pt2main.exe /lp" to get port chain of the
hub. Refer
Section 13.2
4. The one of the following method can be used for programming SPI flash
firmware along with configuration file if either HFC is enabled by default or
hub filter is installed as hub class filter.
a) Program SPI flash firmware with new configuration file and do not erase
existing Pseudo-OTP configurations.
>pt2main.exe /pspi < firmware_filename.bin> /p <config_file.cfg> /id
<index>
