Protouch2 CLI User Manual

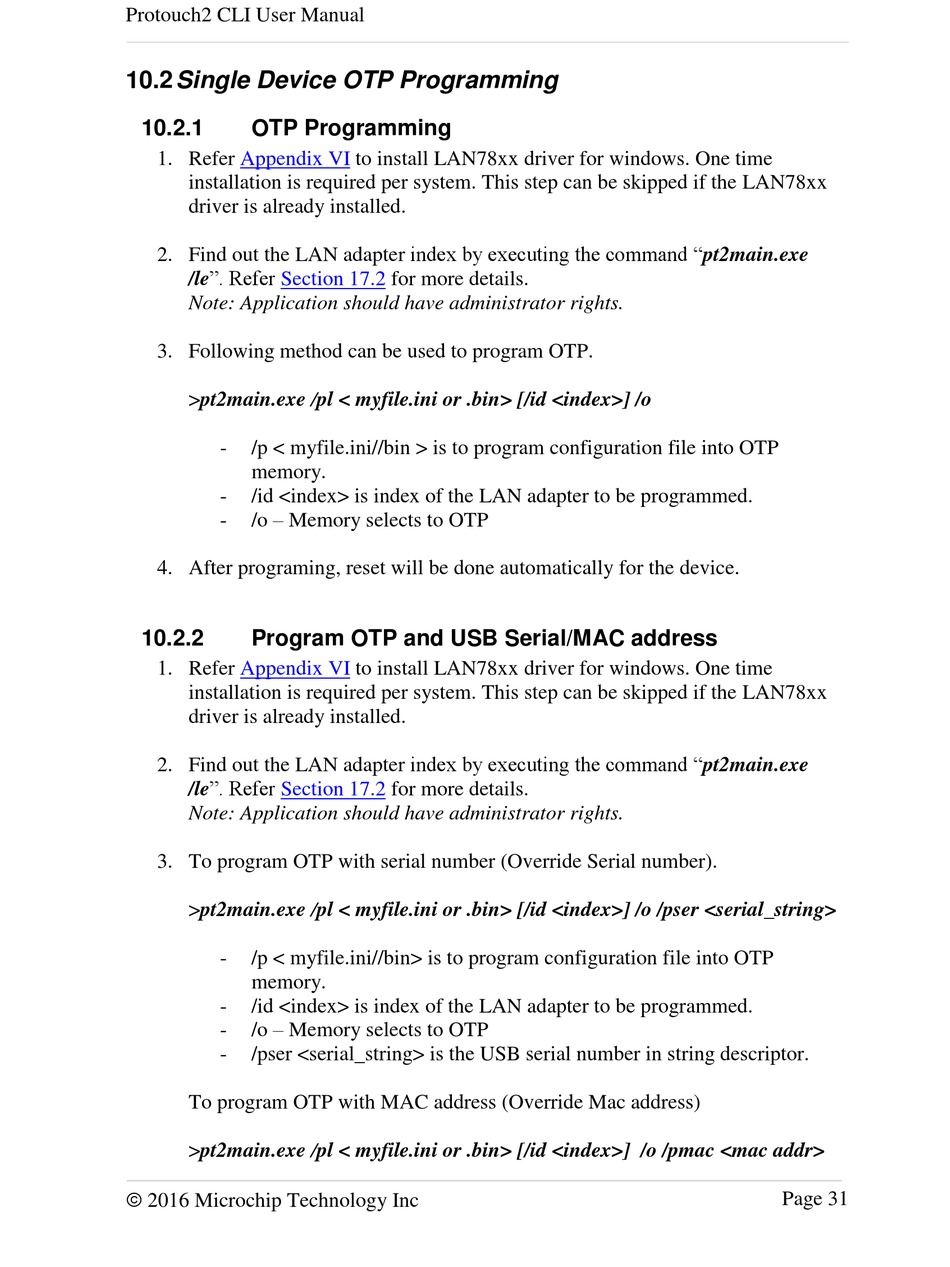

10.2 Single Device OTP Programming

10.2.1

OTP Programming

1. Refer Appendix VI
installation is required per system. This step can be skipped if the LAN78xx
driver is already installed.
2. Find out the LAN adapter index by executing the command "pt2main.exe
/le". Refer
Section 17.2
Note: Application should have administrator rights.
3. Following method can be used to program OTP.
>pt2main.exe /pl < myfile.ini or .bin> [/id <index>] /o
- /p < myfile.ini//bin > is to program configuration file into OTP
memory.
- /id <index> is index of the LAN adapter to be programmed.
/o – Memory selects to OTP
-
4. After programing, reset will be done automatically for the device.
10.2.2

Program OTP and USB Serial/MAC address

1. Refer Appendix VI
installation is required per system. This step can be skipped if the LAN78xx
driver is already installed.
2. Find out the LAN adapter index by executing the command "pt2main.exe
/le". Refer
Section 17.2
Note: Application should have administrator rights.
3. To program OTP with serial number (Override Serial number).
>pt2main.exe /pl < myfile.ini or .bin> [/id <index>] /o /pser <serial_string>
- /p < myfile.ini//bin> is to program configuration file into OTP
memory.
- /id <index> is index of the LAN adapter to be programmed.
/o – Memory selects to OTP
-
- /pser <serial_string> is the USB serial number in string descriptor.
To program OTP with MAC address (Override Mac address)
>pt2main.exe /pl < myfile.ini or .bin> [/id <index>] /o /pmac <mac addr>
 2016 Microchip Technology Inc
to install LAN78xx driver for windows. One time
for more details.
to install LAN78xx driver for windows. One time
for more details.
Page 31
