Protouch2 CLI User Manual
To program EEPROM with MAC address (Override Mac address) and serial
number (Override serial number)
>pt2main.exe /pl < myfile.ini or .bin> [/id <index>] /pmac <mac addr>
/pser <serial_num>
4. After programing, reset will be done automatically for the device.

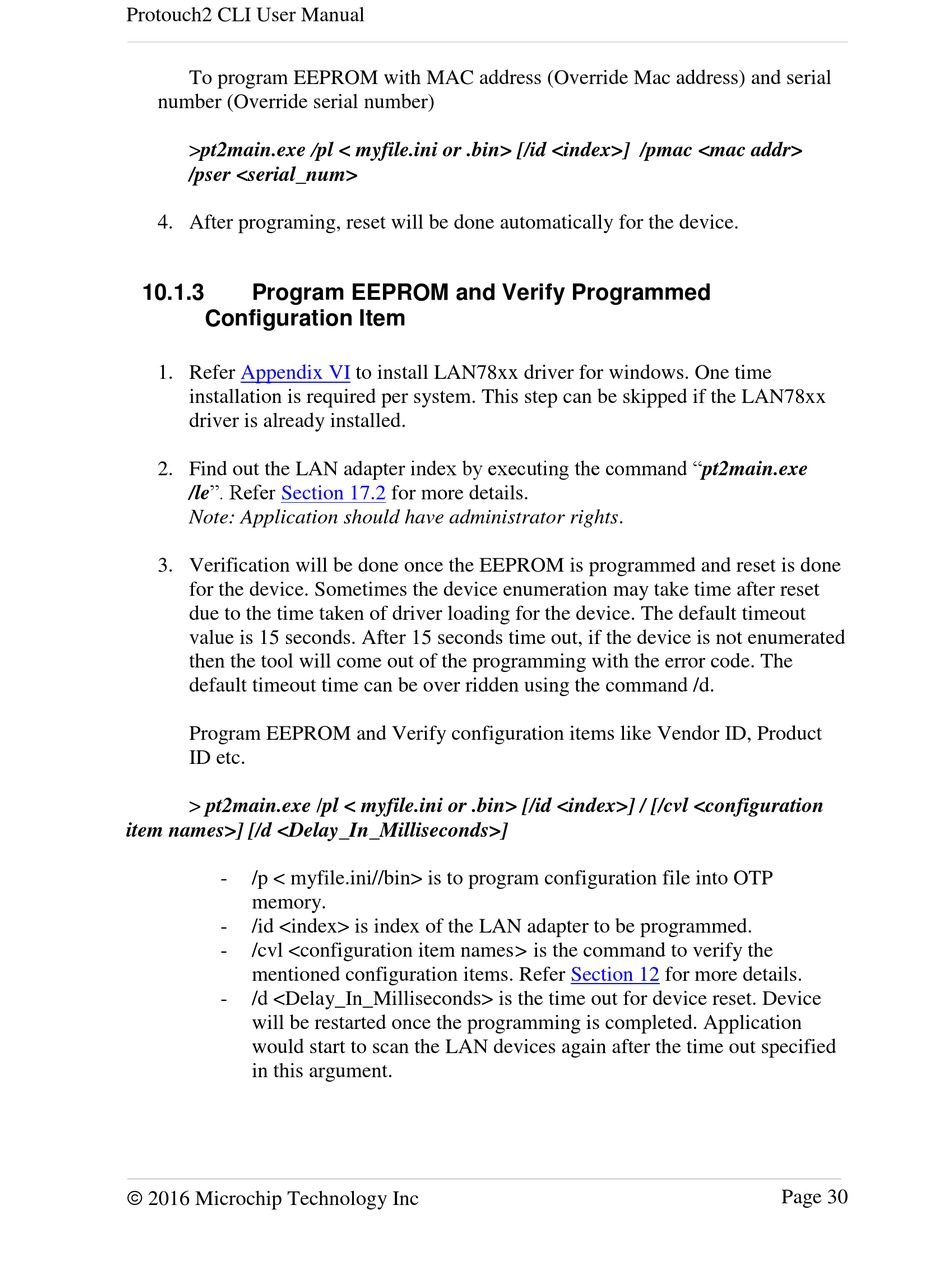

10.1.3 Program EEPROM and Verify Programmed
Configuration Item
1. Refer Appendix VI
installation is required per system. This step can be skipped if the LAN78xx
driver is already installed.
2. Find out the LAN adapter index by executing the command "pt2main.exe
/le". Refer
Section 17.2
Note: Application should have administrator rights.
3. Verification will be done once the EEPROM is programmed and reset is done
for the device. Sometimes the device enumeration may take time after reset
due to the time taken of driver loading for the device. The default timeout
value is 15 seconds. After 15 seconds time out, if the device is not enumerated
then the tool will come out of the programming with the error code. The
default timeout time can be over ridden using the command /d.
Program EEPROM and Verify configuration items like Vendor ID, Product
ID etc.
> pt2main.exe /pl < myfile.ini or .bin> [/id <index>] / [/cvl <configuration
item names>] [/d <Delay_In_Milliseconds>]
- /p < myfile.ini//bin> is to program configuration file into OTP
memory.
- /id <index> is index of the LAN adapter to be programmed.
- /cvl <configuration item names> is the command to verify the
mentioned configuration items. Refer
- /d <Delay_In_Milliseconds> is the time out for device reset. Device
will be restarted once the programming is completed. Application
would start to scan the LAN devices again after the time out specified
in this argument.
 2016 Microchip Technology Inc
to install LAN78xx driver for windows. One time
for more details.
Section 12 for more details.
Page 30
