Protouch2 CLI User Manual
- /bp <config_filename.cfg> is to program configuration file into OTP
memory in continuous mode.
/devpath "VVVV/PPPP/portchain" is the port chain of the hub to be
-
programmed.
For device specific filter approach
>pt2main.exe /bp < config_filename.cfg> [/id <index>] /iv
5. Press "CTRL+C" keys to abort the programming.
6. After each OTP programing, coloured status will be displayed in command
line.
GREEN – OTP Program success
RED - OTP program failed
7. After each OTP programming, device reset will be done automatically.

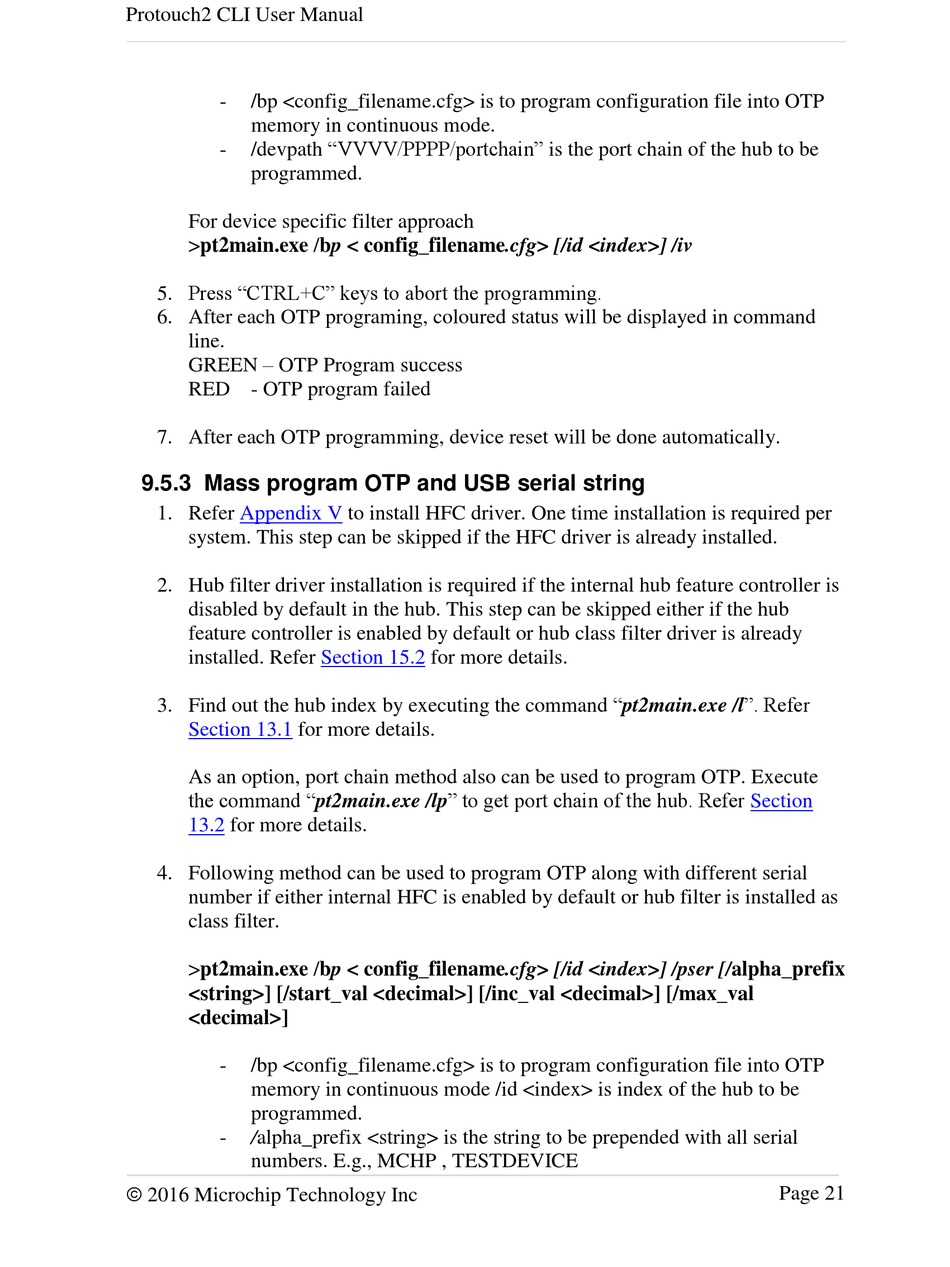

9.5.3 Mass program OTP and USB serial string

1. Refer Appendix V
system. This step can be skipped if the HFC driver is already installed.
2. Hub filter driver installation is required if the internal hub feature controller is
disabled by default in the hub. This step can be skipped either if the hub
feature controller is enabled by default or hub class filter driver is already
installed. Refer
3. Find out the hub index by executing the command "pt2main.exe /l". Refer
Section 13.1 for more details.
As an option, port chain method also can be used to program OTP. Execute
the command "pt2main.exe /lp" to get port chain of the hub. Refer
13.2 for more details.
4. Following method can be used to program OTP along with different serial
number if either internal HFC is enabled by default or hub filter is installed as
class filter.
>pt2main.exe /bp < config_filename.cfg> [/id <index>] /pser [/alpha_prefix
<string>] [/start_val <decimal>] [/inc_val <decimal>] [/max_val
<decimal>]
- /bp <config_filename.cfg> is to program configuration file into OTP
memory in continuous mode /id <index> is index of the hub to be
programmed.
- /alpha_prefix <string> is the string to be prepended with all serial
numbers. E.g., MCHP , TESTDEVICE
 2016 Microchip Technology Inc
to install HFC driver. One time installation is required per
Section 15.2 for more details.
Section
Page 21
