Lathe Arm Installation
Product Identification: 15L Slant-PRO Lathe Arm Installation Kit (PN 33318)
Purpose: This document details installation of the lathe arm assembly on the 15L Slant-PRO Lathe (with or
without the full enclosure installed).
.

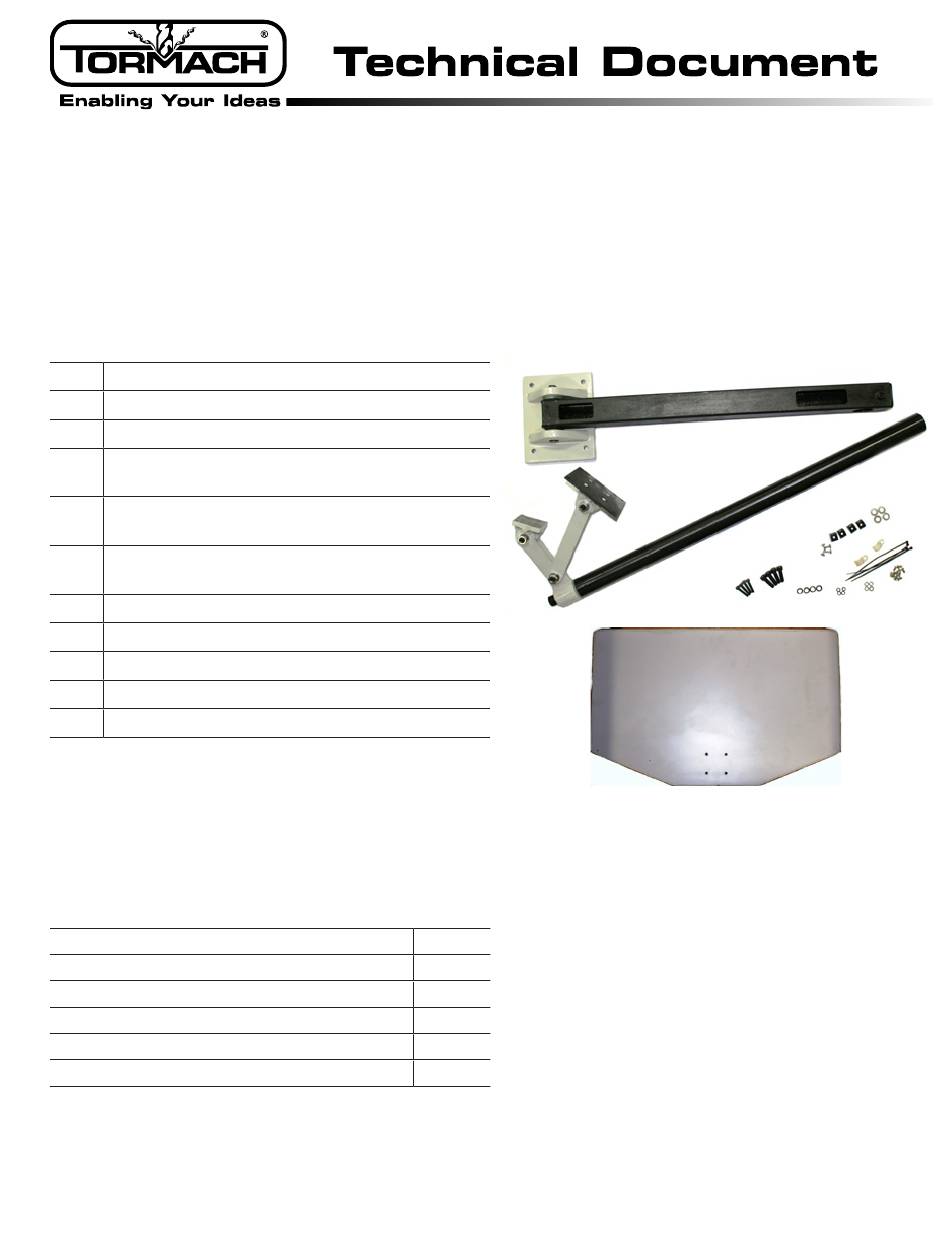

Lathe Arm Installation Kit
Qty
1
Square Tube Arm w/ 4-hole Mounting Clevis
1
Round Monitor Post
1
Monitor Mounting Plate
4
8 mm Socket Head Cap Screws w/ Lock and Flat
Washers
4
5 mm Socket Head Cap Screws w/ Lock and Flat
Washers
4
Wood Screws (for optional mounting of E-stop to
table)
10
4 mm Flat Head Screws
4
Wire Tie Mounts
4
Wire Ties
2
E-stop Cable Clips
1
Keyboard Table
NOTE: If any of these items are missing, contact Tormach
Customer Service at (608) 849-8381 for a replacement.
NOTE: Some kits contain both a short and a long Square Tube Arm. The operator may use either, but the
longer tube is recommended when the full enclosure is installed. Some parts in this kit may not be used.
Optional Prodcts
USB Bulkhead Port Assembly
17" LCD Monitor
17" Touch Screen Kit
Mini Keyboard
Keyboard Cover
Jog Shuttle
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534
PN
31289
30615
35575
31371
31384
30616
Page 1
©Tormach® 2014. All rights reserved.
Specifications subject to change without notice.
TD10244_Lathe_Arm_Install_0216A
Advertisement
Table of Contents
Related Manuals for Tormach 33318
Summary of Contents for Tormach 33318
- Page 1 Lathe Arm Installation Product Identification: 15L Slant-PRO Lathe Arm Installation Kit (PN 33318) Purpose: This document details installation of the lathe arm assembly on the 15L Slant-PRO Lathe (with or without the full enclosure installed). Lathe Arm Installation Kit Square Tube Arm w/ 4-hole Mounting Clevis...
- Page 2 Figure 1. Figure 1 Tormach Inc. ©Tormach® 2014. All rights reserved. 1071 Uniek Drive, Waunakee, WI 53597 Specifications subject to change without notice. Phone: 608.849.8381 / Fax: 209.885.4534...
- Page 3 4. If not already installed, use a mallet to tap the End Plug into the Square Tube Arm (see Figure 3). End Plug Figure 3 Tormach Inc. ©Tormach® 2014. All rights reserved. 1071 Uniek Drive, Waunakee, WI 53597 Specifications subject to change without notice. Phone: 608.849.8381 / Fax: 209.885.4534 TD10244_Lathe_Arm_Install_0216A...
- Page 4 7. Using the four 5 mm Socket Head Screws, attach the Keyboard Table to the Round Monitor Post (see Figure 5 and Figure 6). E-stop Holes Figure 5 Figure 6 Tormach Inc. ©Tormach® 2014. All rights reserved. 1071 Uniek Drive, Waunakee, WI 53597 Specifications subject to change without notice. Phone: 608.849.8381 / Fax: 209.885.4534 TD10244_Lathe_Arm_Install_0216A Page 4...
- Page 5 Square Tube Arm using two 4 mm Flat Head Screws (see Figure 8). 10. Attach the monitor (sold separately) to the monitor post assembly and route cables. NOTE: Tormach recommends all cable connections be wrapped in electrical tape. 11. Adjust monitor height and keyboard angle as needed.
